Surface Prep Grinders   >   26" Direct Drive Grinder


Hawk Floor Grinders & Slurry Vacs.

26" Grinder - Direct Drive

American Made        USA Engineered

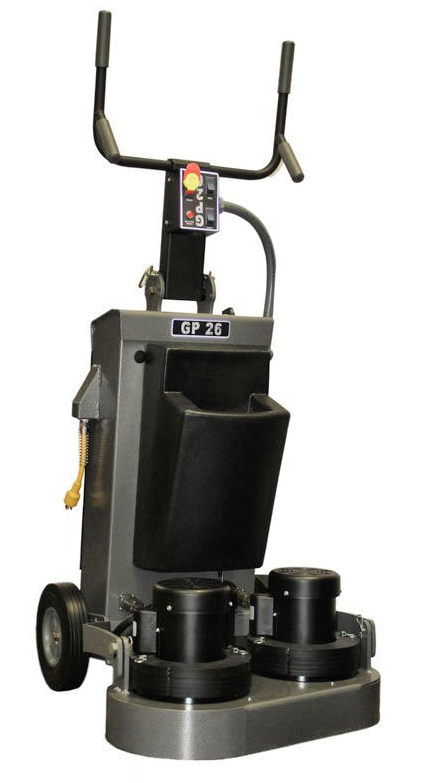

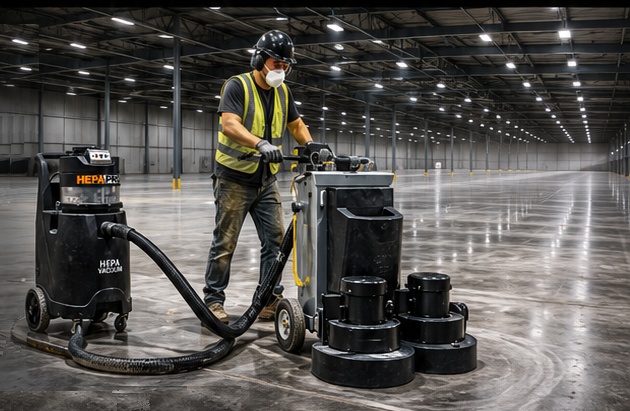

Hawk Concrete Floor Grinder, 26".



26" X-HD Built - High Torque Low RPM

--- Direct, Gear Drive Machine
  • Provides incredible results & low amp draw (7.45 Amp per motor) vs. a planetary grinder - operates from a 20 amp circuit
  • Applications:  Grind, Coating Removal, Scarify, Polish, Restore - Concrete and Stone Floors
--- Unsurpassed Results vs. a Planetary Grinder
  • Greater torque, superior versatility, production, performance, durability, minimal maintenance and never any belts to replace.



26" Floor Grinder
USA Made, Model #GP 26

GP 26 Action Video - Dry Grinding

GP 26 Action Video - Wet Grinding



$7,820.00

26" High Torque Floor Machine - Complete:  XHD Gears, Weight Plates, 13" Diamond Driver Plates (2), 2" OD Dust Port on Shroud, 2-44 LB Weight Kits, 6G Solution Tank 50' x 12/3 x 2-pc Locking Cord, 2-1.0" HP TEFC 115/230v 60 Hz Motor.

$140.25
Optional Light Kit - magnetic mount, USB LED Spotlight.  Greatly improves visibility of the floor while you grind, easy positioning and adjustment.



Description - Includes Diamond Driver Plates

  • 7.45 maximum amp draw / 120 volt motor (2)
  • USA Designed - high production, low fatigue grinder for concrete floor technicians
  • Cover 26" per pass running from 120 volt 20 amp circuit
  • USA Engineer Design - special AC 120-240V 50/60 Hz motor that converts in the field from 120 to 240 volt
  • Diamond Driver Plates (right)
    • Equipped with [2] 13" diamond driver plates
    • Diamond Driver Plates, 13" (2)3/8" Thick, HD, Iron Plates with 3-tab metal clutch plate
    • Plates accepts a complete assortment of diamonds, PCD's and carbide scrapers (see tooling, below)
  • Use for grinding, polishing, coating & sealer removal, concrete scarification and deep cleaning of concrete, natural stone and other hard surfaces
  • Engineered to finish within 1/2" of walls
  • Equipped with forward and reverse on the drivers to navigate irregular surfaces and obstacles with ease
  • 2-piece design allows the handle-carriage to be easily separated from the dual motor head - advantageous when the machine needs transported in to hard to reach locations such as basements or mezzanines.




Hawk GP26 Grinder - locking pins. Hawk GP26 Grinder - led lights. Hawk GP26 Grinder - edge finishing. Hawk GP26 Grinder - counter rotating heads. Hawk GP26 Grinder - diamond plate & diamonds. Hawk GP26 Grinder - locking power cord.

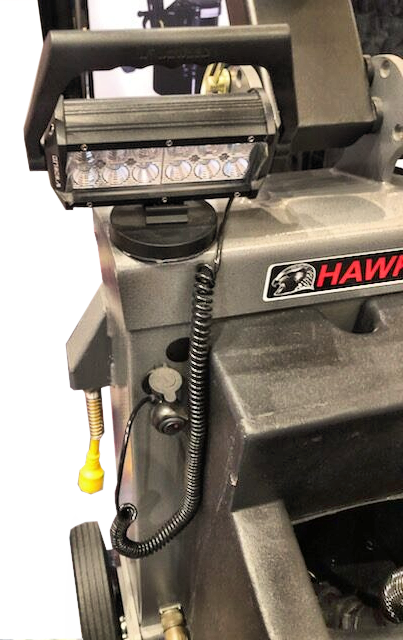

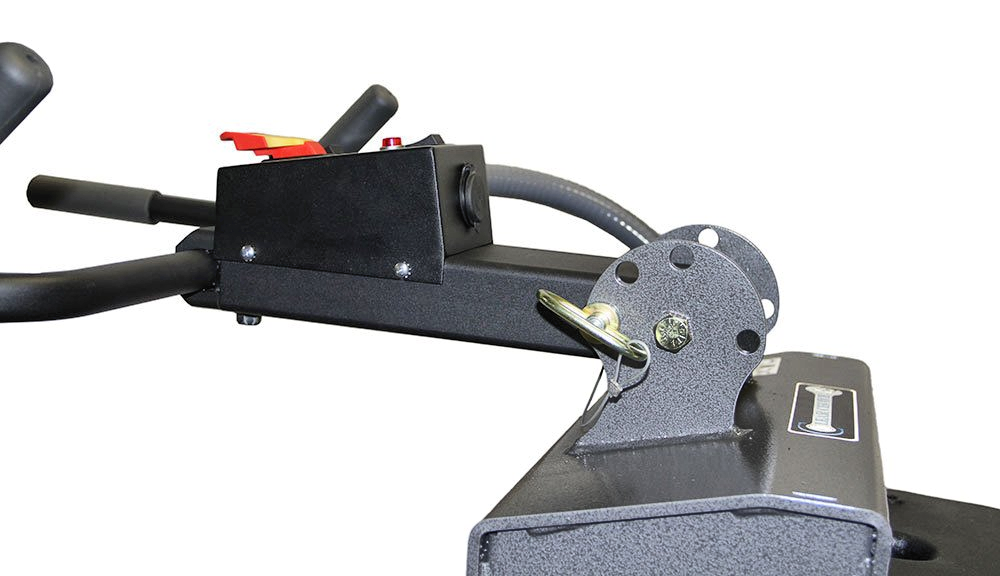

Carriage mounts with lock pins for easy removal. 129 Lumen
LED Lights
2-Sides, 2-Forward.

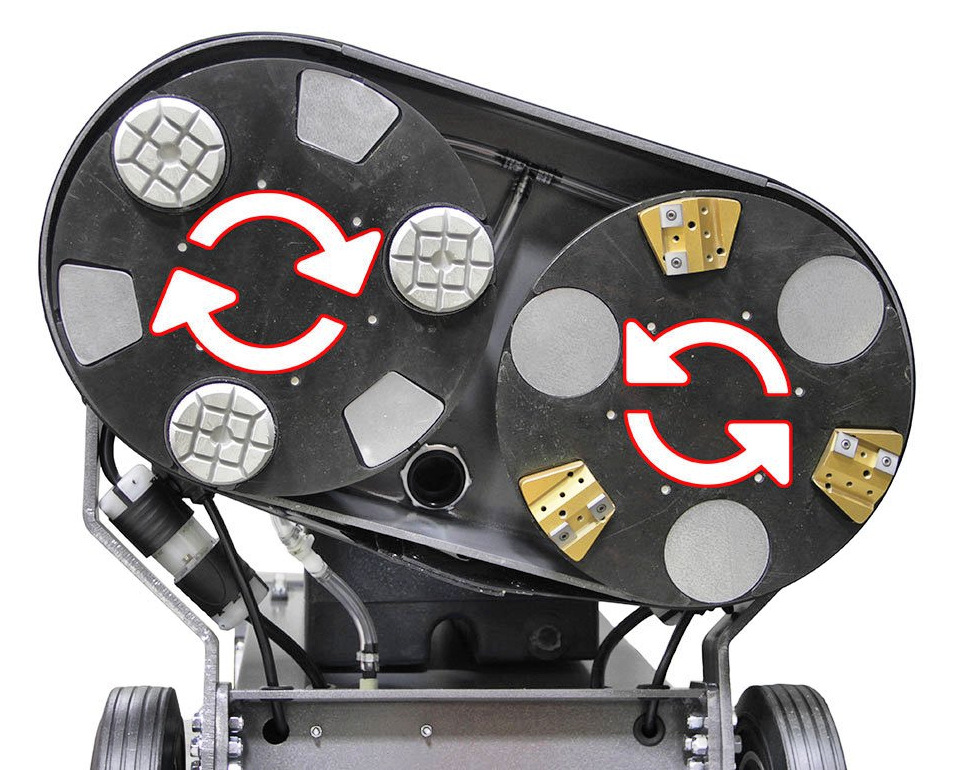

Finish to within 1/2" of walls. Counter-Rotating Tools / Drivers. Metal diamonds and resin pads mount easy to diamond driver. 50 ft 2-pc (12-3) SJTOW w/ Yellow Twist Lock Plug
(2) Diamond Grinder Plates, 13"
---  Included with GP 26 ---

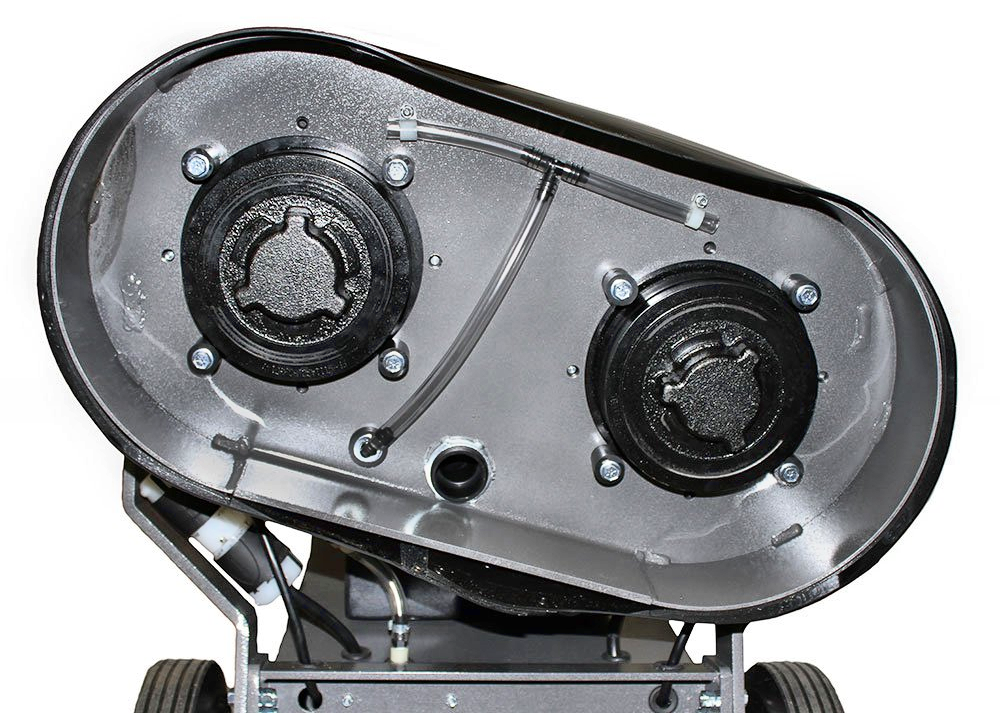

Hawk GP26 Grinder - diamond driver plate. Hawk GP26 Grinder - clutch plate. Hawk GP26 Grinder - diamond driver plate. Hawk GP26 Grinder - diamond driver plate.
100% USA Manufacturing
CNC Precision Made
Included insert blanks for recessed slots not being used. Plate accepts Metal Diamonds, PCD's, Resin Pads, Carbide Scrapers.








DIRECT DRIVE vs. PLANETARY MACHINE

DIRECT DRIVE - energy and efficiency is maximized while amp draw and friction loss is minimized vs. a planetary gearbox which spreads to 2, 3 and more heads.

Maintenance is simple and minimal.

PLANETARY DRIVE - design is used to increase RPM for polishing.  With the increase in RPM, Torque decreases.



Hawk GP26 Grinder - made in USA.USA Engineered Design

  • Dual Voltage:  120 or 240 Volt, easy to switch from 120 to 240 volt, 14.9 maximum amp draw @ 120 volt

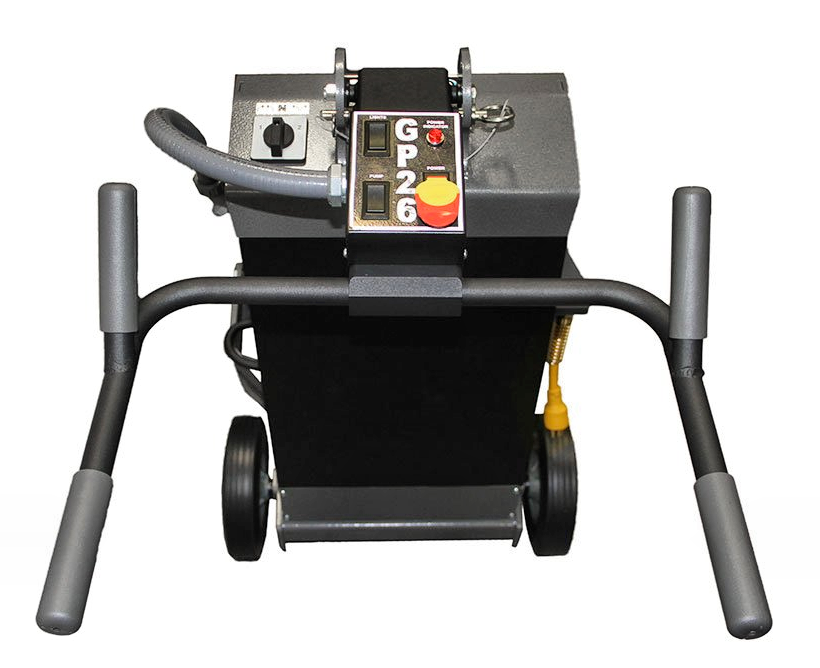

  • Control Center is front & center to the operator

  • Floating head - ensures the tooling grinds and scrapes flat and fast, follows the floor’s contour, prevents dig and ring marks
  • Powered by a TEFC (Totally Enclosed Fan Cooled) Motor - motor is protected from dust, debris, slurry
  • 11:1 Gear Ratio - high torque to drive scrapers & metal diamonds
  • 3-position handle adjustment for transport, operation and storage

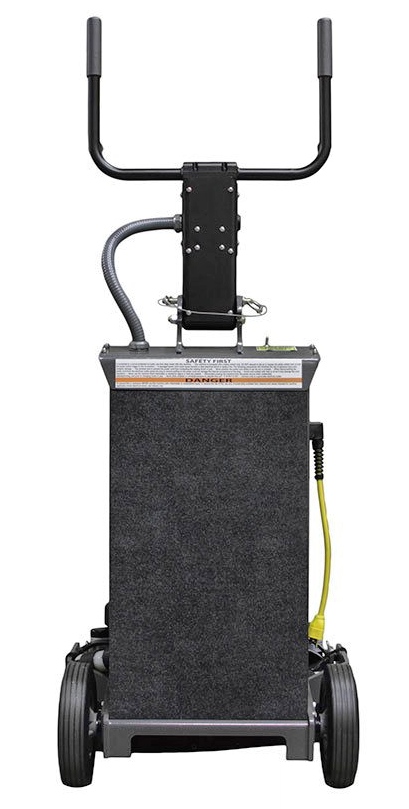

  • Detachable handle-carriage for transport

  • Dual AC-TEFC Motors with 11:1 XHD gears

  • Removable collar weights

  • Built in dust control with 2" exhaust port.





Specifications

Model GP 26
Machine Size 26"
Driver / Plate Size 13" x 2
Tools / Plate 3
RPM 165
Max Amp Draw 14.9
Weight 348 lbs.
Motors 1.0 HP, 180 frame TEFC Dual Capacitor AC
Power 120 - 240V
60 Hz power
Drive System Triple-XHD
11:1 Helical-Cut
Industrial Gears
Steel Coupler, Drive Shift Yes, fiberglass drive shafts wear and break often
Wheels, Ball Bearing 2" x 10", grooved non-marking
Vacuum Hose, Dust Port 2"
Disc Rotation Counter Rotating
Warranty 1-Year







Know Your Market  The type of equipment needed starts with understanding the project size and your target market [i.e. concrete polishing vs. coating removal and grinding.]

Concrete Grinders  Can be characterized as planetary or rotary.  Understanding the difference between the two technologies will enable you to choose the right grinder to smooth, prep, level or polish a concrete floor.

Planetary Gearbox
  • Gear design allows the grinder to move in a straight line across the floor with relative ease, which means greater flexibility and less struggle for operators

  • Best used on less aggressive jobs such as smoothing out a concrete floor or preparing smaller floors for an epoxy coating

  • Gearbox is spread to 2, 3, 4 and more heads, the design typically provides more torque during starting and then transferred to increased RPM speeds for polishing.

Summary:  Best for polishing.

Rotary - Direct Drive
Wheels-Down
  • Gear design is a direct connection from the motor to the grinding head which maximizes energy and efficiency while reducing amp draw and avoids friction loss and wear that occurs with an offset planetary gearbox

  • Maintenance is minimal and the purchase price is less because the planetary gearbox is eliminated.

  • Direct connection from the motor eliminates belts and pulleys that are in planetary grinders

  • Design optimizes the grinder's weight and rotational speed while maintaining high torque which a planetary grinder does not

  • Skilled and unskilled users can take advantage of the direct drive / wheels-down design to perform more intensive tasks such as removing heavy mastic or thick layers of paint from a concrete surface.

Summary:  Best for grinding, coating removal & polishing.







Diamond Driver Plates, 13" (2)Diamond Driver Plate
--- Two (2) 13" diamond driver plates (right) are included with the GP26.  Plates accept a complete assortment of tooling (shown below) to grind, remove coatings, polish and scarify concrete, granite and marble floors.

PLATE FEATURES:

  • Hawk GP26 Grinder - driver plate assembly.3/8" steel plate, powder-coated for corrosion resistance and easy cleaning

  • Damping isolators built-in to reduce vibrations and provide flex over high points and lippage

  • 3" round diamonds and standard size trapezoid tools are held securely in place by milled recesses and industrial magnets - tools are easy to change

  • Plate includes steel blanks, round and trapezoid, that fit in the unused recesses to prevent the unused openings from filling with debris

  • Equipped with metal 3-keyway clutch plate, the industry standard for rotary grinders and buffers - prevents bodily injury and damage to the plate and grinder

  • For additional information on the diamond drivers < click here >.

Diamond Tooling

  • The following diamonds install into the recessed and magnetic slots of the Diamond Driver Plate (above)

  • Each 13" driver plate holds 3 tools

  • For tool info and pricing click on the following links.

< Scarify, Grind, Removal > < Pads >
Metal Diamonds
- Grind -
PCD's
- Coating Removal -
Carbide Scrapers
- Scarify -
3" Round Pads
- Transitional / Polishing -
Std Size Trapezoid, Premium Quality - 2 Bar Std Size Trapezoid, Premium Quality - Coating Removal w/ Diamond Bar Carbide Scrapers - to scarify concrete. Semi-Metal & Resin Pads - concrete cleaning and polishing.
3-Hole M6 Trapezoids Semi-Metal or Resin
