Surface Prep   >   Sealant Removal   >   Universal Driver Plate.


Hawk Concrete Floor Grinders & Slurry Vacs.

Universal - Diamond Driver Plate

"One" Plate for Grinding, Coating Removal, Scarify, Polish



Hawk Diamond Driver Plate, 4-sizes.

Diamond Driver Plates
4-Sizes:  10", 13", 17", 20"


Hawk Diamond Driver Plate - clutch system. Hawk Diamond Driver Plate - accepts multiple diamond types.

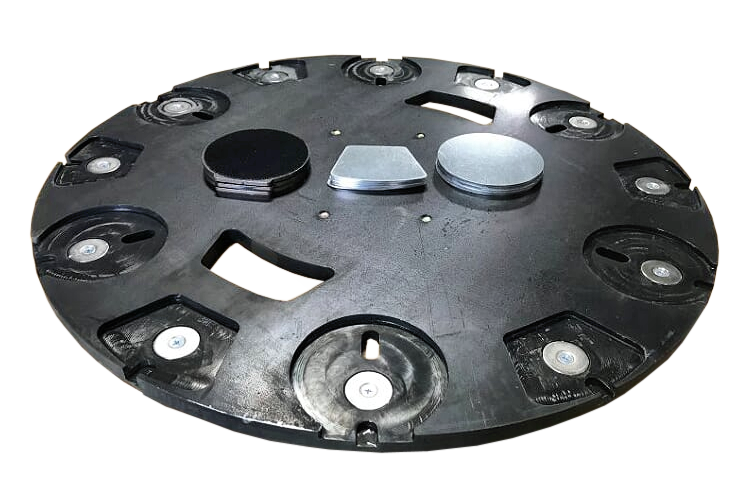

Hawk Diamond Driver Plate - recessed tooling slots. Hawk Diamond Driver Plate - recessed diamond tool slots.





Diamond Driver Plates - 4 Sizes

  • attaches to any "swing" machine or any other that uses the industry standard NP9200 clutch (shown below)

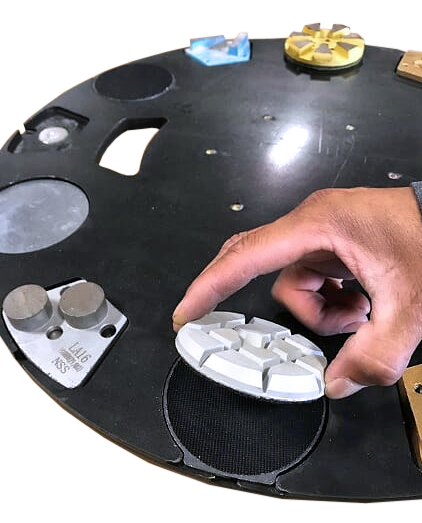

  • plates accept a complete assortment of diamond tools (shown below) to handle a variety of applications:  scrape, grind, scarify, remove coatings, polish and restore concrete, granite and marble.

$305.00
9-5/8" Diameter Plate, Fits 10" Floor Grinders
Tooling Slots:  (3) Round, Weight:  11 lbs.

$457.00
12-5/8" Diameter Plate, Fits 13" Floor Grinders
Tooling Slots:  (3) Round, (3) Trapezoid, Weight:  18 lbs.

$579.00
16-5/8" Diameter Plate, Fits 17" Floor Grinders
Tooling Slots:  (6) Round, (6) Trapezoid, Weight:  27 lbs.

$640.00
19-5/8" Diameter Plate, Fits 20" Floor Grinders
Tooling Slots:  (6) Round, (6) Trapezoid, Weight:  39 lbs.



Features
  • Hawk Diamond Driver Plate - clutch assembly.3/8" steel plate, powder-coated for corrosion resistance and easy cleaning
  • Damping isolators built-in to reduce vibrations and provide flex over high points and lippage
  • 3" round diamonds and standard size trapezoid tools
    • number of tooling slots for each plate are shown above
    • the diamond tools are held securely in place by milled recesses and industrial magnets
    • the magnets and weight of the grinder and plate provides incredible holding power, tools are easy to change

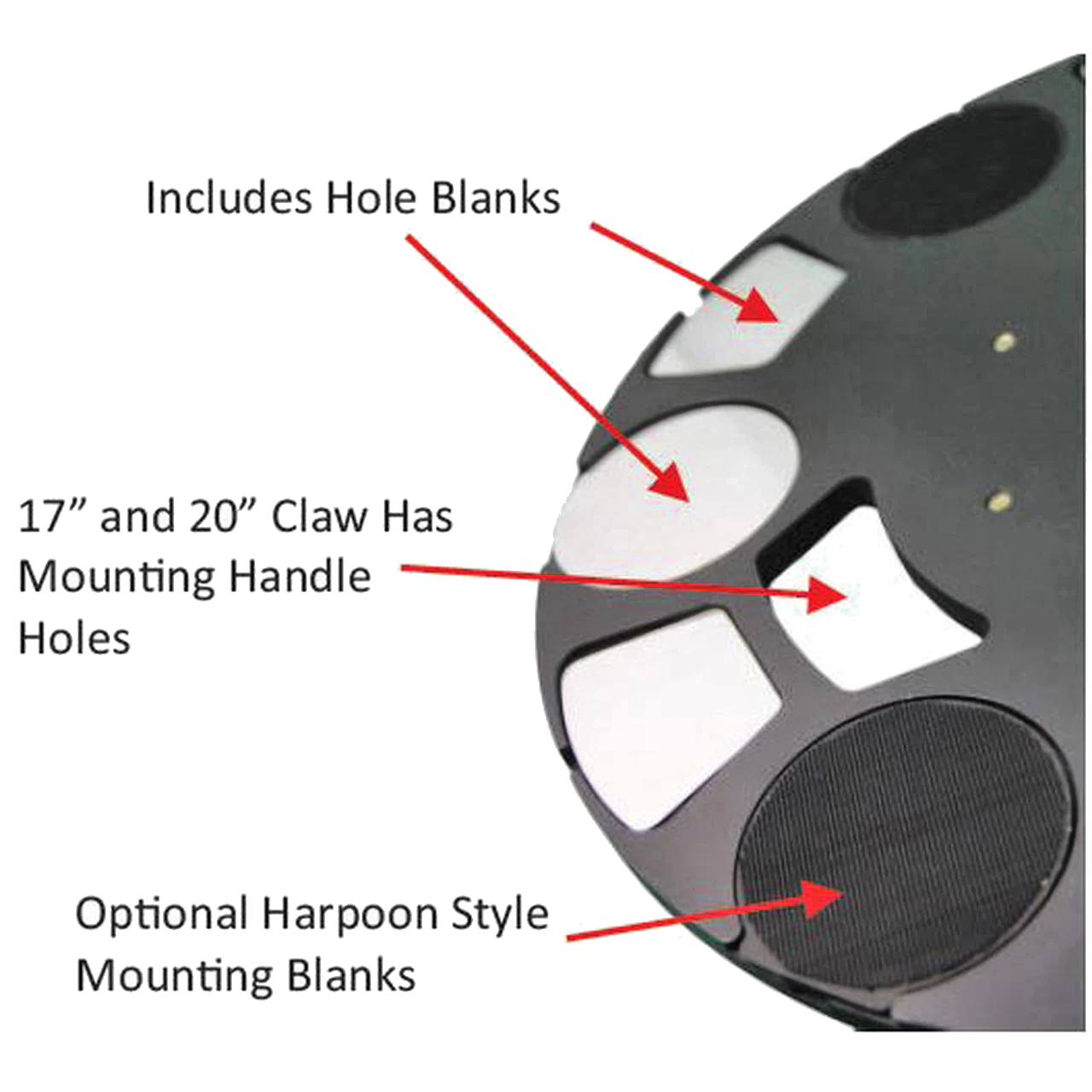

  • Steel Blanks - plates include 3" round and trapezoid steel blanks that fit into the unused recesses to prevent the unused slots from filling with debris
  • Metal Clutch Plate - secures the plate to rotary machines - prevents bodily injury and damage to the plate and grinder.






Tooling --- Scarify, Scrape, Grind, Remove Coatings, Polish, Restore
- The following diamond tools fit the Claw Plates.  Click on the following links for information.  -
< Scarify, Grind, Removal > < Pads >
Diamond Driver Plate Tooling - carbide scrapers to scarify. Diamond Driver Plate Tooling - diamonds for grinding. Diamond Driver Plate Tooling - arrow segments. Diamond Driver Plate Tooling - pcd + diamond for coating removal and grinding. Diamond Driver Plate Tooling - pcd for coating removal. Diamond Driver Plate Tooling - semi-metal & resin pads.
Carbide
Scraper
2-Bar
Diamond
 2-Round
Diamond
 2-PCD
Diamond Bar
 1-PCD  Transitional / Resin
Scarify  Concrete Grinding  Coating Removal Semi-Metal / Polishing
