Dust Extractors - Compact   >   Scaffold Vac:  2-Motor, 13 Gallon


USA Dust Guard - "Where the Pros shop"

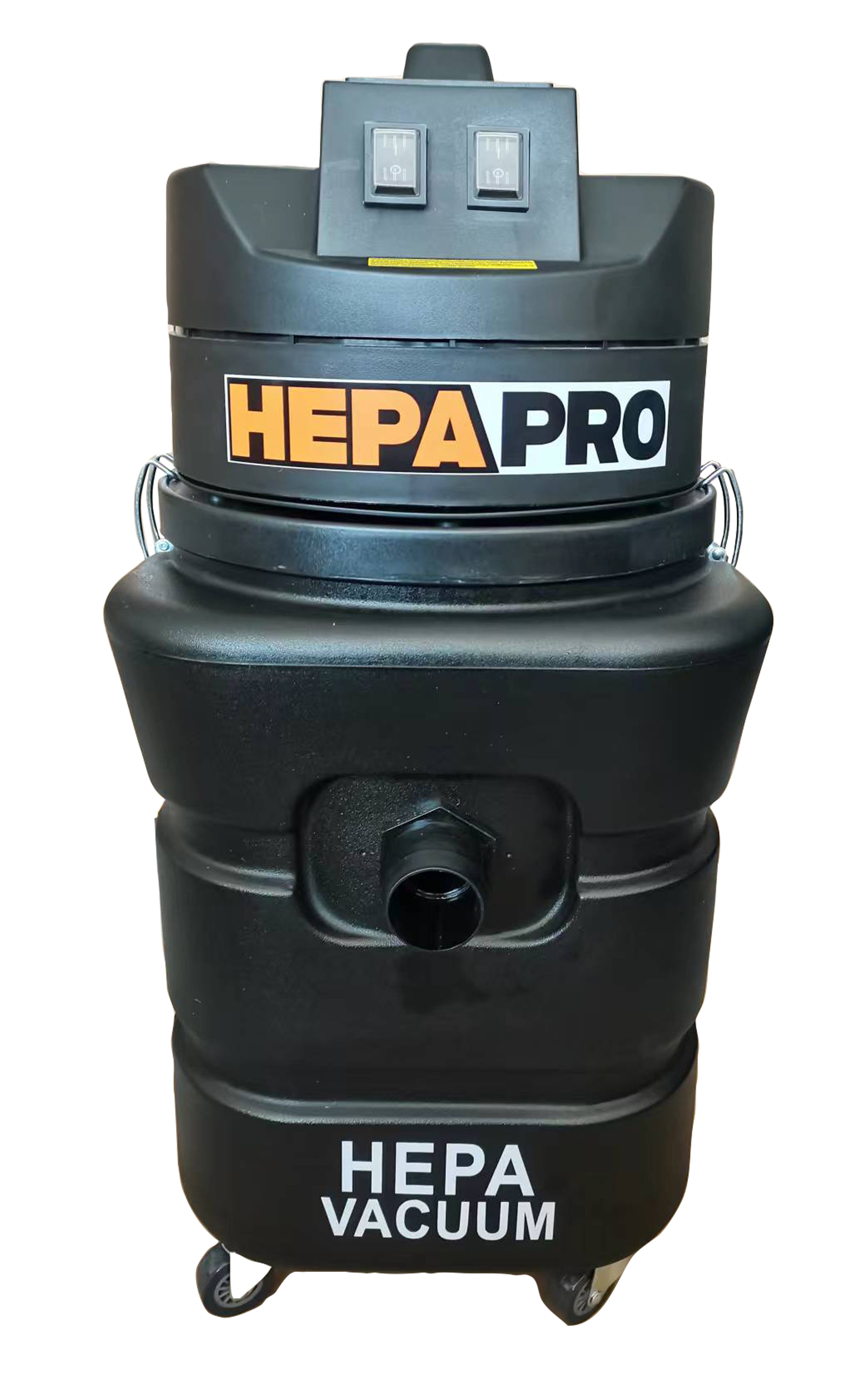

2-Motor HEPA Scaffold Vac

Compact, High Performance

A+ for Suction, Portability, Handling, Collection Yield

Price List
USA Scaffold Vacs - Brochure.



100% HEPA Certified
Approved for Asbestos, Bacteria
Lead Paint, Silica Dust

2-Motor Scaffold Vac:  300 CFM, 13-gallon tank.

2-Motor Scaffold Vac
13 Gal, 300 CFM, 100" H20

Base of 13-Gallon Tank.FITS IN TIGHT SPACES > > >
Only requires a 12" Pad

Equipped with Heavy Gauge 12/3 x 50' Power Cord
>  Eliminates needing an Extension Cord
>  Helps Prevent Circuits from Overheating.





$1,349.00

#13-250 Scaffold Vac:  13.0 Gallon Capacity, Natural Self-Cleaning, HEPA Certified - equipped with 2" x 10' Hose, 2" ID hose cuff, (5) Air Pulse Filter Collection Bags.

Free Shipping on any [6] Scaffold Vacs.



No filter mishaps or clogging with a Scaffold vac.Unstoppable Performance
--- No Filter Mishaps
  • If this happens to you (right), you need a Scaffold Vac
  • Whether you're using an expensive or inexpensive vacuum, you can't afford the collection bag to burst.

USA Dust Guard - Air Pulse Bags:  prevents filter loading, keeps HEPA filter clean!No Electronic Filter Cleaning
With the Air Pulse Filter Collection Bag installed (right):

  • Everything inside the tank stays clean:  HEPA filter, outside of the bag, no dust accumulates in the tank

  • Powerful suction maintained, filter maintenance is minimal.



Extreme Durability, Performance, Production

  • HD Polythene Tank:  rib molded construction for incredible durability - withstood a fork lift ramming it

  • HD Components:  Hose barb is used for the inlet port, extra strong rubber casters, metal tank clamps, US military grade Dacron filter cover protects the certified HEPA filter

  • 13-Gallon Capacity - holds 55 lbs. of silica dust without suction drop

  • Compact and lightweight size - A+ to use on scaffold without tripping a 20-amp circuit

  • Tank fills to capacity, to the inlet port, with no suction drop

  • Large Collection Yield with No Suction Drop:  work longer for improved production

  • No waste of time having to clean filters or having to empty the tank all to soon.

--- No Suction Drop with Natural Filter Cleaning

  • Powerful suction maintained without electronic filter cleaning
  • 5-Stage Natural Filter - features:
    • #1)  collection bag fills 100%:  our Air Pulse filter bag will not blind, burst or tear
    • #2)  all filters are kept clean to assure:
      • maintained suction performance
      • motors & circuits run cool - they'll not overheat
      • uninterrupted productivity & XL filter life.

Specifications

  • #13-250 Scaffold Vac

  • 2-Motor, 120V, 8.0 Amp (800 Watt) x 2

  • 13 Gallon, 300 CFM, 100" H20

  • 5-Stage HEPA Natural Filter

  • (5) Air Pulse Filter Collection Bag included - see right

  • Hose:  2.0" x 10' w/ 2" ID smooth cuff

  • Dimensions:  14.5" x 18.5" x 32"

  • Weight:  35.0 lbs.

  • 1-Year Warranty.

USA Dust Guard - Air Pulse Bags:  prevents filter loading, keeps HEPA filter clean!Air Pulse Filter Bags
--- (5) bags included with vac
--- superior collection bag for yields, versatility, production, durability.

BENEFITS & FEATURES:

  • bag fills 100% - use less bags, production improves, HEPA filters stay clean

  • high efficient, strong filter media - bag will not tear or prematurely burst

  • airflow maintained - no suction drop, motors & circuits don't overheat, circuits don't trip

  • toss a full bag in a dumpster and it still won't tear.

Performance You Can Count On
Most vacuums are purchased based on their CFM and other features but not on performance.
Scaffold Vacs are designed for Production, Guaranteed to Maintain It and are Economical to Use.

5-Stage "Fail-Safe" Natural Filter

Each Scaffold Vac is a true HEPA vacuum that is equipped with our 5-Stage "Fail-Safe" Natural Filter which is your assurance that dust will not leak from the vacuum and rated performance is maintained.

Features include:

  • tanks fill to 100% capacity

  • the collection bag - our Air Pulse Bag - fills to 100% capacity:

    • the bag's superior strength prevents it from tearing or accidentally bursting

    • with larger collection yields less bags are used and the HEPA filter is kept clean

  • powerful suction is maintained

  • circuits do not overheat

  • less visible dust is seen so OSHA is kept away.



Advantages vs. the Competition
  • Scaffold Vac - Filter & tank stay clean. Filter Protection Cover - Washable
    • Keeps the HEPA filter clean
    • Air Pulse Bags contain over 99% of the extracted dust
    • The small amount of dust that does escape is kept from compromising the certified HEPA filter by the Filter Protection Cover
  • No Electronics
    • No electronic filter cleaning in a Scaffold Vac.Scaffold Vacs use NO electronics to maintain suction and keep the HEPA filter clean
    • Competitive dust extractors use electronics to prevent filter blinding but filter bags are used
      • FACT:  the volume of dust being extracted is greater than the self-cleaning ability of the electronics.  Out of necessity - for production, filter bags are used - money is wasted on the electronics
  • Our money is put into durable and precisely sized components that prevents filter blinding
  • Net Result:
    • filter does not blind
    • motors and circuit does not run hot
    • tank fills to capacity
    • CFM is maintained
    • no interruptions to clean the filter
    • productivity and dust control improves.
Scaffold HEPA Vacuums

Features

  • Capacity:  13.0 Gallon
    Tank holds 55 lbs of powder or 5 hours of tuck pointing *

  • Power tool outlet handles a 15A grinder
    No need for a second power cord

  • Equipped with 12/3 x 50' power cord
    No need for an extension cord

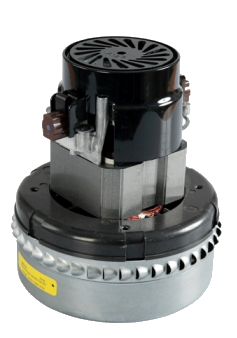

  • Motor:  120 volt, 800 Watt x 2

  • Performance:  300 CFM, 100" H20

  • Filter System - HEPA Critical Dust Certified

    • "Fail Safe" Filter System for Scaffold Vacs."Fail-Safe" 5-Stage Natural Filter (right) plus the collection bag (shown below)

    • the [4] downstream filters (shown right) protect the HEPA filter, assuring it of incredible long life

    • in the event of failure by one of the [4] filters, the HEPA filter is the final filter and certified to prevent the discharge of dangerous dust in the air

  • Lift Handle & Steel Clamps - supports lifting heavy yields, HEPA certified to secure and prevent dust exhaust from leaking from the tank



Benefits

  • Tank fills to their inlet port without suction drop

  • HEPA filter is not exposed to the incoming debris
    - incredible long life is guaranteed

  • Powerful suction maintained
    - preventing suction drop by just 10% decreases motor wear & power consumption (i.e. tripped breakers) by 33%

  • Large filter surface area plus filter surface protection
    - filter surface protection prevents dust from impregnating itself into the pleats of a cartridge filter which instantly causes suction drop

  • Excessive power consumption - PREVENTED
    - when the filter stays clean, visible dust isn't noticed, motors and circuits run cool, production and silica dust compliance is maximized, circuits don't trip

  • Extreme & Diverse Applications
    - our USA Filter System withstands the most abusive applications including 600F temperatures
    - besides vacuuming volumes of ultra fine powder without suction drop while keep the inside of the tank clean, the 5-stage filter system is ideally suitable to vacuum hot mastic during coating removal projects

  • Self-Clean, Stay-Clean --- USA Designed Filter SystemProtector Filter Bag (washable) - covers and protects the HEPA filter.

  • Molded motor head with noise suppression - ideal for use in public and sound sensitive areas

  • Barb Hose Inlet:  HD, Simple - fully secures the hose, far superior than button-lock inlets, use either a 1-1/2" or 2" hose
  • High Density, Rotational-Molded Polyethylene Tank:  resists impacts, supports heavy debris, easy to lift, handle and transport
  • HD Swivel Casters, Rubber:  superior mobility even when the tank is full of dust or water (wet/dry use with available cartridge filter)
  • 1-Year Warranty plus easy access to motor head for economical motor and switch replacement.



* Based on NIOSH Tuck Pointing Study of grinding mortar from brick joints:  1/4" wide mortar joints x 1/2" deep.



The Scaffold Vac Story
OSHA Silica Dust Rule - Vacuum Compliant.After more than 20 years since being approached by the BAC Masonry Union to "find a way to cut without the dust," two things still bothered me.
  1. Cartridge filters in vacuum cleaners were completely exposed to the incoming debris and,
  2. Filter bags are used in vacuums even though they're equipped with electronic to purge the filters so the rated CFM is maintained.

Then, a few years ago, I began working with one of America's most respected vacuum producer's to develop a new kind of filter.  It's a natural filter that doesn't use electronics to prevent suction drop and it protects the HEPA filter.

It consists of 5-stages that includes a washable filter that protects the HEPA filter.  So there you have it.  A true, HEPA certified, self-cleaning vacuum cleaner that maintains it's rated CFM naturally.

Thanks for choosing it.  Ted, Bob & Kyu.

USA Engineered
Scaffold Vacs have been specifically designed for use on scaffold or any place where space and electrical power are limited.

Benefits of Not Using an Electronic Filter Cleaning System:

  • the motor(s) and circuit is prevented from running hot

  • filter blinding is eliminated - suction is maintained, tank fills to capacity, HEPA cartridge filter stays clean

End Result:  long hours of production - Air Pulse Filter Bag Fills 100% plus the HEPA filter stays clean!



All Components Work Together

  • Motor, Tank, Inlet & Hose Size

  • Gauge of power cord (12/3 x 50')

  • 5-Stage HEPA Filter - including the washable filter protection cover.

Amazing Results

  • Suction Maintained without Electronic Pulse Cleaning

  • 20A Circuits Don't Trip even when using a 15A Grinder

  • Productivity Increases from less downtime.

Air Pulse Filter Collection Bag

  • Filters and tank stays clean with a scaffold vac.keeps everything clean

  • prevents volumes of powder from increasing Amp draw

  • provides for easy, clean, safe handling and disposal of debris.





OSHA Silica Dust Rule - Vacuum Compliant.Fully Certified HEPA
Dust Extractor
Meets or exceeds all requirements of EPA RRP guidelines.


  • HEPA Critical Dust Certified - complete vacuum is HEPA certified not just the filter

  • Powerful 2-horsepower motors and individually tested and certified HEPA filter can be used for safe and efficient pick-up of hazardous materials including asbestos, lead, mold and crystalline silica

  • OSHA Silica Dust Compliant with Internal Filter Cleaning

    • reverse pulse filter clean with true total seal suction removes any dust from the protector filter

    • dust (if any) that is on the filter it is blasted off

    • vacuum can be used with filter collection Air Pulse Bags

    • Air Pulse Bags are the first filter in the "Fail-Safe" 5-Stage Filter System.

    HEPA Certified Applications:

    • Excels in suction power, maintained suction and small size where other certified HEPA / RRP vacuums do not

    • HEPA filter includes certification:  tested to meet EPA, OSHA, DOD standards

    • Vacuum is fully sealed:  all operating air is expelled though the HEPA filter which is the last filter in the "Fail-Safe" 5-Stage Natural Filter

    • Extraordinary Long HEPA Filter Life:  4-downstream filters protect the HEPA filter from direct debris contamination.
