Crack Chasing V-Blades | Concrete Crack Repair

CRACK CHASING
V-BLADES
FOLLOW CONCRETE CRACKS.
CREATE CONTROLLED V-GROOVES.
PREPARE FOR REPAIR.

A specialty diamond blade designed to follow existing cracks in concrete and transform them into a clean, V-shaped groove for repair, restoration- or decorative enhancement.

Supreme Grade

Laser Welded

V-Shaped Diamond Segments

Wet or Dry Cutting

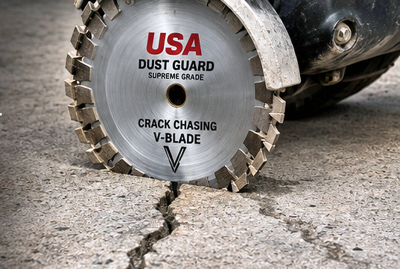

USA Dust Guard - V-Blades

1. What is a Crack Chasing V-Blade?

A crack chasing V-blade is a specialty diamond blade designed specifically to follow existing cracks in concrete and enlarge them into a controlled V-shaped groove.

Rather than attempting to repair a narrow, irregular crack as it exists, the V-blade allows the contractor to open and reshape the crack into a defined channel that can be properly prepared for repair.

THE V-SHAPE IS THE DIFFERENCE.

The blade's V-shaped diamond configuration naturally follows the path of an existing crack while producing a wider opening at the surface and a narrower point at the bottom. This creates a controlled groove rather than an irregular crack.

THE RESULT:
	Follows the natural path of the crack
	Opens the crack into a defined V-shape groove
	Removes loose and deteriorated concrete along the crack
	Creates a more accessible surface for repair materials
	Products a consistent, professional looking repair channel.

2. Why Do Concrete Cracks Need To Be Repaired?
MANY CONTRACTORS DON'T REALIZE WHY THESE BLADES EXISTS.

A concrete crack is rarely a perfectly straight, uniform opening. As concrete moves, settles, shrinks or experiences repeated loading, cracks can develop into irregular paths with loose or damaged concrete along their edges.

Simply filling the crack does not necessarily address the damaged material surrounding it.

CRACK CHASING CREATES A CONTROLLED REPAIR CHANNEL.

The V-blade follows the existing crack and removes damaged material, transforming an irregular crack into a defined V-shaped groove.

That gives the contractor a surface that is easier to clean, prepare and fill.


THINK OF IT AS TURNING AN UNCONTROLLED CRACK INTO A CONTROLLED REPAIR.
BEFORE	DURING	AFTER

Existing Concrete Crack	V-Blade Follows the Crack	Controlled V-Groove Ready for Repair

3. Why A V-Groove?

A
The geometry of the blade is what makes crack chasing different from ordinary concrete cutting.


Conventional Blade 90° Channel	V-Blade V-Groove

V-Blade = V-Groove
Follows The crack Opens The Crack
Creates A Controlled Repair Channel

4. Crack Chasing Vs. Joint Widening
TWO SPECIALTY BLADES. TWO DIFFERENT CUTTING GEOMETRIES.

A

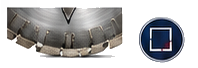

CRACK CHASING V-BLADE	JOINT WIDENING BLADE

V-SHAPED BLADE	STRAIGHT-EDGE BLADE
Follows existing cracks and transforms them into a V-SHAPED GROOVE for repair or decorative enhancement.	Follows existing control or expansion joints and them into a 90° JOINT for repair, resealing or restoration.

5. Not Just for Repair---
V-Grooves Can Be Decorative
A

Crack chasing is primarily associated with concrete repair, but the V-shaped cut can also be intentionally created for aesthetic purposes.

In decorative concrete and architectural concrete work, grooves can be used to enhance the appearance of an otherwise plain slab.

THE RESULT:
	Create a deliberate decorative line
	Enhance an existing joint
	Give a slab a more finished appearance
	Create visual definition between section of concrete
	Transform an ordinary joint into an intentional design element.

The same geometry that solves a repair problem can also create a design feature.

6. Crack Chasing V-Blades Are Used For:

A
	Concrete Crack Repair Follow existing cracks and prepare them for repair.	Concrete Restoration Remove loose or deteriorated material surrounding existing cracks.
	Joints & Groove Enhancement Reshape existing joints or create a more defined groove.	Parking garages & Structural Concrete Prepare cracked concrete surfaces for restoration works.

	Decorative Concrete Create intentional V-shaped grooves as part of a decorative design.	Tilt-Up & Commercial Concrete Follow and prepare cracks in large concrete panels and slabs.

7. Supreme Grade. Built For The Job.
A


Laser-Welded Construction	V-Shaped Diamond Configuration	Supreme Grade Diamond	Wet or Dry Cutting	Multiple Diamonds, Bonds, Widths
Designed for demanding concrete cutting applications.	The blade geometry is specifically designed to follow cracks and create a v-groove	Designed for performance and extended blade life.	Suitable for different jobsite conditions.	Available in several sizes to accommodate different equipment and applications, including asphalt.

8. Need A Different Size, Width or
Configuration?
A
WE MAKE CUSTOM DIAMOND BLADES.
A
Crack chasing is only one example of what can be accomplished with custom diamond tooling. We Make Custom Blades

USA Dust Guard offers specialty diamond blades manufactured for specific applications, including custom diameters, widths, arbors, bonds and configurations.

Have A Specialized Cutting Problem?
A
Talk To Us About The Blade.

9. Crack Chasing V-Blades --- Pricing
CHOOSE YOUR DIAMETER, WIDTH and ARBOR

BLADE DIAMETER	THICKNESS	ARBOR	DIAMOND HEIGHT	PART NUMBER	PRICE	ORDER
4.5"	.250	7/8-5/8"	12.7mm	CC4525C	$76.00
4.5"	.375	7/8-5/8"	12.7mm	166497	$100.00
5"	.250	7/8-5/8"	12.7mm	CC0525C	$92.00
5"	.375	7/8-5/8"	12.7mm	406626	$105.00
5"	.500	7/8-5/8"	12.7mm	1075695	$175.00
6"	.250	7/8-5/8"	12.7mm	CC0625C	$120.00
6"	.375	7/8-5/8"	12.7mm	CC0737C	$164.00
7"	.250	7/8-5/8"	12.7mm	CC0725C	$135.00
7"	.375	7/8-5/8"	12.7mm	CC0737C	$170.00
8"	.250	7/8-5/8"	12.7mm	CC0825C	$152.00
8"	.250	1"-20mm w Drive Hole	12.7mm	CC0825E	$152.00
8"	.375	7/8-5/8"	12.7mm	CC0837C	$195.00
8"	.375	1"-20mm w Drive Hole	10mm	CC0837E	$195.00
8"	.500	1"-20mm w Drive Hole	10mm	CC0850E	$269.00
8"	.750	1"-20mm w Drive Hole	10mm	CC0875E	$989.00
12"	.750	1"-20mm w Drive Hole	10mm	616805	$1,529.00
14"	.750	1"-20mm w Drive Hole	10mm	CC1475E	$1,798.00
Other sizes, widths, arbors and bonds available --- Contact us for custom quotes.

9
R
A

	V-Groove For Crack Chasing & Decorative Enhancement

	90° Groove For Joint Widening & Joint Restoration
