Kut Rite 20" Planetary Grinder / Polisher, Made in USA.

Versatile, easy to use and transport, adjustable and folding handles, complete machine disassembly. While designed to address the residential market concerning handling and power consumption, the Conquer 20SS will tackle all the flooring applications including small and large projects. Complete with variable speed, forward and reverse plate operation and 1/8" edging along the walls.

Conquer Grinders - 100% American Made and backed by a Full 2-Year Parts and Labor Warranty.

Counter Top

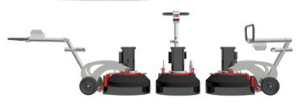

Handle Option

Bowl
Disassembly

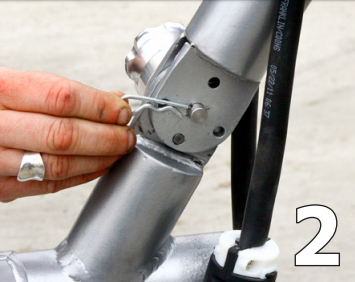

Pivot Handle

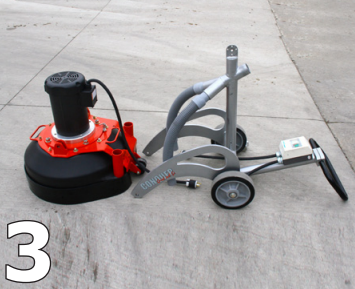

3-Piece
Separation

Easy
Transportation

KutRite Logo. Engineered in Detroit. Made in America.

Manufacturing Surface Preparation Equipment since 1947 ---
Listening and providing real world solutions. Aspiring to Detroit's "can-do" spirit.

Kut-Rite Logo.

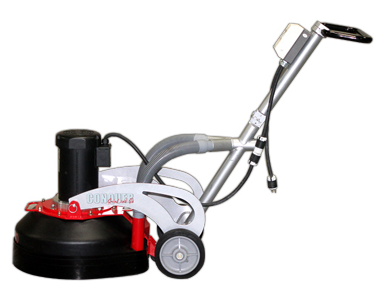

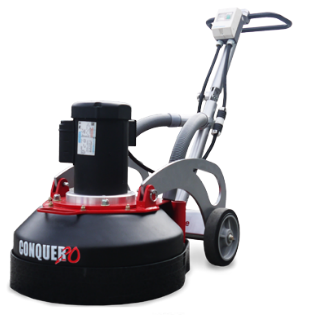

CONQUER 20SS Planetary Grinder / Polisher

Design targets the Residential Floor Polishing & Preparation Market

CONQUER 20SS

• Working width: 20"
• Edging: 1/8" From the wall
• Plates: (3), Magnetic
• Plate RPM: 110 - 1000, forward & reverse
• Power: 1.5 HP, 120 Volt Motor
• Dimensions: 54.5"L x 20.5"W x 41"H
• Weight: 210 lbs.
• Water Tank: 3.0 Gallon
• Diamond Tooling: Magnetic Trapezoid & Traditional Bolt-On Tooling, includes 3" Velcro adaptors for resins pads
• Compact, Portable - Specifically designed to address the unique needs of the residential concrete floor polishing market
• Warranty: 2 Years, Labor & Parts.

$6,495.00
CONQUER 20SS - 20" Planetary 3-Head Grinder/Polisher, 120 volt, 19.0 FLA (Full Load Amperage Draw)

Combines the versatility of the larger 240 Volt Conquer 20VS in a compact, 110 volt model loaded with "residential features." Solid construction, extremely portable, maneuverable and versatile. Ideal for grinding and polishing in homes, offices, hotel rooms, garage floors, basements. The Conquer 20SS is easy and convenient to transport and use. Uses the standard magnetic 3-hole trapezoids or traditional bolt-on style diamonds, same as the larger Conquer models.

Benefits

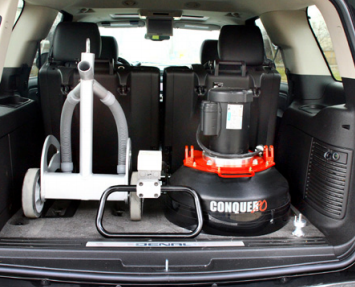

Folding and separation parts provides for easy transportation (see photos, below)
Wheel system is designed for easy handling up and down stairs
Unique handle with a pivot break point midway up the shaft allows for “in operation” adjustments in tight positions, such as closets
Follows the surface, self adjusting and gives a tight seal for an efficient dust management
Provides the best of both worlds by being able to run in both rotary only and planetary mode. Used in rotary only as an aggressive grinding machine and as a maintenance swing-style machine using the impregnated diamond pads for cleaning and polishing; in counter rotating planetary mode, for high quality, productivity polishing.
FWD/REV and VS plate operation. Variable speed gives the operator more options to speed up or slow down on the tools. This is very beneficial considering that all concrete surfaces are different. With VS you yield faster production and a better finished product when polishing.
Made from USA steel, Detroit CNC Machining and a laser cut frame that all adds up to a superior, industrial strength machine in a very versatile size
Electrical components, completely sealed from concrete dust and slurry contamination, are secured in their own "well ventilated" air space which further contributes to each Conquer's outstanding durability and reliability reputation
Connects to the Kut-Rite RF21 Dust Extractor for dust control
Provides a compact, easy to use "Can Do" machine for all the applications: coating removal, concrete grinding, concrete polishing, sanding, maintenance
Planetary drive ensures a flatter surface
Single phase power for availability and easy access to industrial and residential applications
Good for both wet and dry uses
High production rates for rapid removal of tough heavy-duty surfaces and coatings, variable speed tooling control further enhances this machine's outstanding floor polishing capabilities
Converts to a counter-top grinding and polishing machine with available handle!

Additional Features & Benefits

The following unique Conquer features offer the operator extremely fast repair and tool removal and insertion. Fewer delays add up to lower labor costs. Better quality means more revenue. And remember, these machines are all American designed and American made in the Motor City.

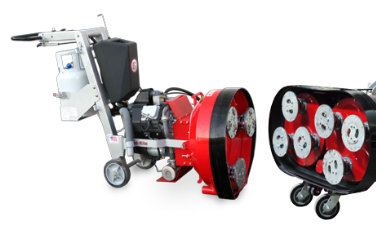

Tilt-Back Feature - Easy and safe access to tooling, servicing and belt replacement. Many grinding and polishing machines are large, heavy units. Too many machines are difficult to work on and often call for two or more people to perform tooling changes and repairs.

With the Conquer Series, the Tilt-Back Bowl design allows the operator to safely and easily perform the service and required tool changes with using additional labor and running up job costs.

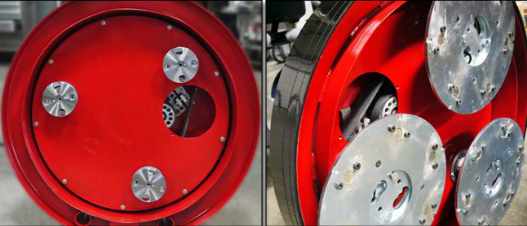

Belt Drive System - Belts are changed in minutes not hours! The belt drive system on a Conquer aims for maximum torque. The Serpentine belt couples with the exclusive horseshoe tensioner, providing up to 70 percent contact with the drive pulley and more than 50 percent contact with the spindle pulleys. This results in non-stop power and torque. In addition, the belt can be easily removed and replaced in a matter of minutes, not hours.

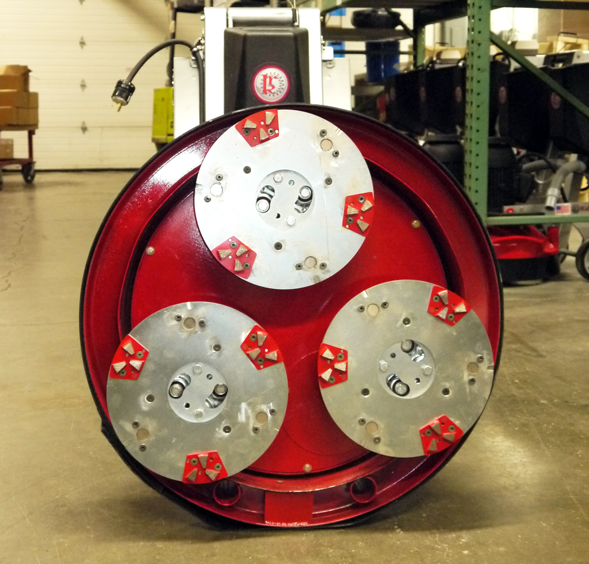

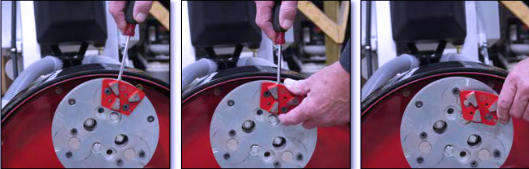

Quick Disconnect (QD) Tooling - The magnetic QD Tooling feature of the Conquer series has enabled Kut-Rite to redefine how diamond tools are mounted. The QD system incorporates two locating pins for precise tool positioning. Powerful neodymium rare earth "super magnets" hold the tools in place.

The pins and the magnets combine to produce a tool system that allows for quick, precise placing of tools and smooth running. The system holds power that virtually eliminates "tool kick out" during operation. Additionally, the magnetic plates also accept traditional 3-hole trapezoids and 3" bolt-on pucks.

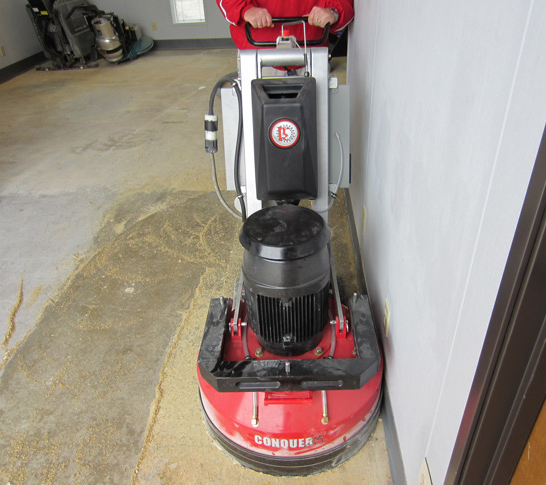

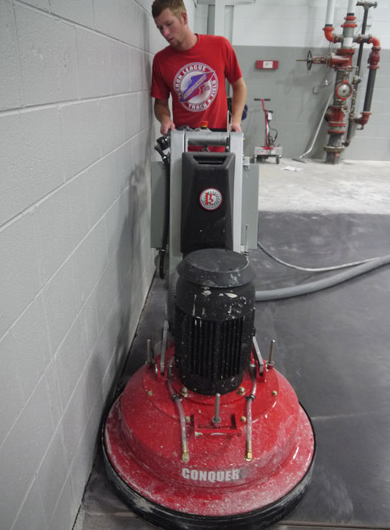

Best Edge in the Business - There might be nothing more frustrating in the concrete grinding and polishing business than dealing with "the edges." Many machines are capable of doing the yeoman's work - up until faced with edge work. The entire line of Conquer machines finishes floors just an 1/8-inch from the walls!
