Surface Prep Grinders  >   PG 400 Gasoline Grinder.


Husqvarna Concrete Grinders.

Surface Preparation Machines

Husqvarna PG 450 Surface Prep Machine.





Husqvarna Grinder PG400, 16".

PG 400 Direct Drive Grinder
Gasoline, 16" Grinding Width

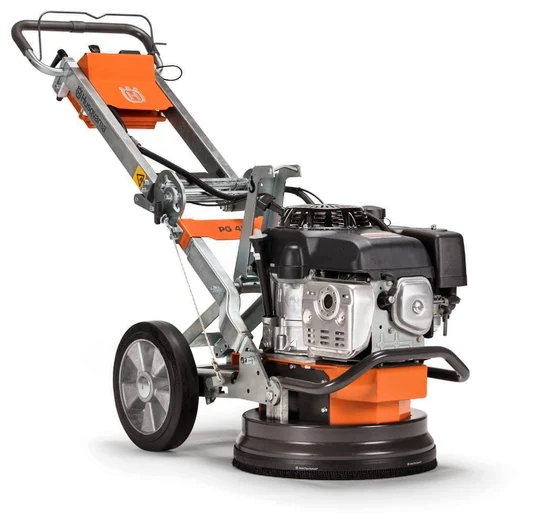

Husqvarna PG 400 Direct Drive Grinder, 16"



$xx.xx            Gasoline, Item No.  967676301



Husqvarna Grinder PG400 - gasoline, front view. Husqvarna PG400 - plate view. Husqvarna PG400 - side view. Husqvarna PG400 - side view. Husqvarna PG400 - rear view.
Husqvarna PG400 - compact storage & transport. Husqvarna PG400 - controls. Husqvarna PG400 Concrete Grinder. Husqvarna PG400 - dust shield. Husqvarna PG400 - top view.
 Applications:
  • Productive single-plate, direct drive gas floor grinder to a wide range of outdoor applications including:  coating removal, concrete grinding and polishing

  • Efficiently grinds lippage on concrete slaps, trip hazards, removal of paint, epoxy and coatings from concrete floors

  • 16" grinding width it is excellent for both small and hard to get to areas, as well as larger surfaces

Benefits:

  • Flip-down operator control handle ensures the operator has their hands safely on the handle of the grinder when operating the machine

  • Durable steel bumper protect the front of the gearbox and engine

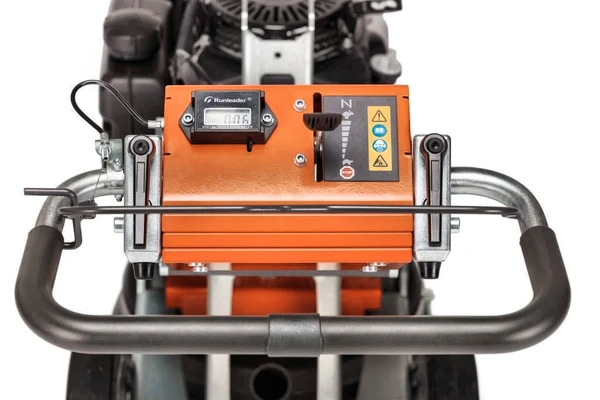

  • User-friendly control panel with easy-to-use throttle control

  • Self-adjusting floating cover with brush skirt follows the surface of the floor, enabling a tight seal to prevent dust from escaping and entering the work area

  • Chassis / Frame can be separated from the grinding head in less than 30 seconds for easy transport

  • Variable speed to match your application and provide optimal effectiveness and life from the diamond tools

  • Time-saving tool change with Redi Lock diamond tooling.



What's Included?  Redi Lock diamond holder disc and dust skirt.



 Technical Specifications

PG 400 - Gasoline
Power, HP 10.2
Power Supply Honda GXV390, air-cooled 4-stroke OHV gas engine, vertical shaft, cast iron sleeve
Fuel Tank Volume, Gal .55
Fuel Tank Capacity, Gal .3
Engine Oil Capacity, Gal .3
Grinding Width, Inch 16
Grinding Disc, In 16
Grinding Disc Segment Capacity 9
Grinding Pressure Total, Lbs 152
Grinding Disc Speed, RPM 400 - 1125
Direction of Rotation (as viewed from operator's position) Clockwise
Dimensions (L x W x H), inches 35.4 x 19 x 28
Dust Port Size, inches 2
Weight, lbs. 308
Recommended Dust Extractor Size, CFM 350+





Related Products

Dust Extractors Water Recovery Diamonds
2-Motor 45-Gallon Barrel Vac:  235 CFM, 140" H20 Pearl - Reverse Pulse Dust Extractors, 3 Models 20 Gallon Concrete Slurry / Squeegee Vacuum 29 & 55 Gallon Concrete Slurry Vacuums with Optional Pump-Out Semi-Metal & Resin Polishing Pads. Husqvarna Redi Lock - metal diamonds.
235 - 315 CFM 245 - 330 CFM Concrete Slurry / Sludge Vac Transitional / Polishing Grinding
