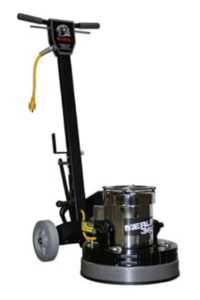

Hawk Merlin 360° Severe Duty
Floor Grinders, 17" & 20"
-- USA Made --

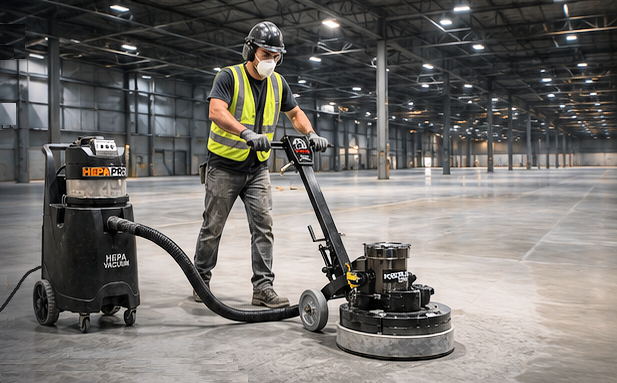

Grinder in Action Video

17" & 20" - High Torque Low RPM

1. Direct Drive Gears ( vs. planetary belt-drive):

   • Direct connection from the motor to the grinding head:

     • maximizes energy and efficiency

     • reduces amp draw by avoiding friction loss, wear and ongoing maintenance vs. planetary belt-drive grinders

   • Maintenance is minimal if any vs. constant maintenance and expensive repair cost with a planetary grinder

   • Direct drive connection from the motor to the drive plate eliminates belts and pulleys from breaking (i.e. used in a planetary grinder)

   • Direct- gear drive design optimizes the grinder's weight and rotational speed

   • APPLICATIONS:  HD, High Torque Concrete Grinding, Coating Removal, Scarify Concrete, Polishing, Maintenance.

2. Wheels-Down Machine ( vs. Wheels-Up "Swing Machine"):

   • With a wheels-down machine, it takes minutes to master

   • A wheels-up or swing machine, they're harder to control, requires a long learning curve, often taking days to master.

Overview - both sizes:

• 11:1 Gear Ratio with Triple Extra HD, Helical-Cut Industrial Gears - provides the high torque to drive scrapers & metal diamonds with minimal amp draw
• Wheels-Down Machine - productivity improves 100% vs. using a wheels-up or so-called swing machine.  With a wheels-up (swing machine) you are constantly fighting against its swing movement especially during high torque grinding and coating removal projects;  additionally, there’s a long learning curve to master how to use or control a swing machine
• Powered by a TEFC (Totally Enclosed Fan Cooled) Motor - motor is protected from dust, debris, slurry
• Floating head - ensures the tooling grinds and scrapes flat and fast, follows the floor’s contour, prevents dig and ring marks
• 360° Internal Dust Pick-Up - collects airborne dust and debris in the brush cover and directs it upwards to the 2" vacuum port.

$3,000.00
17" High Torque Floor Machine - Includes:  Extra HD Gears (no belts or pullies), (4) 20 lb Weight Plates, Impeccable Built-In Dust Pick-Up, 1.5" HP TEFC 115/230v 60 Hz Motor, Weight:  233 lbs.

Diamond Driver Plate, Sold Separately - Size:  16-5/8".  Fits the 17" Machine.  With clutch plate, attaches to the grinder's 3-tab driver.  Accepts a complete assortment of diamond tools to scrape, grind, scarify, remove coating, polish, restore - concrete, granite, marble.

$3,100.00
20" High Torque Floor Machine - Includes:  Extra HD Gears, (4) 20 lb Weight Plates, Impeccable Built-In Dust Pick-Up, 1.5" HP TEFC 115/230v 60 Hz Motor, Weight:  235 lbs.

Diamond Driver Plate, Sold Separately - Size:  19-5/8".  Fits the 20" Machine.  With clutch plate, attaches to the grinder's 3-tab driver.  Accepts a complete assortment of diamond tools to scrape, grind, scarify, remove coating, polish, restore - concrete, granite, marble.

USA Engineered, Designed & Made
HD, All American Components Built into Every Hawk Grinder

Features

• Dual Voltage:  120 or 240 volt, easy to switch - 7.9 maximum amp draw @ 120 volt

• Foot Operated Tilt Back for Easy Transporting

• Dual steel operating triggers with negative pressure on/off switch

• Disassembles for easy handling down stairs

• 2" x 8" non-marking load bearing, ball bearing wheels

• Thumb-operated safety switch with comfort cushion grips

• Includes removal weights with (4) 20 lb plates and locking pins
• WHEELS-DOWN vs. WHEELS-UP (i.e. swing machine, photo right)
  • Swing machines are used in the janitorial profession to buff and wax floors, it takes time to learn how to control a Wheels-Up machine, the learning curve is long.
  • For concrete grinding and coating removal - high torque is required and a Wheels-Down machine eliminates the learning cuff and a worker's muscle to control the machine.  With a Wheels-Down machine, unskilled workers can become experts within minutes and worker fatigue is reduced 120%.
• PORTABLE - EASY TO TRANSPORT:  One man handling through doorways, down stairs, across rough terrain
• OPTIONAL DIAMOND DRIVER PLATE - Accepts all the diamonds to grind, scarify, remove coatings, polish concrete and stone floors.

Specifications

Related Products

Diamond Driver Plate (right) Accepts a complete assortment of diamond tools (shown below) to grind, remove coatings & sealers including thick tar, polish and scarify concrete, granite and marble floors. Plates are equipped with metal 3-keyway clutch plate (right), the industry standard for rotary grinders and buffers - prevents bodily injury and damage to the plate and grinder < click here for additional info and to order >
Orbitec Driver - Concrete Polishing (right) Application:  Professional polishing of concrete and stone floors Planetary Design - the Orbitec Driver spins at 165 RPM (counterclockwise, as viewed from the handlebars), while the individual, opposite spinning heads (6) rotate at 400 RPM (clockwise). Pedestal heads (6) accepts 3" round, semi-metal and resin polishing pads. Plate equipped with metal 3-keyway clutch plate (right, #NP 9200) for easy attachment to the Hawk grinder Pedestals with hook’n loop facing, securely mount and hold the 3" round diamond pads < click here for additional info and to order >
Diamond Tooling The following diamonds install into the recessed and magnetic slots of the Diamond Driver Plate (above) The 9-5/8" driver plate holds (3) tools and the 12-5/8" driver plate holds (6) tools For tooling to fit the Hawk Machines & Driver Plates, click on the following pictures.
GRINDING / COATING REMOVAL			POLISHING
Metal Diamonds - HTC Tooling -	Coating Removal - HTC Tooling -	Carbide Scrapers - HTC Tooling -	3" Round Pads - Transitional / Polishing -
Dust Extractors Compact, HD Built, Portable, Low 120 Volt Amp Draw Recommended vacuums, replacement hoses and connectors.
< 421 CFM >	< 258 / 285 CFM >	< 120V, 300 CFM >	< Hoses & Cuffs >
