10" USA Dust Guard: 3.5" depth-of-cut with 10" blade. Easy handling & impeccable dust control for both horizontal & vertical sawing.

10" USA Dust Guard
PROFESSIONAL DUST GUARDS

WALL SAWING DUST CONTAINMENT BLADE VISIBILITY
VERSATILITY PRODUCTIVITY LOW AMP DRAW

Price List

10" USA DUST GUARD

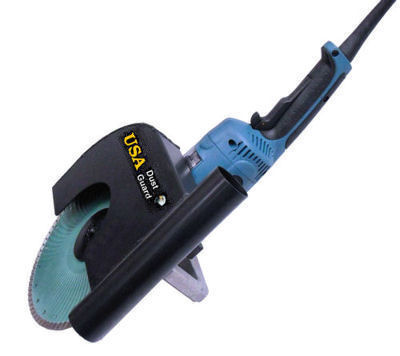

Shown above, installed on a Makita angle grinder (grinder and blade sold separately.)

Equipped as follows: universal collar, loop handle w/ hardware, 3" blade set (inner and outer flange nuts.)

IMPORTANT: the diameter of the blade installed must be within the capacity rating of the angle grinder or saw. See below for available tools.

10" USA Dust Guard

$590.00

Universal Collar: installs onto 7" and 9" electric and battery angle grinders, including Bosch, Dewalt, Hitachi, Makita, Metabo, Milwaukee
Impeccable Handling: Small, Compact, Lightweight --- provides exceptional productivity for mortar removal
Weight: Less than 12 lbs. (guard, 7" grinder, loop handle, blade)
Fast Horizontal Mortar Joint Grinding -
INCREASE PRODUCTIVITY ON THE WALL:
Here's the Set-Up: 10" Guard, 7" 15 Amp Angle Grinder, 7" Diamond Blade
Depth-of-Cut Capacities:

Depth-of Cut Blade Size

2" 7"

2.5" 8"

3" 9"

3.5" 10"

Dust Control / Containment
How Good is it?

The design of the guard provides fantastic dust control when used with a dust extractor capable of maintaining an airflow rating of 125 CFM.

However, to conform to the OSHA Silica Dust Regulation, the vacuum must be equipped as follows:

Filtration efficiency rating of 99% or higher
Equipped with a self-cleaning filter or cyclonic dust separation
Airflow rating of 25 CFM per 1" of blade diameter.

> 7" blade requires 175 CFM
> 8" blade requires 200 CFM
> 9" blade requires 225 CFM
> 10" blade requires 250 CFM.

Features, Performance

Exceptional Dust Control & Handling --- Specifically designed for wall sawing, brick removal, lintel replacement.
aa
Complete visibility with impeccable dust control in both the horizontal and vertical sawing positions.
aa
Universal collar: fits electric and battery angle grinders (7", 9") and saws (12", 14").
aa
Loop handle provides exceptional and comfortable handling, "Well balanced, feels like it has zero weight when horizontal cutting."

Recommended Dust Extractor:

13-Gallon, 3-Motor
421 CFM, 2" x 16' Hose

Dust Pro - High CFM Vac

Operates from a 20 amp circuit when used with a 15 amp angle grinder vs. competitive saws which require a 30 amp circuit.

Additional Features & Benefits:

Made of USA aircraft aluminum for HD strength, durability and lightweight
Exceptionally balanced weight for easy handling and safety
Exceptional visibility for both horizontal and vertical sawing
Versatile - for use anywhere deeper cuts and impeccable dust control is needed
Eliminates using heavier and larger saws
Universal collar to fit most electric and battery angle grinders (7", 9") and saws (12", 14") - (see below).

Horizontal "Dustless Cutting" with the 10" USA Dust Guard

s

1. Complete dust containment when starting from an outside edge.

2. Zero to minimal dust exhaust when the blade is completely buried in the mortar joint.

3. Easy handling around corners with dust contained.

4. Dust is contained even when the blade exits the joint.
