Surface Prep   >   Concrete Scarifier.


Husqvarna Concrete Scarifiers.

Gas Scarifier

Husqvarna Gas Scarifier, 7.8" Grinding Width.



Fast, Heavy Surface Removal of Concrete, Steel, Asphalt, Wood & Coatings

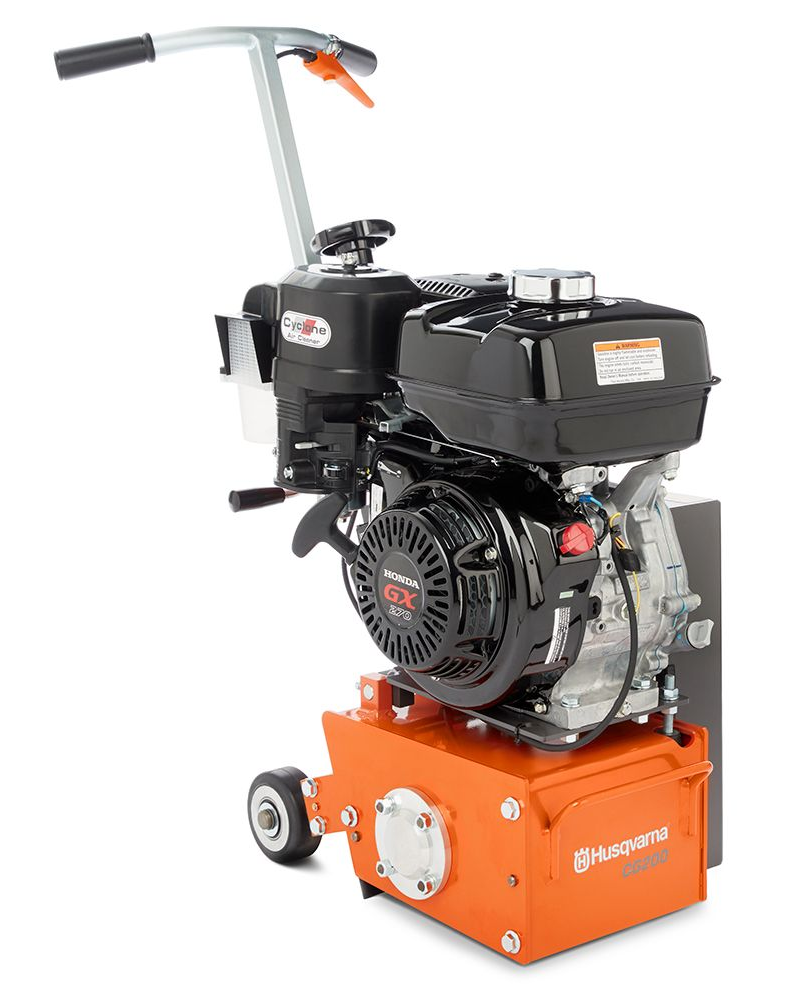

Husqvarna HD 7.8" Gas Scarifier

CG 200 Scarifying Machine
Gasoline 7.8" Grinding Width



Video Clip   Husq Scarifier - video.



Husqvarna CG 200 - Industry's Most Stable, Sturdy 7.8" Scarifier

Most Productive, Highest Rated Portable Scarifier

$xx.xx            7.8", Item No.  967662302



* Due to supply chain issues, this is a quote item.  When you enter a quantity, the item is placed in the shopping cart and labeled to quote.  This won't require you to purchase it and you can easily delete it.  Within the business day, you'll receive a quote that'll include availability and shipping cost --- any 3 pcs of Husqvarna equipment ships free.



Specifications:

  • Power:   9.0 HP Honda GX Engine
  • Power Source:  Gasoline
  • Grinding Width:  7.8"
  • Cutting Depth, Max:  .511"
  • Recommended Cutting Depth per Pass:  .15"
  • Vacuum Dust Port:  2"
  • Belt:  Single, Poly-V
  • Drum Rotation Speed:  1,350
  • Dimensions (L x W x H):  33 x 21 x 29"
  • Weight (excluding tool drum):  141 lbs.



Overview
Highly productive scarifier, designed to remove concrete fast and aggressively.  Applications include removing coatings (heavy floor tile mastics and epoxy materials), light or heavy milling, grooving and texturing of walkways to make them slip resistant, removing trip hazards, and leveling misaligned concrete joints and uneven surfaces.  Equipped with vibration-dampening handles for operator comfort, hour meter, height adjustment for precise depth of operation and central exhaust for dust extraction for a cleaner working environment.



Most Powerful, Stable & Sturdiest Scarifier in its Class
Centrally located weight and quality engineering prevents it from "jumping out of the cut" ---

  • Provides the fastest and most productive removal rate
  • Ideal for general duty surface preparation, removal of concrete, thermo-plastic lines, paints, coatings, trowel marks, sidewalk trip hazards and the like
  • Possibly the best option for removing rubber from busy airport runways.



Scarifing sidewalk trip hazard.Variety of Interchangeable Cutting Wheels & Drums

  • Perform a Broad Range of Profiling Tasks ---
  • Different cutters are available to achieve the profile you want
  • Remove all types of material and leave any finish desired with minimal witness marks
  • The TCT-Wheeled Cutter (tungsten carbide tipped) provide far superior productivity results when needing to remove over 1/8" of concrete versus diamond grinding plus there are no issues with hard or soft concrete and no need for water - the surface left behind is profiled and ready for applications.





Features & Benefits

Husqvarna Scarifier - easy change tooling.

Easy to Change Tools

The removable side cover makes changing the drum easy.

Husqvarna Scarifier - operator controls. Convenient controls

Automatic reset to the selected cutting depth and quick release of the drum from the ground.

Millimeter adjustment for precise depth of operation setting.


Ergonomic working position

Adjustable handlebar makes the setting of an ergonomic position easy.

Equipped with vibration-damping handles for operator comfort.

Husqvarna Scarifier - ergonomic handling. Dust Control for a Healthier Working Environment

The central exhaust for dust extraction makes a cleaner working environment possible.

Husqvarna Scarifier - dust control port.





What is Concrete Scarifying?  A concrete scarifier is one of the most productive pieces of surface prep equipment for heavy removal jobs and preparation prior to overlay.

Scarifying machines, also known as planers or milling machines, use a pummeling action of multi-tipped cutting wheels rotating at high speeds to chip away at the surface.

They remove and level everything fast with controlled depth, width and finish styles.  They also texture, clean and etch surfaces.



Effective Scarifier Applications:

TRIP HAZARDS ---  Happen in many environments and one of the more common is with sidewalks where individual slabs become uneven and rise.  As a result, the raised slap needs milled to conform to the lower slap.

Sidewalk trip hazard. Sidewalk trip hazard - scarified.

If a concrete grinder would be used it would take much longer and create considerable dust.  The speed of the scarifier’s aggressive cutters reduces the raised slap quickly and it is all done with dust control.

BONUS: With the precision depth control you're able to choose from a smooth to a more textured finish.



REMOVAL OF CONCRETE GREATER THAN 1/8” ---  A scarifier will accomplish this task significantly faster than a grinder.



THICKER COATINGS ---  If you need to remove a thick coating a scarifier will be the fastest most effective form of removal.  While a grinder with PCD tool can remove these coatings just as well, a scarifier is more aggressive, faster, more effective, and less costly to operate.





Scarifier Tooling - Kits (2), Drum & Cutters

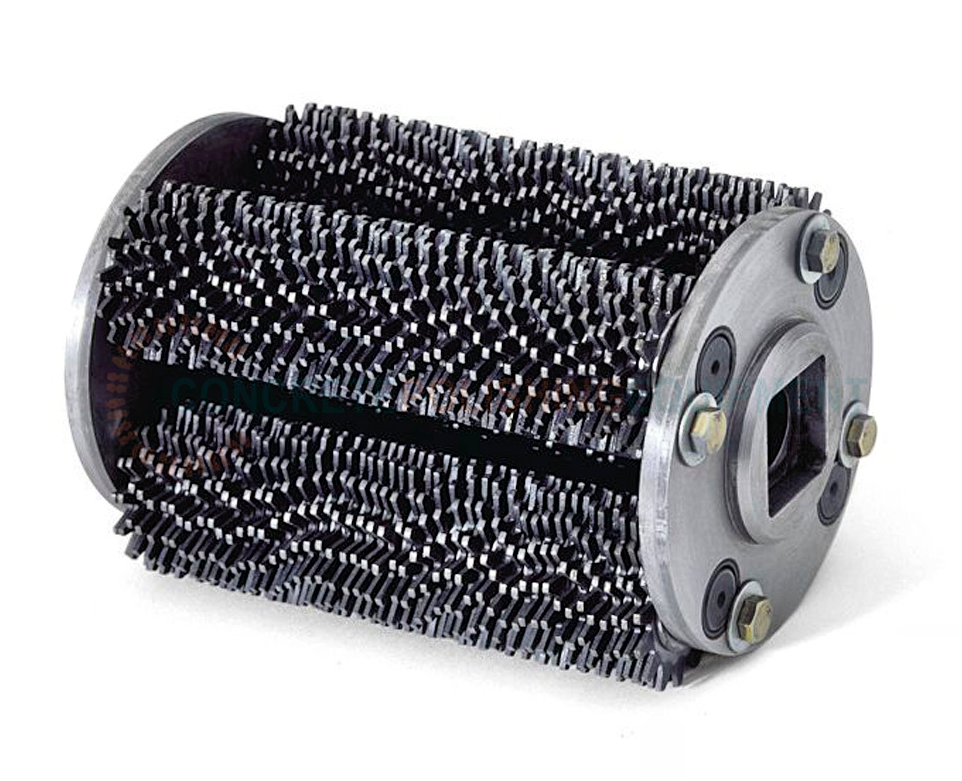

Husqvanra Star-Wheel Cutter with Drum and Spacers.Star-Wheel Cutter - Cleaning & Removal

  • Cleaning and removing epoxy, paint, oil, grease, glue and thermoplastic road markings
  • Alternating washer and spacers on the four shafts of the drum enables users to achieve desired surface conditions:  very rough, medium or very fine
  • Available in read-to-use kit or as spare parts.



Description Diameter, MM Thickness, MM Item No Price Qty to Order
160 Star Wheels, 164 Spacers, (1) Drum
60 2 543040221 $890.00

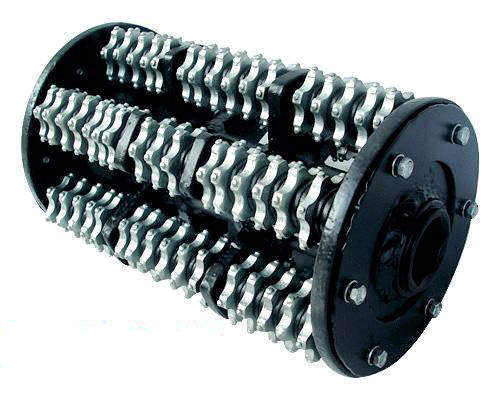

Husqvarna - Tungstedn Carbide Tipped Cutters.TCT-Wheel Cutter (Tungsten Carbide Tipped) - Modifying Surface of Concrete & Asphalt

  • High-performance tool for scarifying the surface structure of concrete and asphalt.  Very high wear resistance - 10 times longer life than star-wheeled cutter.
  • Alternating washer and spacers on the four shafts of the drum enables users to achieve desired surface conditions:  very rough, medium or very fine
  • Available in read-to-use kit or as spar parts.



Description Diameter, MM Thickness, MM Item No Price Qty to Order
84 Carbide Wheels, 84 Spacers, (1) Drum 58 7 543040224 $1,150.00



Replacements, Cutters & Spacers

Name Diameter, MM Thickness, MM Item No Price Qty to Order
Star Wheel 60 2.0 543040214 $2.20
TCT Wheel 56 6.5 543040216 $12.60
Spacer -- 3.0 543040217 $.29
