Small Vacs   >   Wet / Dry Vacs   >   16 HD Gallon Shop Vac


16-Gallon Silica Dust Extractor

Plus Wet Pick-Up with Powerful 103" Water Lift





Dustless Vac - 130 CFM, 16-Gallon

Dustless D1603, Wet / Dry



138-CFM Dust Extractor

$379.99

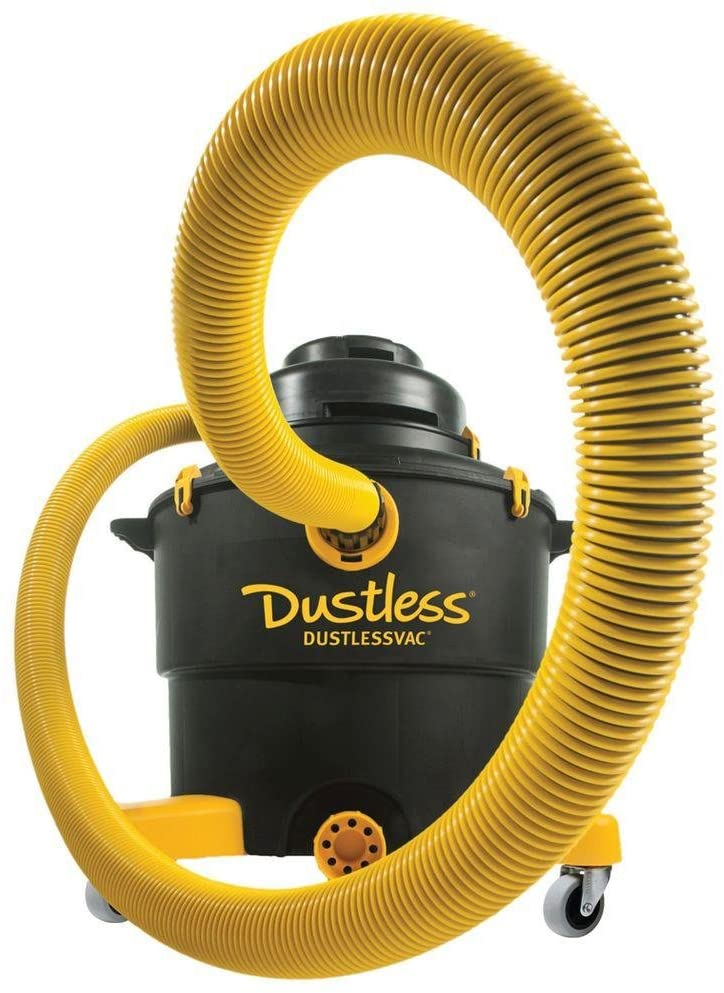

#D1603 - OSHA Silica Dust Compliant Dust Extractor, 16.0-Gallon, Self-Cleaning, 130 CFM, 103" H20



Powerful 103" Water Lift (H20)

  • Great for water, heavy sludge, concrete slurry pick-up

  • Backed by 3-Year Warranty.



Description:
Delivering the best combination of CFM and H20 to comply with the OSHA Silica Dust Regulation

  • OSHA Silica Dust Rule - Vacuum Compliant. Grinding / cutting applications in concrete requires 25 CFM per inch of diamond blade diameter

  • This 130 CFM Dust Extractor will handle a 5" diamond blade

  • Capable of both wet and dry pick up

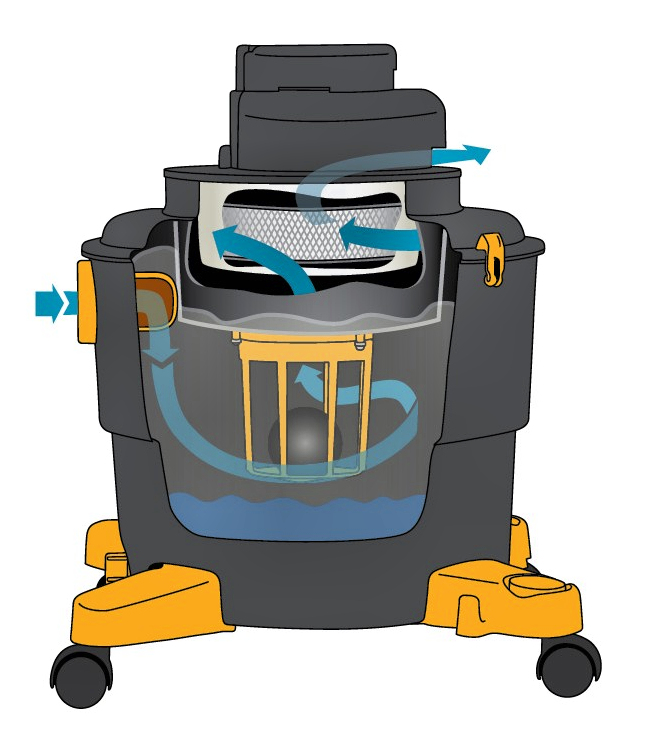

  • Triple layer filter system - exhausts no dust back into the air

  • Captures extremely fine dust from drywall, concrete, wood, fiberglass, stone and other masonry products

  • Filters and pre-filters won't be compromised by water or slurry

  • Large 16-gallon tank easily holds 40 pounds of dust

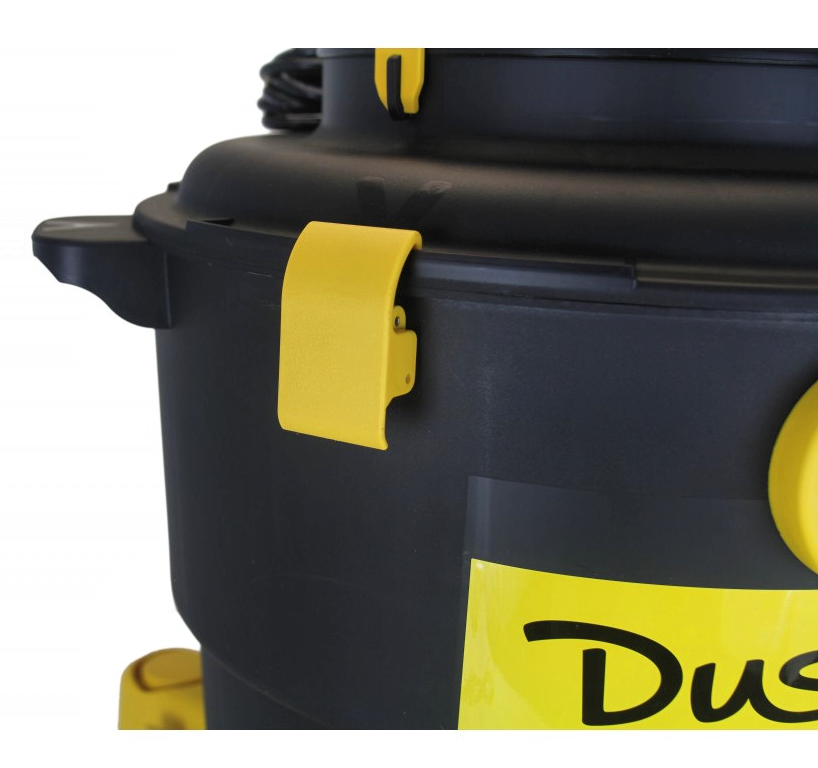

  • HD, durable tank clamps.

DT_VP.png (4259082 bytes) DL_Vac_D1603.png (729213 bytes) DL_Vac_D1603_Bag_Install.png (578746 bytes) DL_Vac_D1603_Casters.png (395171 bytes) DL_Vac_D1603_Clamps.png (343850 bytes) DL_Vac_D1603_Drain.png (484055 bytes) DL_Vac_D1603_Operation.png (273247 bytes) DL_Vac_D1603_Rear.png (587058 bytes) DL_Vac_D1603_Hose.png (518406 bytes)
Specifications:
--- equipped as follows:
  • 16.0 Gallon, 120 volt, 10.6 Amp

  • 130 CFM, 103" H20

  • 130 CFM to handle 5″ diamond blades

  • Go between wet and dry collection without switching filters

  • Filter System

    • Automatic Filter Clean - air burst on the filter when the vac turns-on and again when the vac turns-off

    • * Triple-Layer Filter System rated at 99.97% @ 0.5 microns - smaller than then width of human air, a red blood cell, finest silica dust particle

    • Filters:

      • wet/dry use:  inner and outer filter - washable

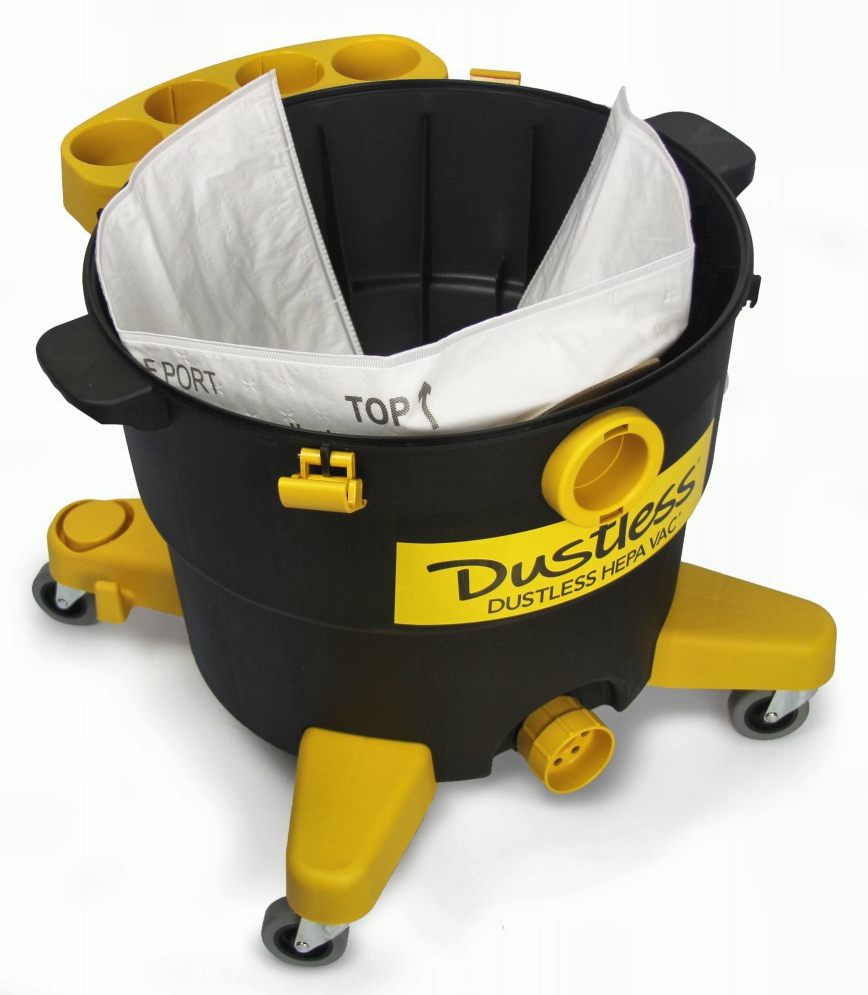

      • (2) fleece collection bags

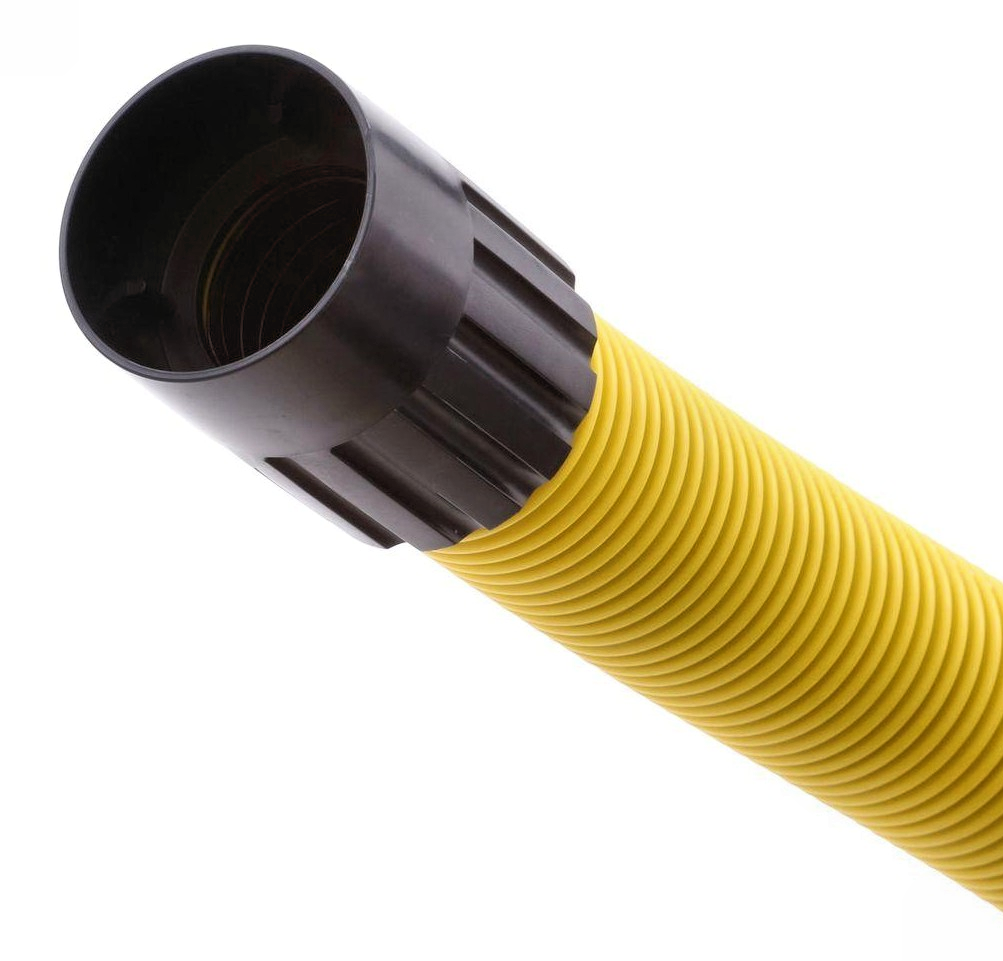

  • Hose - crush and kink proof, 1-1/2" x 12' w/ cuffs

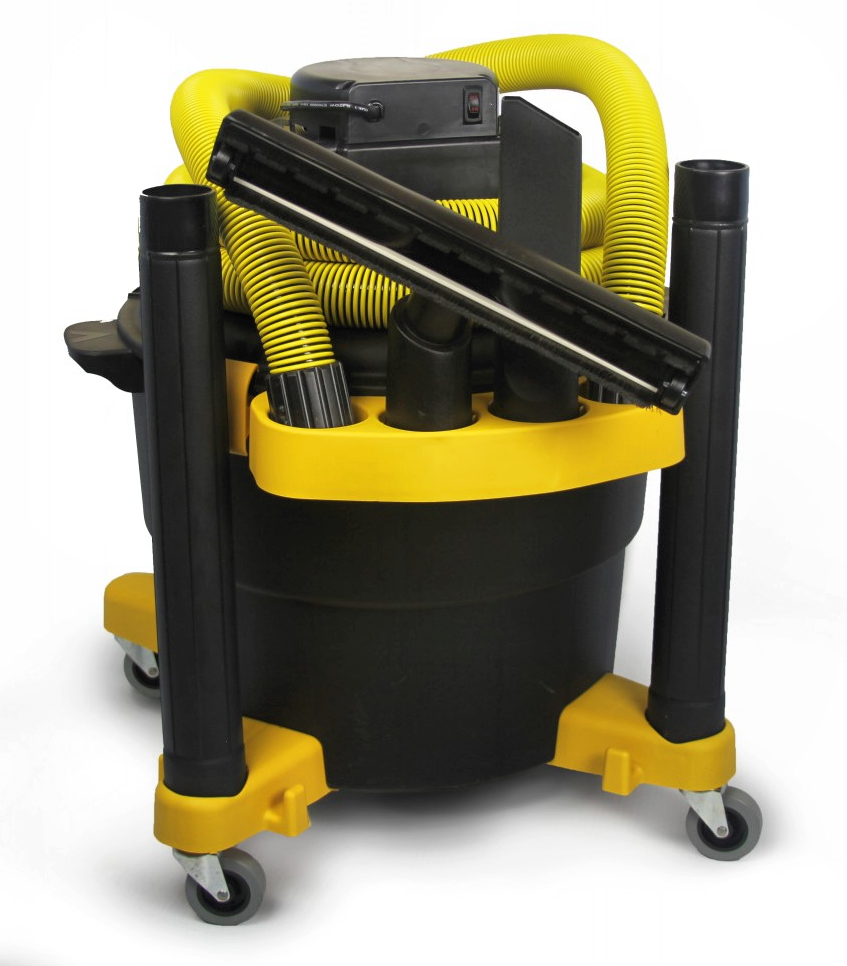

  • Tool kit:  floor & crevice tool, (2) extension wands

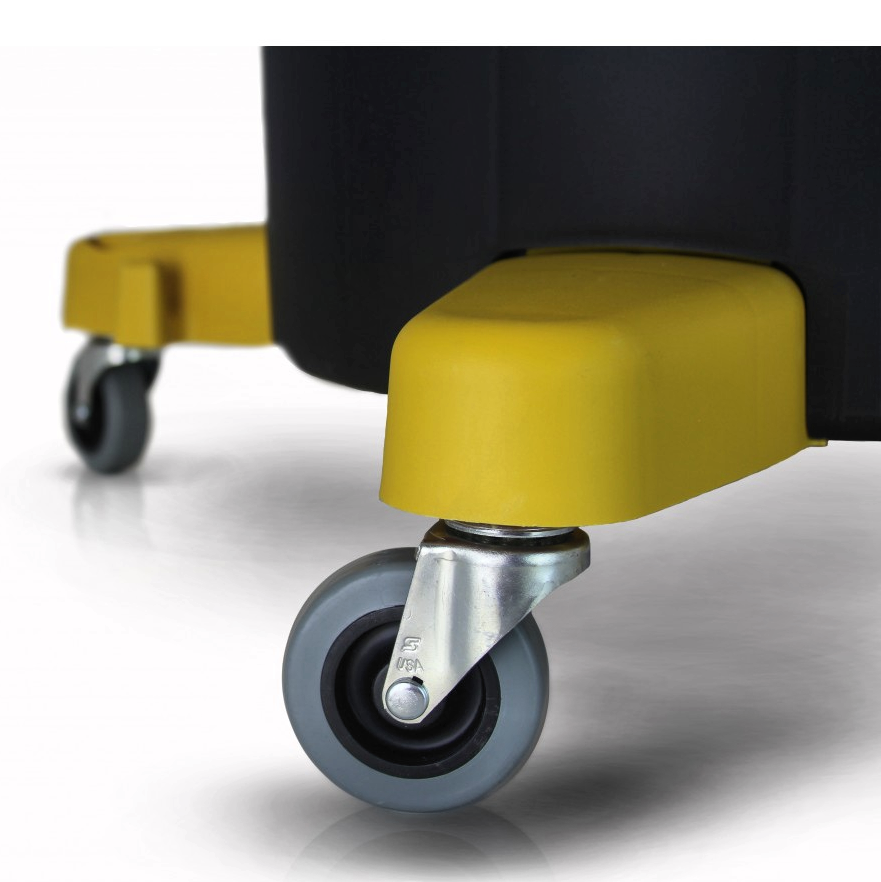

  • Tough, industrial grade rubber casters

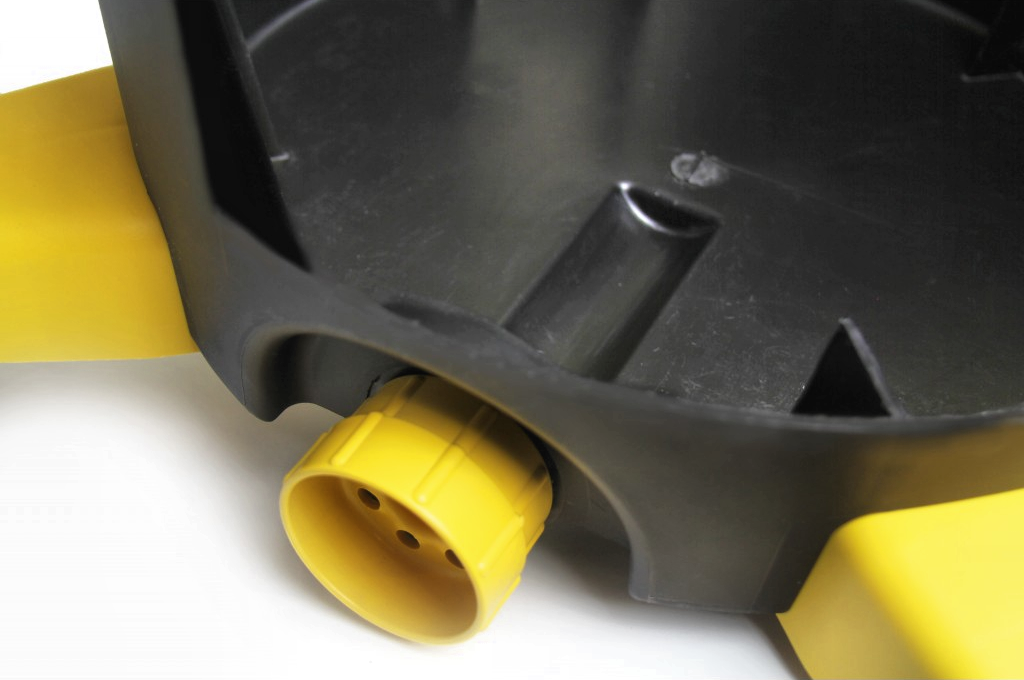

  • Hose attaches to the drain valve for distance draining

  • Dimensions:  21" (w) x 20" (l) x 26" (h)

  • Noise Level:  79 dB

  • Power Cord Length:  15 ft

  • Weight:  37 lbs.

  • Warranty:  3 Year.

Filter Bags:  Air Pulse Bag

USA Dust Guard - Air Pulse Bags:  prevents filter loading, keeps HEPA filter clean!

Air Pulse Bag - stitched collar maximizes fill capacity w/o filter bag tearing.

High Efficiency Rating
- HEPA Filter Stays Clean
Strongest Bag w/ Stitched Collar - assures 100% fill capacity ~ will not tear or prematurely burst.

Stitched Collar
- will not delaminate from the bag as does a collar that is glued-on
- HD sewn stitching assures maximum fill capacity therefore production increases.



Self-Contained, Seal-Able Bag - meets EPA / RRP and OSHA Silica Dust requirements for the handling and disposable of hazardous debris including lead paint, asbestos, silica dust.

Air Pulse Bag - sale brochure.

Toss the bag in a dumpster and it still won't tear.

To order Air Pulse
Bags, click here.







* As per the OSHA Silica Dust Regulation:  "Dust collector must have a filter with 99% or greater efficiency and a cyclonic pre-separator or filter-cleaning mechanism."  -- i.e. a HEPA filter is not required.



Related Products

---  Click on pictures for info and pricing  ---
Thread-End x Smooth-End, Soft Vinyl Hose Cuffs. Air Pulse Filter Bag:  prevents filter loading, keeps HEPA filter clean!
Universal Fit:  USA 6" Dust Guard Diamond Packages:  USA 6" Dust Guard w/ Angle Grinders
Hose Cuffs
  • Threads onto the 1-1/2" hose

  • Accommodates dust ports on shrouds:  2", 1-1/2", 1-1/4".

Air Pulse Vac Bags
  • Best bag in the market to contain ultra fine powder

  • Universal Fit - fits most silica dust and wet/dry vacuums.



Free Angle Grinders
  • or 6" Dust Guard

  • or both (grinder & guard)

  • with purchase of (20) Diamond Blades.
