Diamond Menu    >    Tuck Point Blades    >    Dust Guards


Hawk Titan Slurry Vacs - Made in USA.

DUST GUARD
Professional Tools for Pros

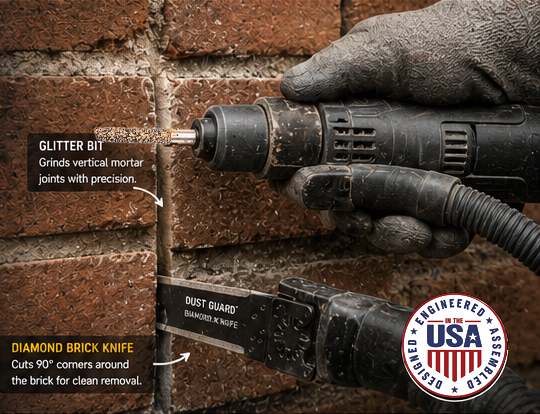

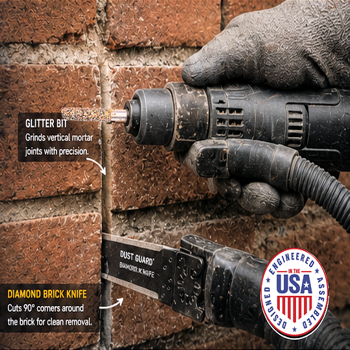

Diamond Glitter Bit & Brick Knife - Single Brick Removal System.

HEAD JOINTS
SINGLE BRICK
REMOVAL SYSTEM

The Complete System to Remove a Single Brick Cleanly, Accurately and Safely.

USA Dust Guard - Highlight Feature Remove bricks without damaging the surrounding masonry
USA Dust Guard - Highlight Feature Grind vertical joints and complete 90° cut-outs
USA Dust Guard - Highlight Feature Faster, cleaner and more precise
USA Dust Guard - Highlight Feature Trusted by masonry restoration professionals.



THE PROBLEM WITH TRADITIONAL METHODS

Circular blades can damage adjacent bricks. Hammer & Chisels - Hardwork and time consuming Individual Brick Cut-Out - Complete with 90 degree corners.
Small blades can damage adjacent bricks. Chisels and hammers are slow and labor intensive. Chisels and hammers are slow and labor intensive.
Red Arrow - Solution
THE SOLUTION:  SINGLE BRICK REMOVAL SYSTEM



Diamond Glitter Bits Diamond Brick Knives
Our system combines two specialty diamond tools that work together to remove bricks faster, cleaner and with less risk of damage.
USA Dust Guard - Highlight Feature Glitter Bit grinds vertical joints, inside wall corners, creates 90° corners.
USA Dust Guard - Highlight Feature Diamond Brick Knife cuts deep and helps create precise 90° cut-outs.



HOW THE SYSTEM WORKS

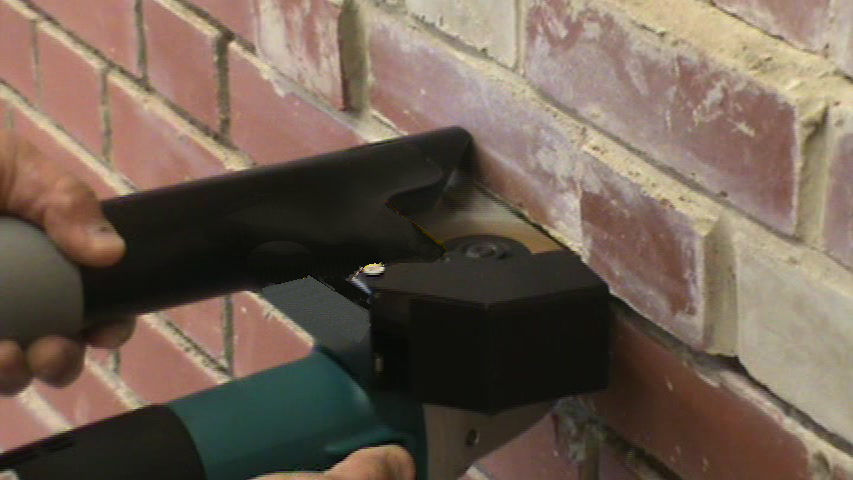

USA Dust Guard - Highlight Feature CUT HORIZONTAL JOINTS

Use a diamond blade to cut the horizontal mortar joints.

Cut the Horizonal Mortar Joints

USA Dust Guard - Highlight Feature





USA Dust Guard - Highlight Feature GRIND VERTICAL JOINTS & 90° CORNERS

Use the Glitter Bit in a variable speed die grinder for detail and precision grinding.

Glitter Bit - grinding vertical brick joint.

USA Dust Guard - Highlight Feature






USA Dust Guard - Highlight Feature CUT DEEP & COMPLETE 90° CUT-OUT

Use the Diamond Brick Knife to cut through the mortar and complete the 90° corner cut-out.

Diamond Brick Knife - Single Brick Removal

USA Dust Guard - Highlight Feature





USA Dust Guard - Highlight Feature REMOVE THE BRICK

Remove the brick cleanly with minimal damage to surrounding masonry.

Diamond Brick Knife - Single Brick Removal











Diamond Glitter Bit

GLITTER BIT
Precision Diamond Router Bit
Grinds vertical mortar joints safely
Reaches tight corners and hard-to-access areas
Works on hard "S" mortar and granite
Long life - far outlasts electro-plated bits
Use wet or with Dust Controller for best results
Sizes Available
1/8 x 3"
1/4 x 3-1/2"
1/4 x 4-5/8"
For use in Variable Speed Die Grinder

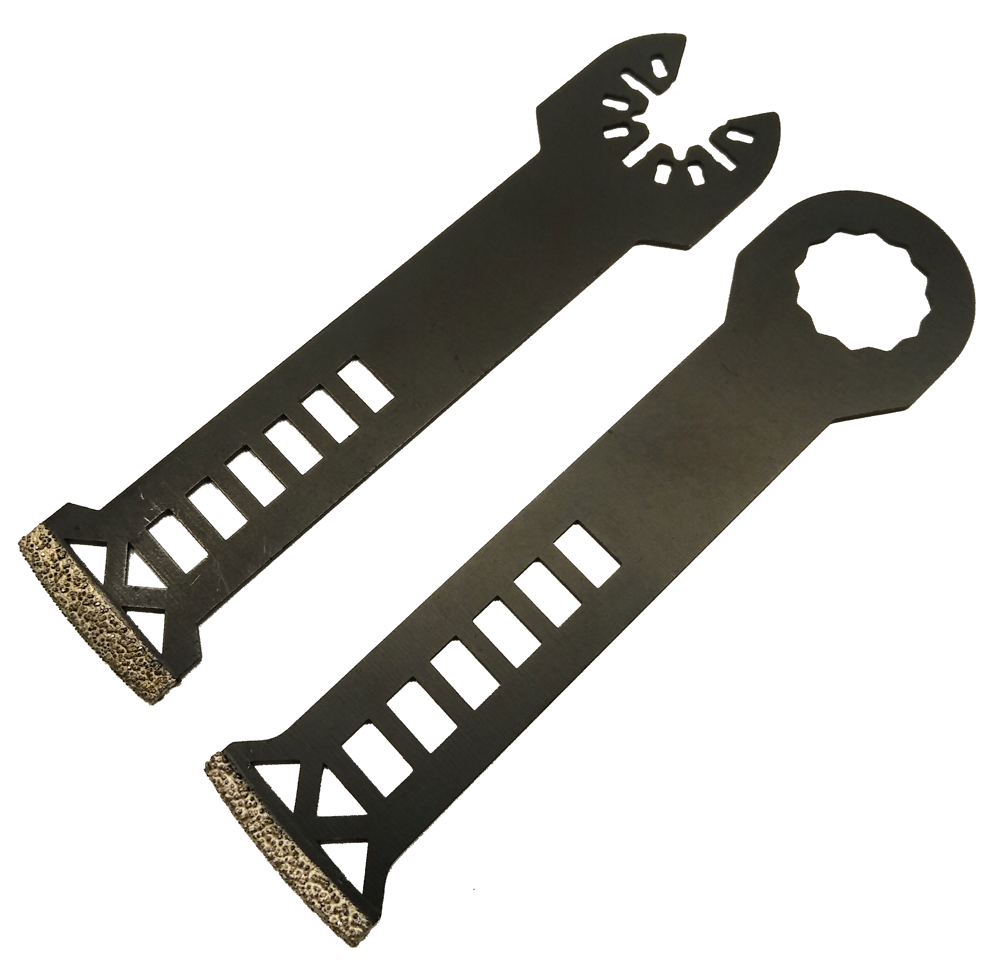

Diamond Brick Knives - (2) Arbor Types

DIAMOND BRICK KNIFE
Precision Oscillating Tool Blade
Cuts true 90° corners around bricks
Cuts vertical & horizontal joints
Two arbor types:  Fein Super Cut, and Multi-Tool Universal Fit
Perfect for tight joints
Cleaner cuts with less damage
Overall Length 5-1/4"
Depth-of-Cut 4-1/4"
Diamond Width 1-1/4"
Diamond Thickness .085"
BEST VALUE!
SINGLE BRICK
REMOVAL SYSTEM KIT


INCLUDES:

Diamond Glitter Bit 2-Pk, Diamond Brick Knife - Multi-Tool Universal Arbor
USA Dust Guard - Product Feature Two (2) 1/4 x 3-1/2" Glitter Bits
USA Dust Guard - Product Feature Tw0 (2) Brick Knives - Multi-Tool Arbor
ONLY  $128.00

(Save $10)

Diamond Glitter Bit 2-Pk, Diamond Brick Knife - Fein SuperCut Arbor
USA Dust Guard - Product Feature Two (2) 1/4 x 3-1/2" Glitter Bits
USA Dust Guard - Product Feature Two (2) Brick Knives - Fein Super Cut Arbor
ONLY  $128.00

(Save $10)


Secure Check-Out



TRUSTED BY MASONRY CONTRACTORS

USA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold Star
"This tool is a game changer.  I can remove a brick in minutes with damaging the surrounding masonry."

--- Mark R., Restoration Contractor
USA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold Star
"We do a lot of historic work and this blade is perfect for cutting tight joints without chipping the good brick."


--- James T., Masonry Specialist
USA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold StarUSA Dust Guard - Gold Star
"Finally, a blade that cuts the bed joints cleanly.  Saves me so much time on every job."

--- Dan K., Bricklayer



Stringent Quality Control
Quality tools built to last.


Contractor Tested
Proven performance for 20+ years.

Premium Diamond
Superior cutting and long life.

Save Time and Labor
Get more done everyday.

Expert Support
We're here to help when you need it.






Buy Individual - Brick Knives, Glitter Bits
  90 Degree Cut-Out Blade - Single brick & tile removal.   Diamond Glitter Bits
  DIAMOND
BRICK KNIVES
  DIAMOND
GLITTER BITS
