Dust Guards   >   Surface Edge Shrouds



USA Dust Guard - "Where the Pros shop"

Spring-Cushion Dust Shrouds

 --- Spring-Cushioned Diaphragm ---
For Feather-Touch Blending & Polishing

Free Grinder
Vac Package

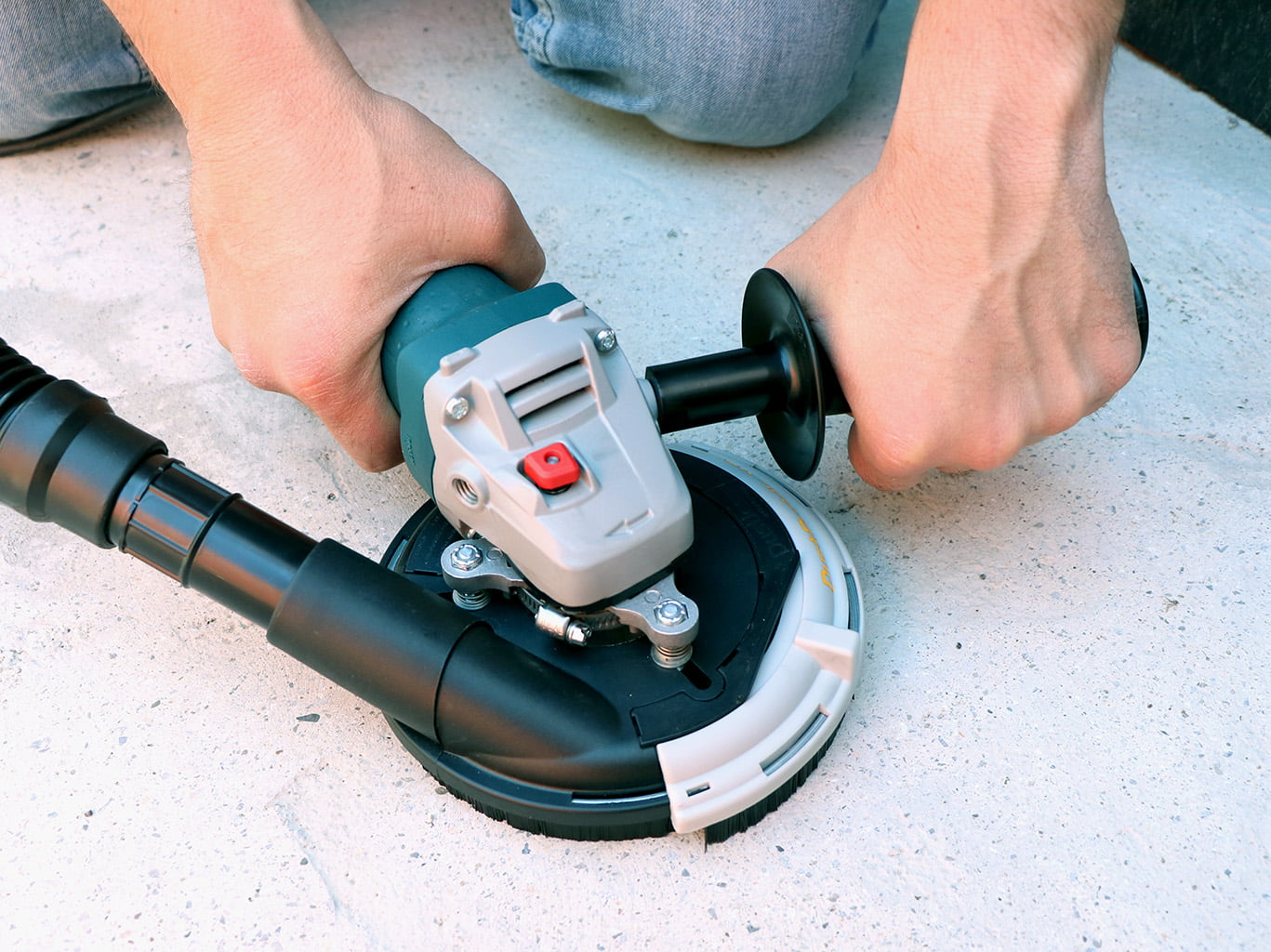

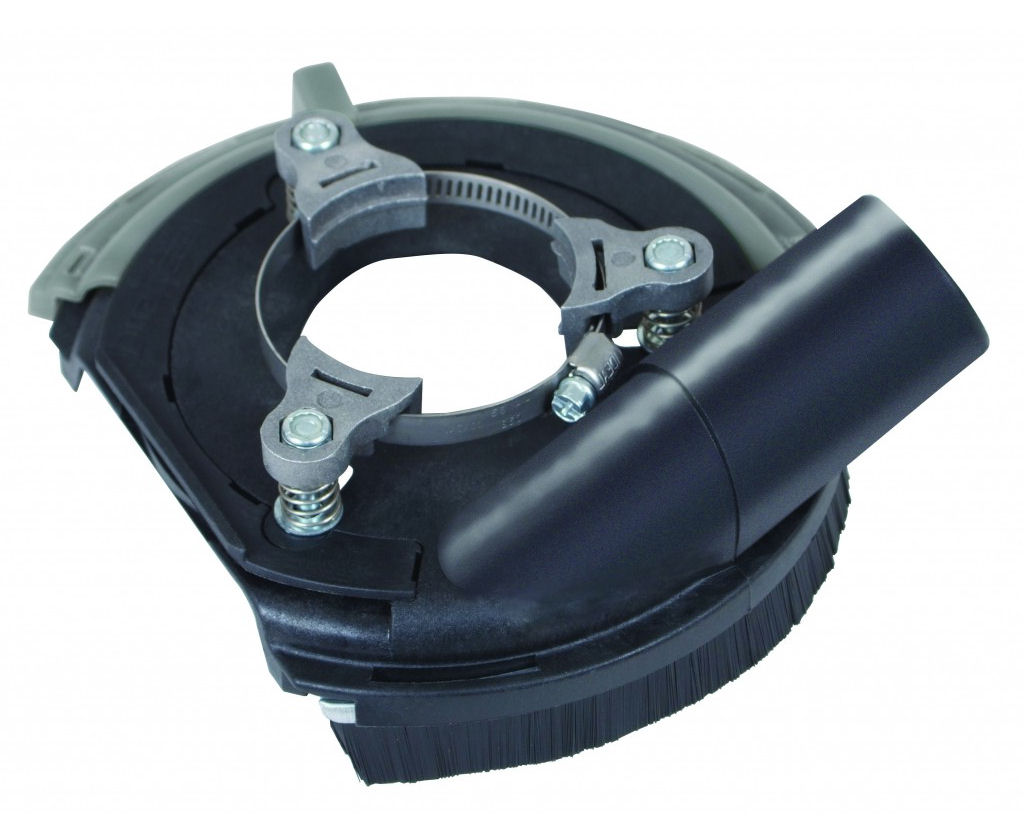

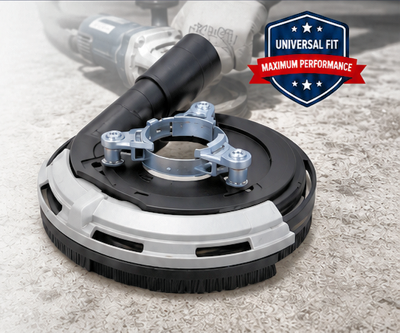

Deluxe Surface Dust Shroud, 5" & 7".

"Retractable" Edge Cover
For Wall Edging

HD Mechanical Attachment
Solid, Universal Connection to Your Angle Grinder





$ 99.97
5" Edge Shroud, #ES5.  5" wheel blade capacity;  99%+ dust containment, retractable edge cover, universal collar to fit most 4.5" - 6" angle grinders.



$109.95

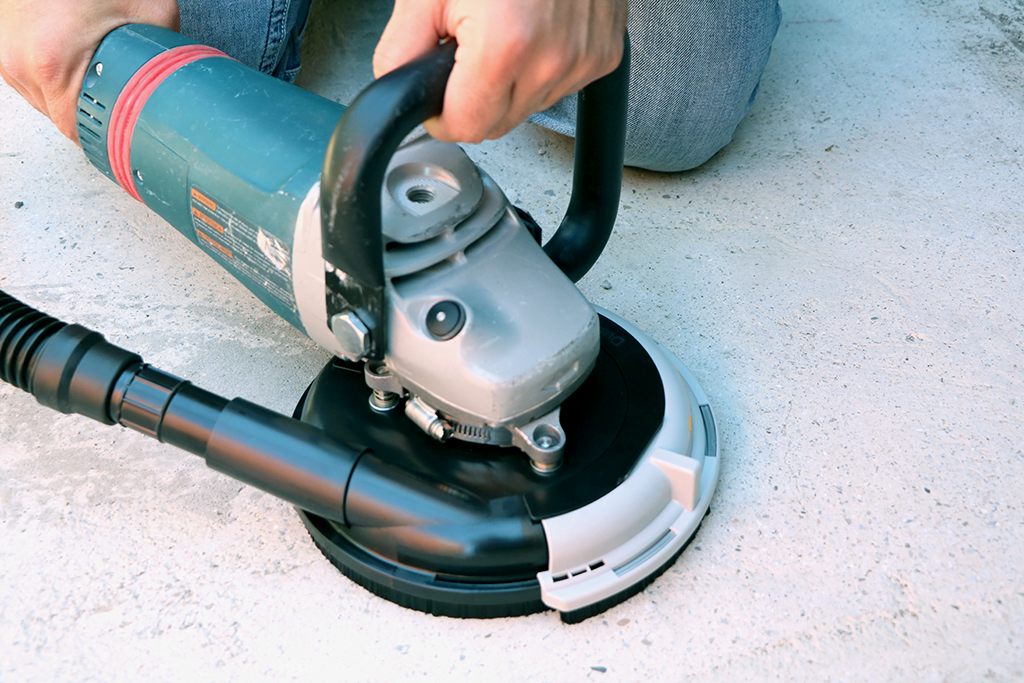

7" Edge Shroud, #ES7.  7" wheel blade capacity;  99%+ dust containment, retractable edge cover, universal collar to fit most 7" - 9" angle grinders.

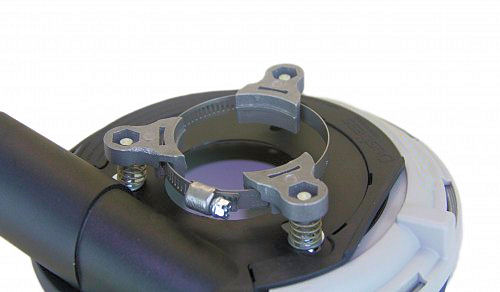

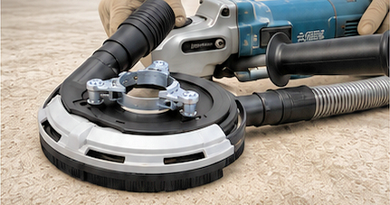

Universal Collar & patented floating head.Spring-Cushion Diaphragm
Enables the operator to control the downward pressure on the grinding disc.



Benefits of a Floating Diaphragm:

  • Accommodates the contour of the floor
  • Allows the operator to provide the exact amount of downward pressure for lightweight sanding, polishing or aggressive grinding
  • Assures maximum dust control while allowing you to grind naturally without a stiff fit
  • Assures 100% of the diamond cup wheel will be used
  • Accepts both types of wheels:
    • 5/8-11 (thread-on hub)

    • 7/8" open hole (arbor).





Shroud with rubber diaphragm.Rubber- Diaphragm
Disadvantage of shrouds with a rubber diaphragms:

  • Rubber is known to get ripped by the cup wheel when too much downward pressure is applied to the disc
  • Diaphragm is expensive to replace
  • Should the rubber get ripped an unsafe situation quickly arises.



Additional Features:

Removable Edge Covers - known to get lost.Retractable Edge Cover

  • Cover slides open to grind along wall edges

  • Shrouds with removable edge covers the covers get lost and even break

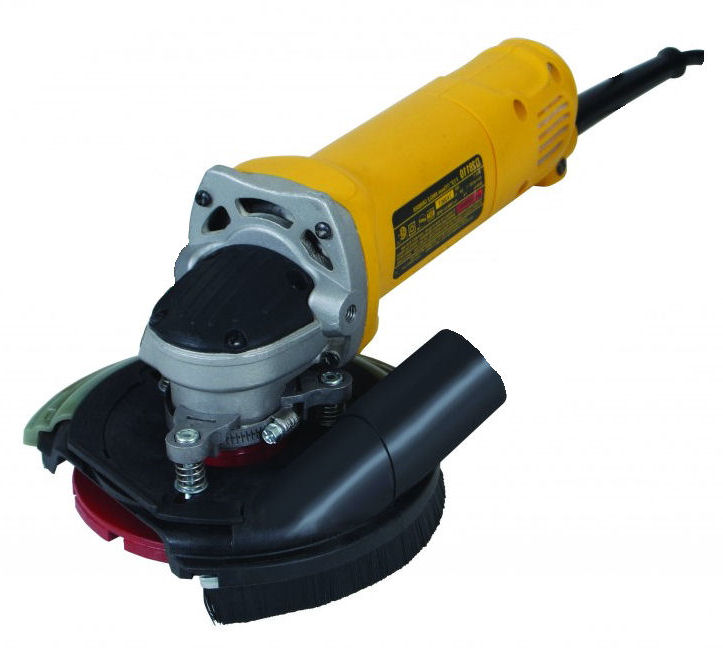

Deluxe Surface Dust Guard - Edge Cover Open.

Edge Cover "Retracted"

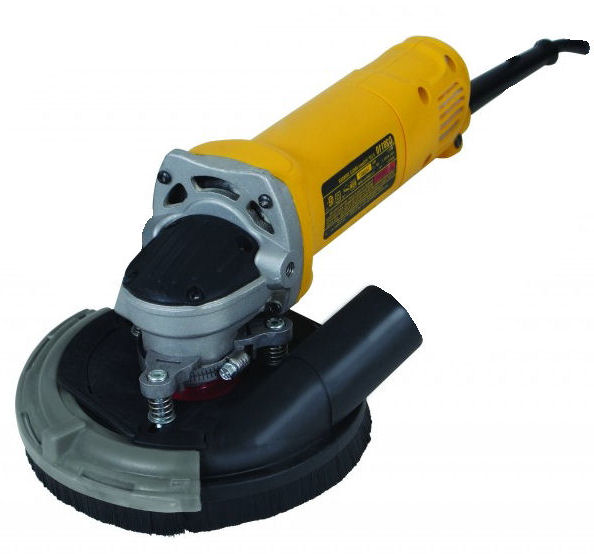

Deluxe Surface Dust Guard - Edge Cover Closed.

Edge Cover "Closed"

Universal Collar - Mechanical

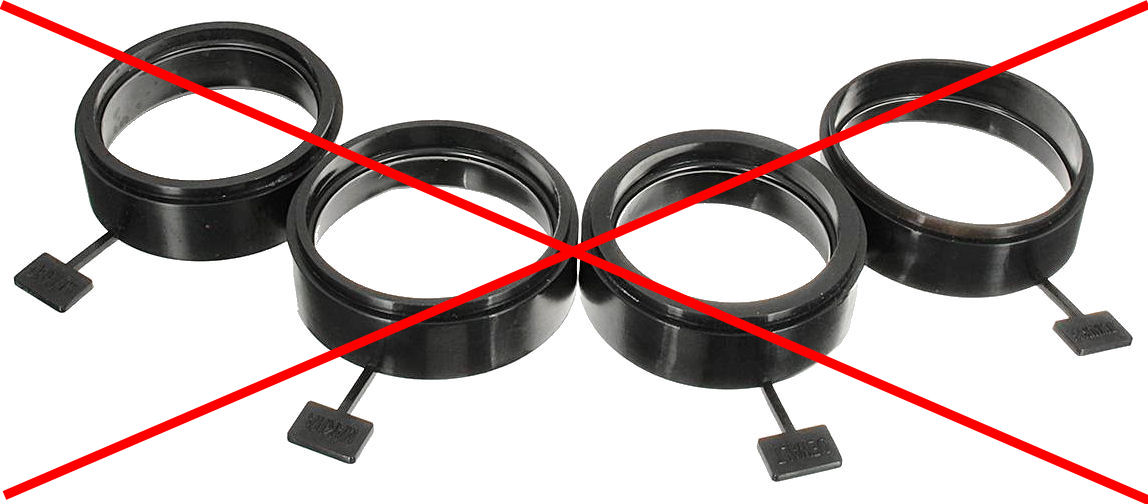

  • No insert collars required!No insert collars are needed!
  • Installation is quick and easy

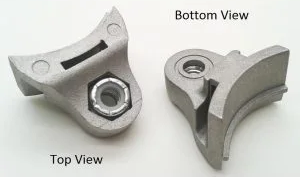

  • Mechanical Connection - HD, fully adjustable.  Metal cleats secures the grinder, no spacers or parts to use or to lose!



Hose Connection

  • Hose to Reducer Cuff Connection.Dust exhaust port accepts 1-1/2" ID hose cuff (5" and 7")

    • to see hose cuff selection including replacement hoses, click here.



Deluxe Surface Dust Guard - Edge Cover Open.



Free Grinder / Vac Packages

Dust Guard, Grinder, (10) Vac Collection Bags

Free --- with Vacuum & (5) Diamond Cup Wheel Purchase



Fully Certified HEPA Vacuums

Not Just a Vacuum or a Silica Dust Extractor
"USA" Designed Stay-Clean Filter:  Collect Volumes of Silica Dust
Without Suction Drop     Filter Stays-Clean     Without Using Electronics



OSHA Silica Dust Rule - Vacuum Compliant. USA Dust Guard TP Vac, #TP101 USA Dust Guard TP Vac, #TP131 USA Dust Guard TP Vac, #TP132 Package
Brochure

Brochure - Free Grinder & Dust Guard w Vac Purchase.

10-125
1-Motor
125 CFM 12 Gal
13-125
1
-Motor
125 CFM 15 Gal
13-250
2-Motor
250 CFM 15 Gal


5" Package Price:
With Purchase of any
(5) Diamond Cup Wheels

Following Prices Include
Vacuum, 5" Spring-Loaded Guard, 13 Amp Makita Grinder, (10) Filter Bags

Cup Wheel
Price List

Price List - Diamond Cup Wheels

Makita Angle Grinder, 4.5"

$590.00

$790.00

$1,390.00

Makita Grinder #9564CV
2800 - 11000 RPM, 13.0 Amp, 4.0 lbs.

See below for Cup Wheel Selection



7" Package Price:
With Purchase of any
(5) Diamond Cup Wheels

Following Prices Include
Vacuum, 7" Spring-Loaded Guard, 15 Amp Bosch Grinder, (10) Filter Bags

Additional $70.00
is for the Larger 9" 15 Amp Bosch Grinder

Bosch 9" Angle Grinder.

$660.00

$860.00

$1,460.00

Bosch Grinder #1994-6
6500 RPM, 15.0 Amp
High Torque 4.0 HP

See below for Cup Wheel Selection



VACUUM INFORMATION
The Perfect Size, Weight & Collection Yield for use on Scaffold.

---  FILTER INFORMATION  ---



OSHA Silica Dust Compliant "Self-Clean / Stay-Clean" Filter
5-Stage “Fail Safe” Filter protects the certified HEPA filter (right) from contamination of incoming debris and the accidental discharge or bypass of dangerous dust from the vacuum.

HEPA Filter Stays Clean — Incredible, Long Filter Life!
--- Collect Volumes of Silica with No Electronics
Self-cleaning USA designed filter constantly sheds, prevents suction drop, protects the HEPA filter from the incoming debris plus the protector filter is washable!



"Fail Safe" Filter System for Scaffold Vacuums



Air Pulse Filter Collection Bags
Vacuums can be used with filter bags (10 included in the package) which are the first filter in the "Fail-Safe" 5-Stage Filter System.  When used, everything stays clean including the Protector Filter (see photo, right.)

Collection of 50 lbs of Mortar in 15 Gallon Tank - Air Pulse Bags keeps the Tank & Dust Dumper Clean!



---  VACUUM SPECIFICATIONS  ---

Models: TP101 TP131 TP132
Suction Power: 125 CFM, 105" H20, 1000 Watt Motor 250 CFM, 100" H20
800 Watt Motors x 2
2-Motor Vac and a 13 Amp Grinder
Operates Without Tripping a 20 Amp Circuit
Dimensions, Weight: 16" x 16" x 25"
23 lbs.
14.5" x 18.5" x 27"
25 lbs.
14.5" x 18.5" x 32"
35 lbs.
Tank Size, Collection Yield: 12 Gal Poly, Blow Mold
35 lbs. Silica Dust Yield
15 Gal Poly, Rotational Mold
50 lbs. Silica Dust Yield

WELL EQUIPPED
&
- DESIGNED -

  • 12/3 x 50' Power Cord w/ 15 Amp Ground Plug
  • Stay-Clean Filter System
  • Wattage of Motor(s)

All Work Together to Maintain CFM
&
Prevent Excessive Power Consumption
(i.e. Tripped Breakers)

  • 12 gauge x 50' Power Cord with 15 Amp Ground Plug eliminates an extension cord

  • 120V outlet with on/off activation of vacuum’s motor using a power tool (1-motor models)

  • Barb Hose Inlet: fully secures the hose, accepts both 1.5" and 2" hoses (up to 25')

  • Flexible Hose: 10' x 1.5" for 1-motor models, 2" for 2-motor mode

  • Connector: 2" ID soft vinyl cuff for attaching the 6" Dust Guard

  • Four (4) rubber, swivel casters provide superior mobility even with a full tank of dust

  • Steel Clamps: secures the motor head to the tank during handling and transporting.

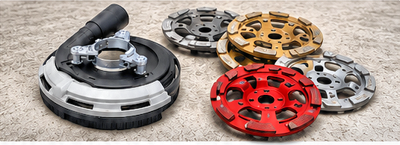

Diamond Cup Wheel Selection

Surface Grinding / Vacuum Packages
--- Purchase any (5) diamond cup wheels per Vacuum Purchase ---
---  The following are our Best Sellers  ---

Diamond Cup - PCD Diamond Cup - T-Segment Diamond Cup - S-Segment Diamond Cup - Arrow Segment Diamond Cup - Turbo Fan
PCD T-Segment S-Segment Arrow Segment Turbo Fan

Coating, Sealer Removal

Concrete Grinding + Blending Concrete Grinding + Coating Removal
  • Removable 5/8-11 Nut for use with Shallow Dust Shrouds (i.e. Hilti)
  • Shallow Height, fits all types of dust shrouds
  • With 5/8-11 hub



  • 20 Grit, leaves concrete pores open for resealing
  • Available with 5/8-11 hub or 7/8" arbor (open hole.)
  • Arrow shape segments chip away coatings
  • Aggressive removal for concrete grinding and coating removal.
  • Fast concrete grinding and coating removal
