Vacuums   >   Bosch 17 Gallon, 300 CFM Dust Extractor


Bosch Logo

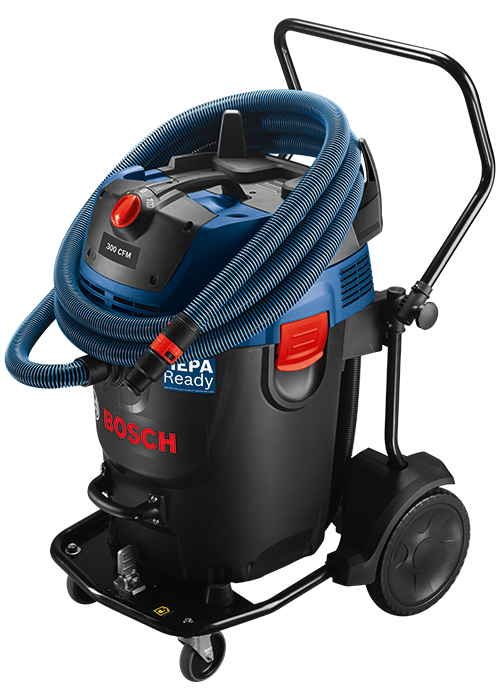

300 CFM HEPA Dust Extractor

Vacuum Upgrade Options (4)



Bosch 300 CFM Self-Cleaning, 17.0 Gallon Dust Extractor.

Model:  GAS20-17AH, 1-Motor





300-CFM Dust Extractor



$1,499.00       GAS20-17AH, 17.0-Gallon, Self-Cleaning HEPA Filter, 300 CFM, 96" H20





---  300 CFM Dust Extractor ~ for Expanded Applications  ---

300 CFM operates from a 110 volt, 20 Amp Circuit.

Use with (1) 7" Dustless  Grinder for Surface Grinding

Power 300 CFM handles 2 dustless grinders.

With Y-Connector to operate (2) Dustless  Grinders

Power 300 CFM handles 2 dustless grinders.

With Y-Connector for Dustless Tuck Pointing



Bosch 300 CFM Dust Extractor:

Delivering the highest rated CFM for silica dust extraction applications:

  • Powerful 17.5-amp motor delivers a maximum 300 CFM to help users move toward compliance with the OSHA Silica Table 1 dust compliance regulation

  • Automatic on-board filter-cleaning operates every 15 seconds to help maintain maximum suction power while the HEPA filter captures 99.97% of particles at 0.3 microns and larger

  • Also provides wet/dry operation with a water-level sensor and drain hose

  • Wheeled metal frame with dumping mechanism, metal casters, height-adjustable push handle

  • Option Y-Connector enables the hookup of two angle grinders for dustless grinding and cutting.lso provides wet/dry operation with a water-level sensor and drain hose.





Specifications:
--- equipped as follows:

  • 17.0 Gallon, 120 volt, 17.5 Amp

  • 300 CFM, 96.0" H20

  • 300 CFM to handle 12″ diamond blades

  • Adjustable CFM Speed Control

  • Fleece Primary Filter Bag (1)

  • HEPA Filter

  • Automatic Reverse Pulse

  • 2" Inlet, 1.3/8" x 9.85' Hose w/ Dust Tool Adapter
  • Dimensions:  35" (h)

  • Weight:  63 lbs.

  • 1 Year Labor & Parts Warranty.





OSHA Silica Dust Rule - Vacuum Compliant.Description:
Delivering the best combination of CFM and H20 to comply with the OSHA Silica Dust Regulation

  • Grinding / cutting applications in concrete requires 25 CFM per inch of diamond blade diameter

  • This 300 CFM Dust Extractor will handle a 12" diamond blade

  • Capable of both wet and dry pick up

  • Independently tested to meet the EPA definition of a HEPA vacuum, capturing 99.97% of particles at 0.3 microns and larger

  • Automatic on-board filter-cleaning operates every 15 seconds to help ensure the dust extractor is always working at maximum efficiency

  • Power tool activation reduces the need for a second extension cord, the tool can be plugged directly into the dust extractor

  • Included 3-layer fleece filter bag optimizes dry debris containment during disposal while extending filter life

  • Heavy-duty wheels, a locking caster and a metal frame makes this more than just a typical dust extraction unit.



Vacuum Upgrade Options (4)

Easy to Improve Your Vac's Performance
(4) Upgrade Options

(1) Air Pulse Filter Bag
USA Dust Guard - Air Pulse Filter Collection Bag:  prevents filter loading, keeps HEPA filter clean!--- HD Strength:  outperforms fleece bags 10:1, will not burst or tear inside the tank
  • High Efficiency - keeps the HEPA filter clean, prevents suction drop

  • Collects ultra fine powders to moist debris at the same time.



$60.00       135414, 5 Pk

$500.00       135414, 50 Case

Free Shipping on (1) vacuum and (1) case of Air Pulse Filter Bags.


< click here for additional information >




USA Dust Guard, Universal Inlet Cuffs (2).Universal 2" Inlet Cuff, accepts 1.5" and 2" hoses to Bosch and Hilti vacuums.(2) 2" Inlet Cuff
--- Inserts in Bosch and Hilti inlet ports.  Transfers vacuum's CFM to the End-of-the-Hose "where it is needed."
  • Replaces Bosch's 1-1/4" hose, accepts a 1-1/2" or 2" diameter hose
  • Value of upgrading to 1-1/2" or 2" hose.  FACTS:
    • Bosch's inlet port is over 2", using their included 1-1/4" hose causes a reduction in airflow (CFM)
    • 1-1/2" and 2" hoses maintain the vac's rated CFM.



#IC200U

$23.90


(3) Super Flexible, Smooth-Bore Interior Hose, 1-1/2" and 2"
  • Ultra Flexible, Lightweight, Durable Hose.Sold in 25' lengths and cut to the length you need (i.e. 6' when using a vacuum in a man lift)
  • One 25' section is commonly cut in two for [2] 12.5' lengths.
#D1525F
1-1/2" x 25' Hose


$ 70.00

#D2025F
2" x 25' Hose


$ 90.00





Thread-End x Smooth-End, Soft Vinyl Hose Cuffs.1-1/2" and 2" hose cuff to USA Dust Guard's 6" Tuck Point Guard.(4) Soft, Pliable Vinyl Hose Cuffs, for 1-1/2" and 2" Hose

  • Thread-end of the cuff threads onto the hose (1-1/2" or 2")
  • Smooth-end of the cuff secures the dust shroud
  • All sizes available to fit your dust shroud:  Bosch, Dewalt, Dust Director, Hilti, Makita, Metabo, USA Dust Guard, etc
  • From the 1-1/2" or 2" hose, click here to match the connection to your dust shroud.







Replacement Hoses & Cuffs - pdf Download Price List

Dust Shroud
Connector
Sizing Chart

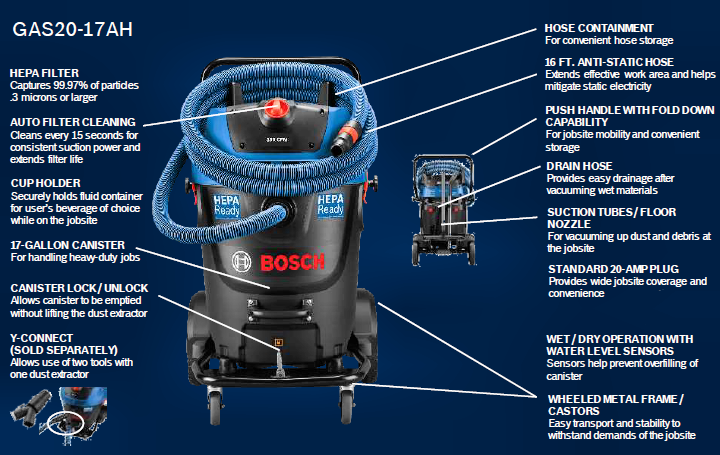

GAS20-17AH Vacuum - Additional Features & Benefits
