Dust Guards   >   Chipping Hammer Dust Boot



USA Dust Guard - "Where the Pros shop"

Rubber Dust Boot

Fits 15 lb. Pneumatic & Electric SDS Max Hammers

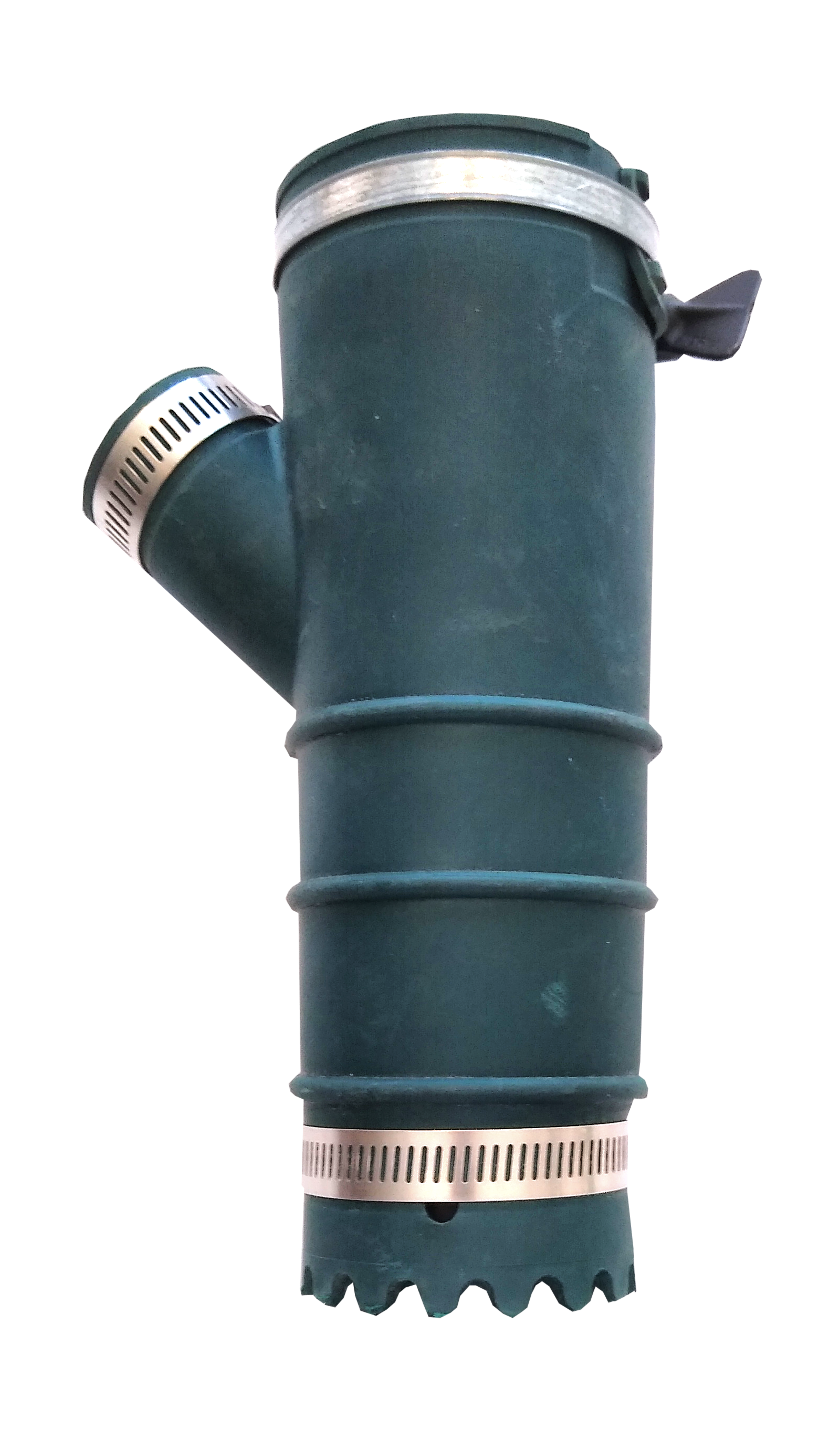

Rubber Dust Boot without Extension Tube.

Rubber Dust Boot

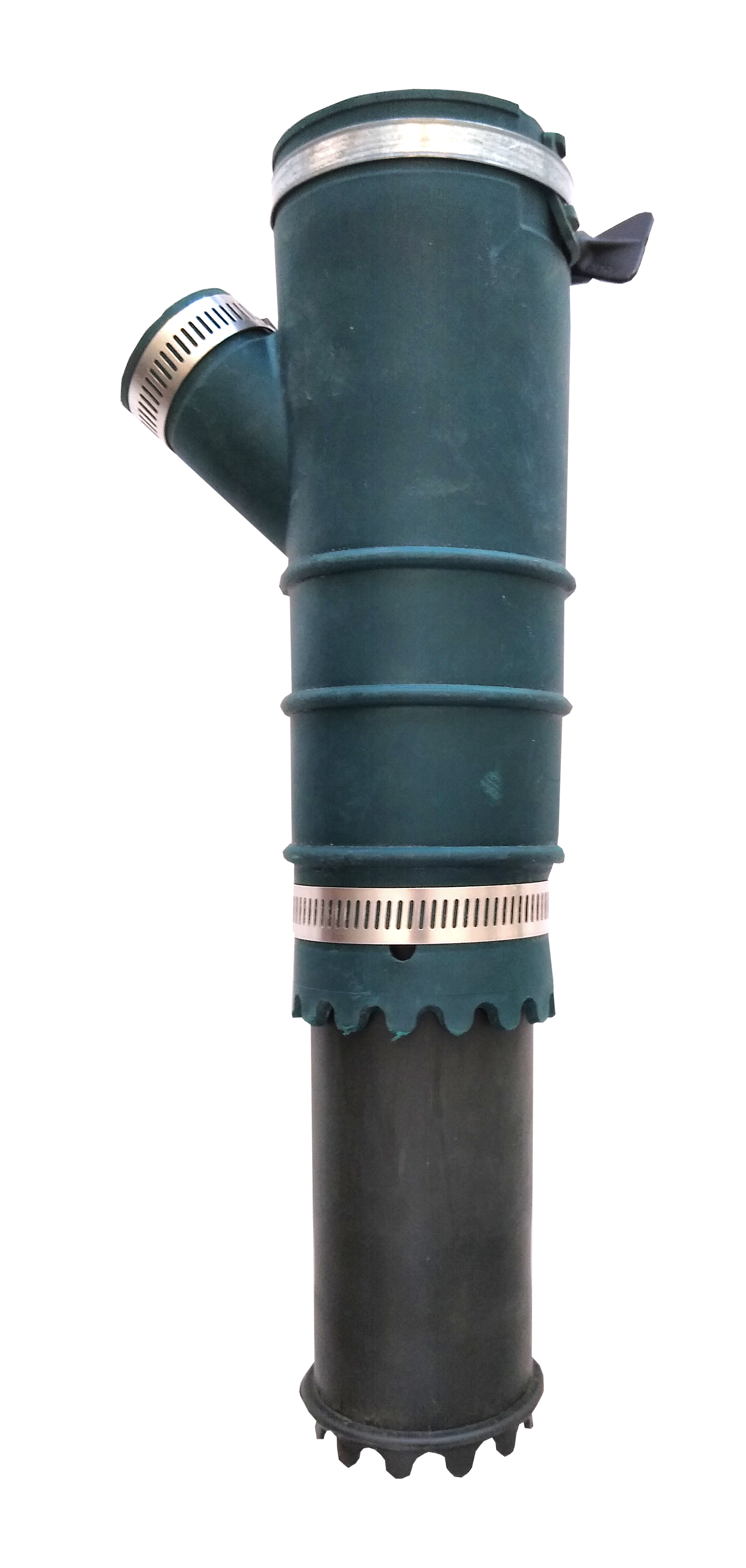

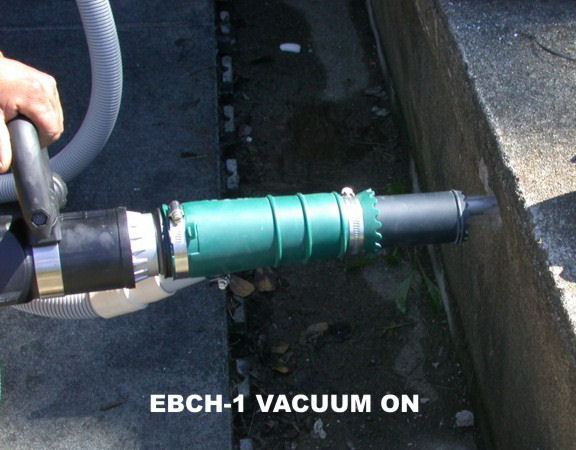

Rubber Dust Boot with Extension Tube.

Rubber Dust Boots with Extension Tube
(optional, not included)







Versatile, Durable, USA Made

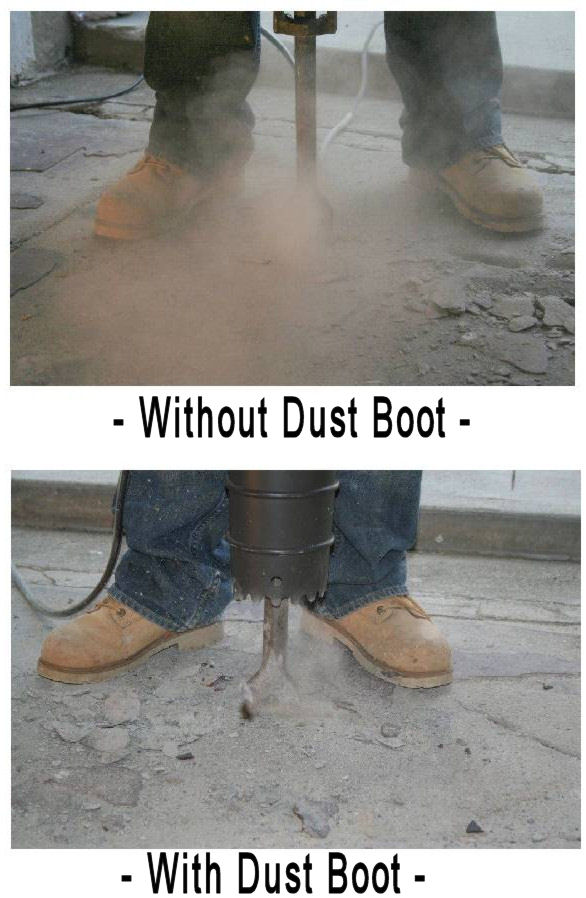

  • Compact, flexible rubber cone-shape shroud for dust control
  • Used for drilling and chiseling concrete, mortar, lead paint and asbestos abatement
  • Fits 15 lb Pneumatic and Electric SDS Max Hammers
  • Made in the USA of sturdy, abrasive, chemical and UV resistant polyurethane elastomer (1/8" American rubber).



Installation, Description

  • Dust Boot slip over the chisel end of 15 lb Pneumatic or Electric SDS Max Hammers

  • Position the vacuum port opening to the side of the hammer

  • Tighten the hose clamp (included) to secure the dust boot to the hammer

  • Recommended vacuum / dust extractor attachments:

    • Reduction Adapter, #RA1512S | 119219 - inserts into the boot's dust port and secure by tightening the included screw clamp

    • Hose Cuff - fits onto the Reduction Adapter (ref. photo, right)

      • D1515S - accepts a 1-1/2" hose

      • D2015S - accepts a 2" hose.

Available Vacuum
Hose Cuffs

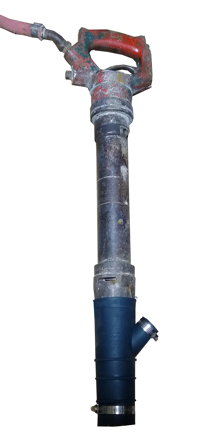

Attached to 15lb
Pneumatic Hammer

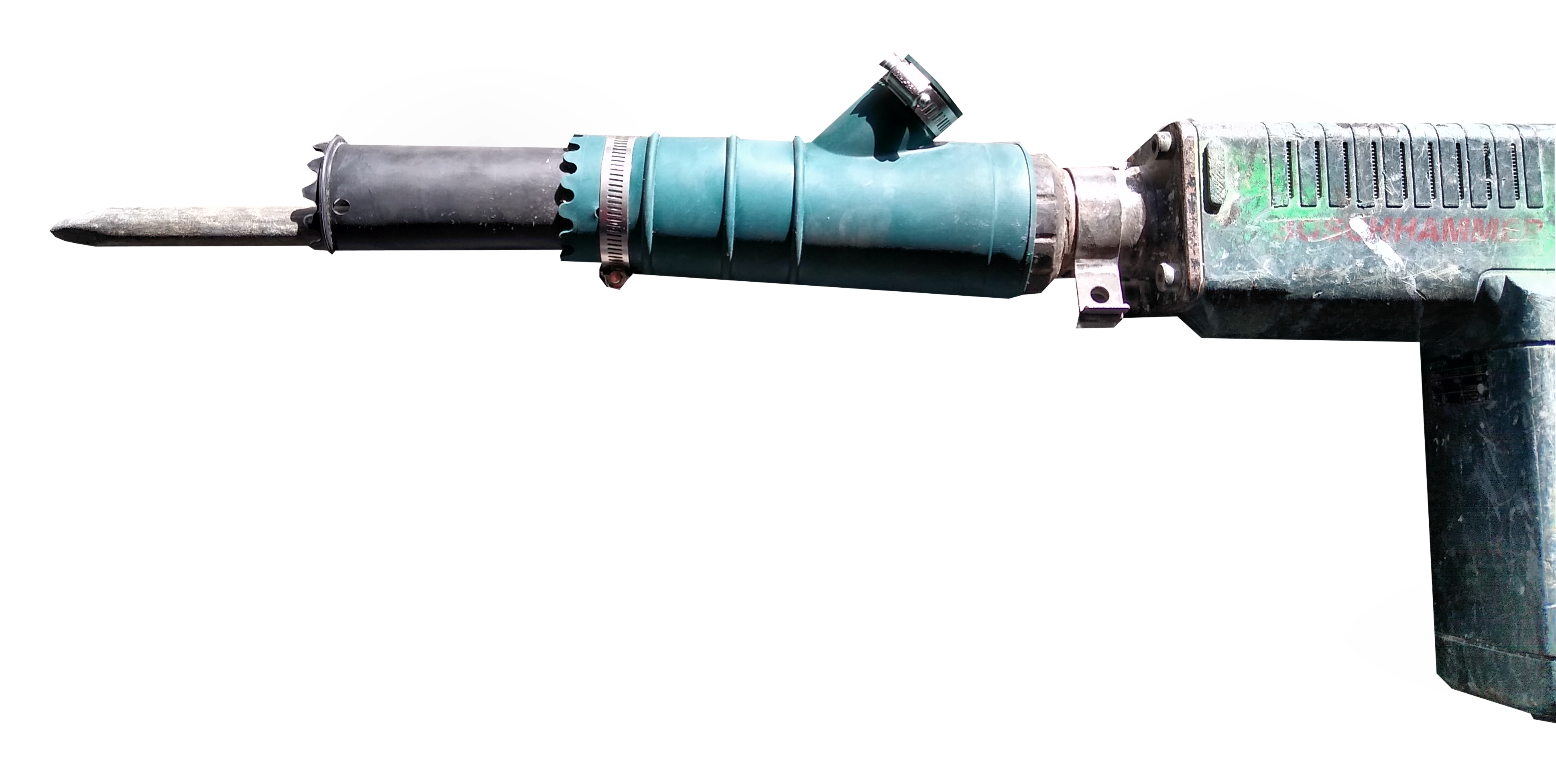

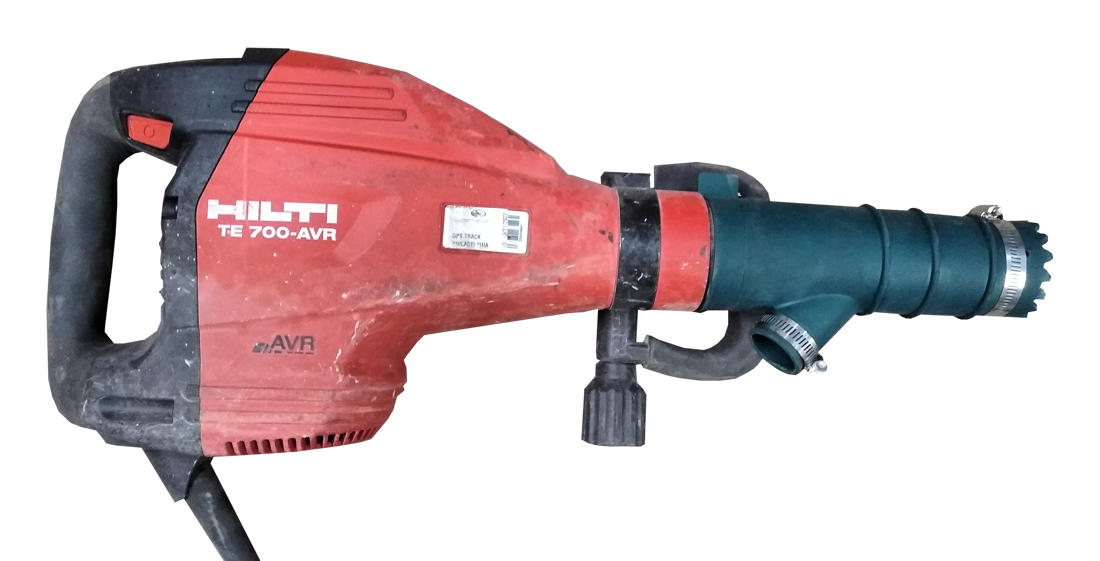

Attached to SDS Max Hammers



Pricing / Ordering:

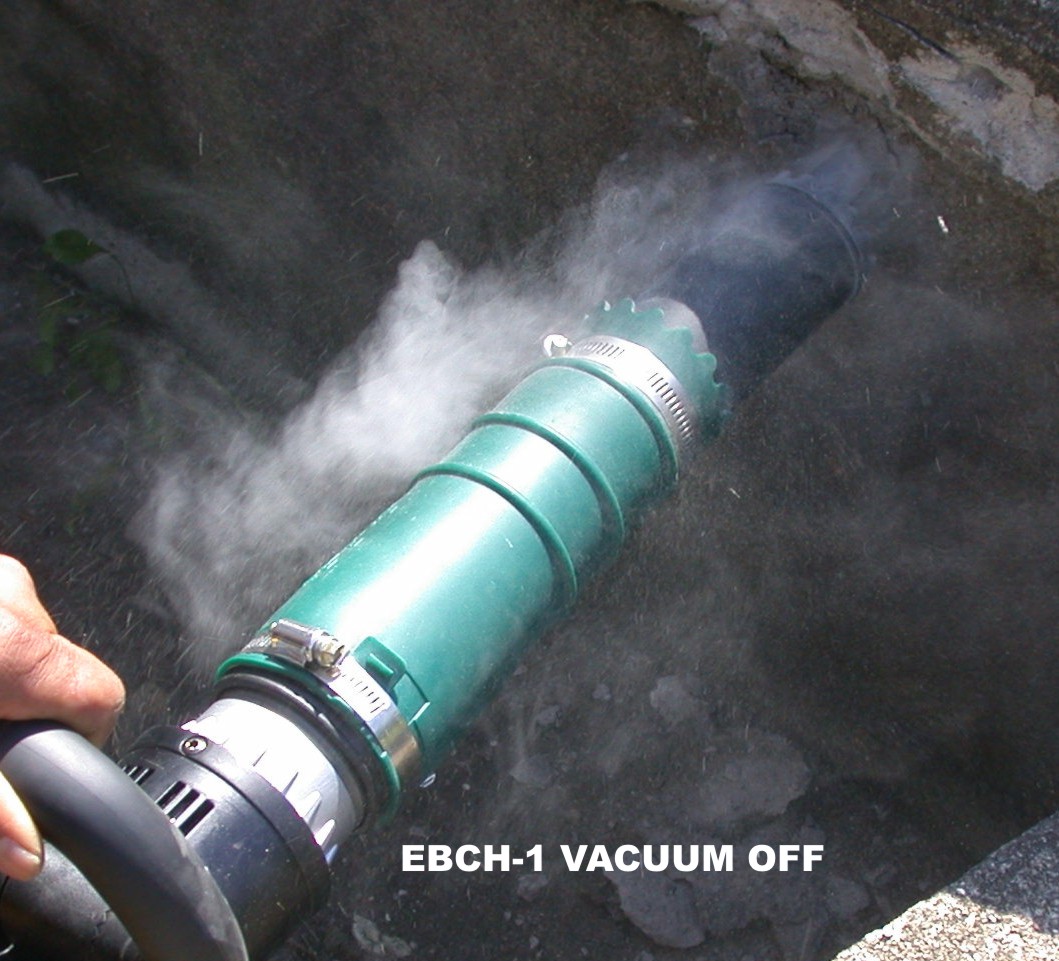

Rubber Dust Boot:  #EBCH-1     $120.00

  • Fits 15 lb. Pneumatic and SDS Max Electric Hammers
  • Dimensions:  2-7/8" ID Opening x 8-3/4" OAL, 1-1/4" ID vacuum port opening.



Extension Tube --- for use when using longer chisels over 14".

Optimum Dust Control - obtained when 2" - 3" of the chisel extends beyond the boot or extension tube

$30.00             #EBCH-1TUB.  Chisel Extension Tube, 10"

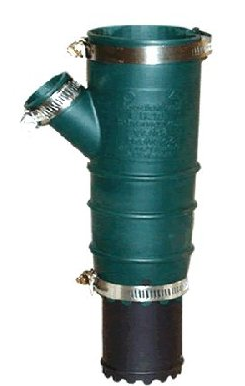

Rubber Chipping Hammer Dust Boot - Small Size, shown w Extension Tube (not included).

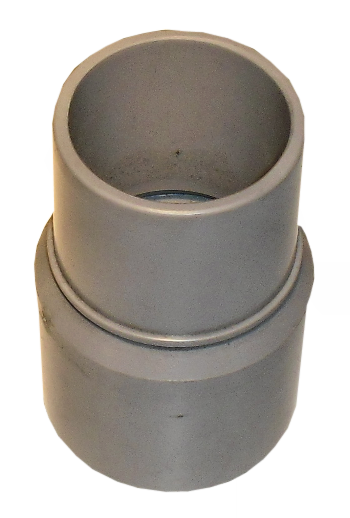

Hose Cuff:  Reduction Adaptor

$19.00             #119219     Reduction Adaptor, 1-1/2" OD x Taper Port

  • 1-1/2" OD end accepts one of the following hose cuffs (for 1-1/2" or 2" hose)
  • Taper end inserts into the exhaust port of the Dust Boot





Reduction Adaptor for Rubber Dust Boot.

Hose Cuff:  Hose to Reduction Adaptor

$  9.00        #D1515S     1-1/2" (F) Thread x 1-1/2" ID (M) Smooth

  • Thread-end accepts 1-1/2" vacuum hose
  • Smooth-end fits the Reduction Adapter, #119219

$16.00        #D2015S     2" (F) Thread x 1-1/2" ID (M) Smooth

  • Thread-end accepts 2" vacuum hose
  • Smooth-end fits the Reduction Adapter, #119219.





Hose to Reducer Cuff Connection.
