Hex Pin System   >   15" Hex Pin Plate


Floor Preparation System

Concrete Grinding, Sanding, Polishing, Coating Removal

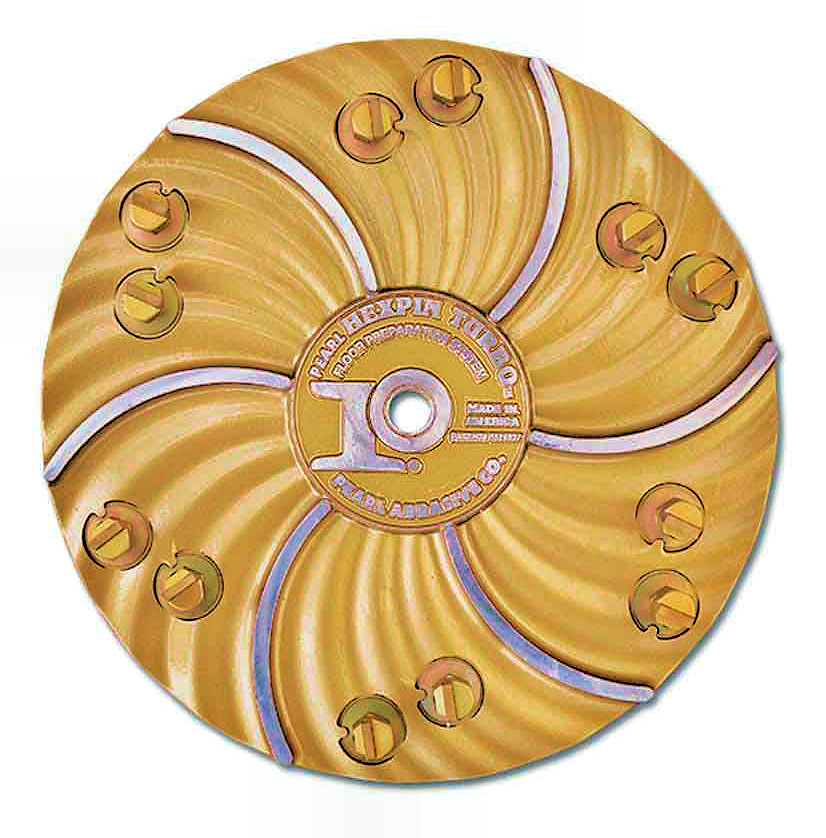

15" Hex Pin Plate



Fluted Plate
(shown with 12 carbide cutters installed)

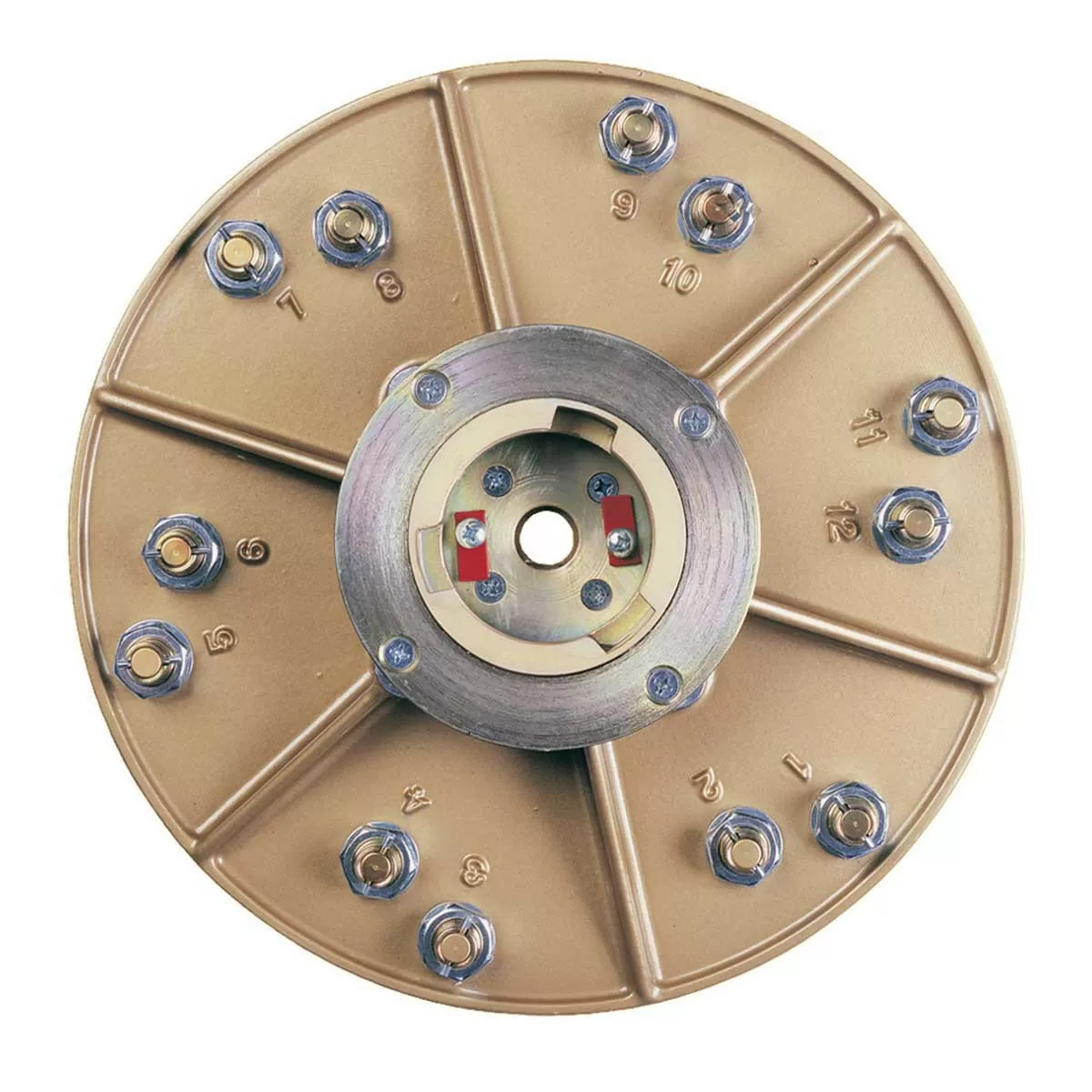

Clutch System System
(back of plate)







15" Hex Pin Plate with Clutch
--- accepts an assortment of tools for Grinding, Sanding, Polishing & Coating Removal

  • Spring-mounted pins allow the attachments to easily float over rough surface and provides a uniform finish on uneven floors
  • Fluted plate design helps maintain dust control
  • Durable, solid cast aluminum plate
  • Equipped with (12) Pin Holes to accept an assortment of attachments
  • Attachment Pins are secured with a HD Spring and EZ Locking Pin (right)
  • Universal 3-tab keyway (on the clutch) fits standard floor buffers

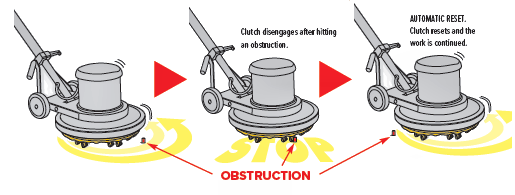

  • Clutch System:
    • safely prevents:
      • coupler breakage
      • damage to the grinder and plate
      • injury to the operator
    • instantly disengages if the tools hit an obstruction (i.e. bolt)
    • resets itself
    • may be manually set to prevent the clutch from disengaging



Pricing
15" Plates are equipped and sold as follows:

  • Clutch System

  • Mounting hoses (12) to accept the various attachments

  • Choice of attachment, as shown:





15" Hex Pin Plate with Spring-Mounted Tools
--- Assembled, Ready to Use

HEX1712SGCLT

Plate & Clutch w/ (12) Spring-Loaded Scrape & Grind Pads --- Removes Coatings, Sealers and Grinds Concrete at the same time

$1,750.00

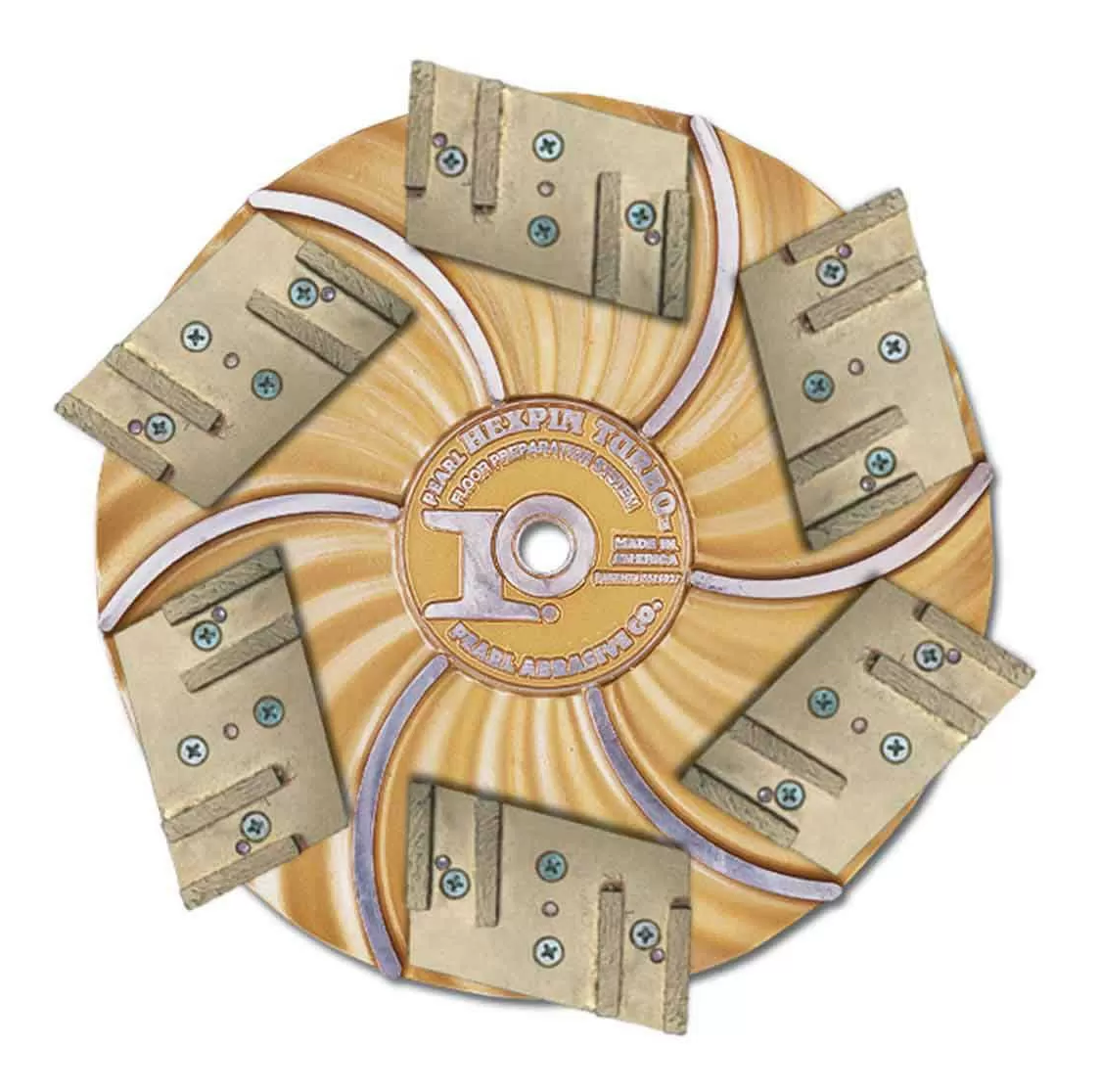

HEX1764CLT

Plate & Clutch w/ (6) Spring-Loaded Diamond Blocks --- Aggressive, HD Long Life, Coarse 16 Grit - Grinds Concrete, Removes Trowel Marks, Sealers, Residual Coatings, Coarse Grit for Bonding of Coatings

$1,620.00


HEX17QCCLT

Plate & Clutch w (6) Spring-Loaded Cup Wheel Holders & Nuts, accepts 4" - 5" cup wheels x 7/8" arbor (shown with cup wheels, not included)  --- Attach your favorite cup wheel including PCD for aggressive coating removal, 20 Grit S-Segment for Bonding of Coatings, Arrow Cups to Chip Coatings and Grind Concrete at the same time.  See our Selection of Diamond Cup Wheels.

$890.00

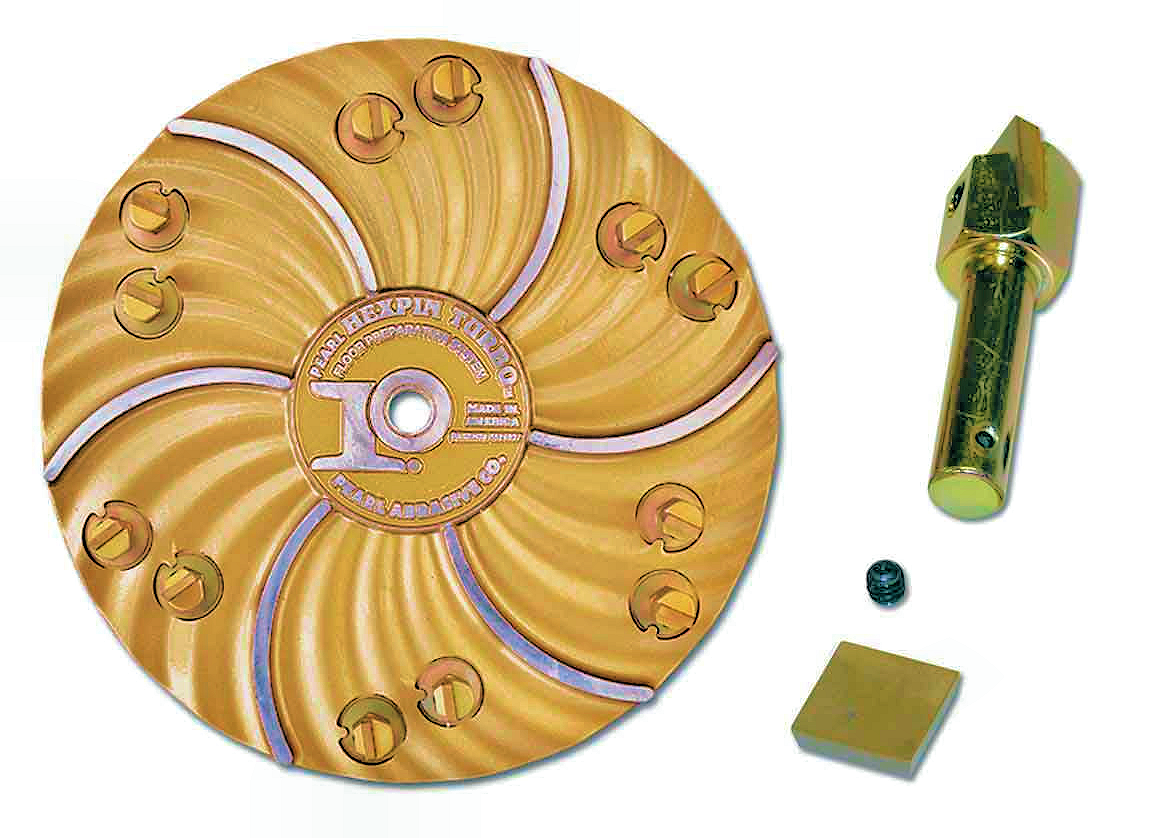

HEX17CBDCLT

Plate & Clutch w (12) Spring-Loaded Carbide #1 Cutters  --- Recommended to Remove Thinset, Thick Masitcs, Coatings, Rubber, Ice, Paint, etc.  4-Useable Edges.

$1,090.00

HEX17CBD4CLT

Plate & Clutch w (12) Spring-Loaded Carbide #4 Scrapers  --- Scarifier Carbide Chip.  Very Aggressive, HD.  Recommended to Scraping/Removing Adhesives, urethane, Epoxy, Thinset, Carpet Backing.  8-Useable Edges.

$1,340.00

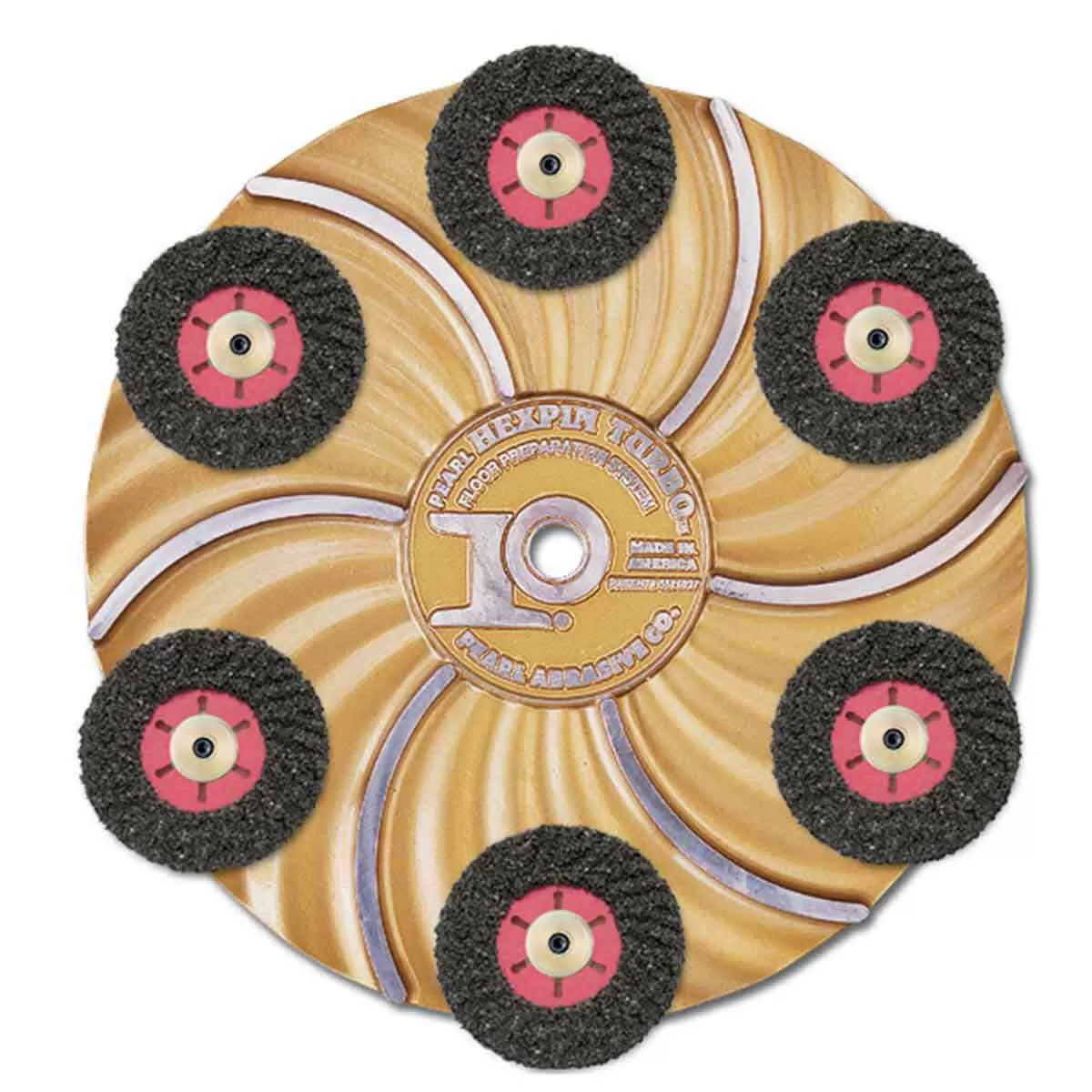

HEX17FTCCLT

Plate & Clutch w (6) Spring-Loaded Abrasive Disc Holders, accepts 4.5" ZEC Discs, includes (6) discs  --- Recommended to Residual Coatings, Mastic, Paint.  16 Coarse Grit is Good to Prepare Concrete Floor for Coating Adhesion,  Removes Rust from Metal Surfaces.  See our Selection of Abrasive ZEC Discs.

$870.00

HEX17BPDCLT

Plate & Clutch w (6) Spring-Loaded Hook'n Loop Backing Pads, accepts 3" Polishing Pads --- Attach Semi-Metal and Resin Pads to Polish, Restore, Maintain Concrete, Marble, Granite Floors.  Dry or Wet Use.  See our Selection of Diamond Polishing Pads.

$890.00



Related Products

Grinder, Replacement Tooling, HEPA Dust Extractor

Diamond Cup - S-Segment
17" High Torque
Low RPM Grinder
Scrape'N Grind HD Diamond Blocks Cup Wheels #1 Cutter

All Steel Gears & Coupler

Combination Tool Supreme Quality Carbide, 4-Edges
  • Amazing Production & Durability
  • HD Induction, Triple Gear Reduction Motor
  • Geared for Torque, Low 150 RPM
  • Operates all day from a 15 Amp Circuit
  • 100% Zero (0) Maintenance, TEFC Motor - dust and water protected.
  • Fits into the #1 Carbide Holder
  • 6 or 12 pads can be used with the 15" plate
  • Scrapes away mastic, thinset, etc and grinds the concrete at the same time.
  • Just remove the #1 Carbide Cutter from the hold and install the Scrape'N Grind attachment.
  • Very Aggressive, Long Life
  • Coarse 16 Grit
  • Cost Effective - replace just the diamond pad
  • Also used to remove residual coatings.
  • Wide selection of cup wheels
  • Attach (6) 5" cup wheels onto the 15" plate
  • Grind and sand concrete
  • Remove coatings, glue, mastic from concrete sufaces.
  • Recommended for thick coatings, thinset, rubber, ice removal
  • Same holder (pin) is used to hold the Scrape'N Grind Tool.

Pearl V-Max Vacuums, 120 and 240 volt. Abrasive ZEK Discs w/ Cooling Holes Floor Machine Semi-Metal Pads, 3" x 8mm Floor Machine Resin Pads, 3" x 9mm
HEPA Dust Extractor #4 Scraper ZEC Discs Semi-Metal Diamonds Resin Diamonds
  Carbide, 8-Edges Abrasive 16 Grit Transitional Pads Polishing Pads
  • 258 CFM, 100" H20
  • Operates from a 20 Amp, 120 Volt Circuit
  • HD Durability
  • Extremely HD, Durable, Well-Built
  • Outperforms, outlasts similar dust extractors in its class
  • Perfect compliment to the 15" Hex Pin Plate.
  • Includes 2" x 25' hose with Assorted Floor Sweep Tools
  • Reverse Pulse Self-Cleaning.
  • Scarifer Chip
  • HD Removal of Toughest Coatings or Sealers
  • Very Aggressive
  • Economical way to scarify concrete.
  • Economical way to remove paint, tar, mastics, etc. from concrete, masonry, wood, fiberglass, etc

  • Mastic will not load on the disc nor will the material melt

  • A+ to prepare concrete floors for bonding of coatings.



  • Used after metal diamonds (diamond blocks and cup wheels) to remove scratch patterns
  • 30 - 400 Grit Range
  • Premium Grade, Semi-Metal Pads.
  • Used after the Semi-Metal Pads have removed the scratch marks from the metal diamonds (i.e. diamond blocks and cup wheels)
  • 50 - 3000 Grit Range
  • Resin pads begin the polishing process
  • Used to polish and maintain concrete, marble, granite
  • HD Durability, Premium Grade, Long Life.
