Replacement hose connectors for dust shrouds.

Connections Made Easy
Select a Connector by Hose Size				Miscellaneous Connectors			Dust Shroud Connectors
Assortment Pack	2"	1-12"	1-1/4" 1-3/8"	Coupler	Adapters	Y-Port	Cross Reference
Hose Size of Vacuum	---	Metabo, USA Dust Guard	Bosch, Fein, Dewalt, Hilti

Assortment Pack

Screw Cuffs & Adapter - 11 Pcs.

Assortment of our most common connectors
Threads onto 1-1/4", 1-3/8", 1-1/2" and 2" hoses
Includes inlet ports for vacs, the most common connectors and our universal "fit-all" adapter.

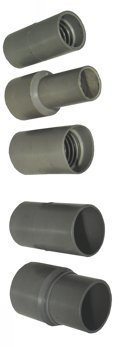

Assorted Screw Cuffs - thread-on x smooth interior.

Hose Cuff Assortment Pack
11 Pc Pack

Fits 1-1/4", 1-3/8", 1.5", 2" hoses, vacuum inlet ports, dust shrouds, includes universal adaptor.

(1) #201751 | D1512S — threads onto 1.5" hose x 1.25" ID Smooth-End ~ attaches to dust shrouds with 1.25" OD including our “blue” HD cup wheel shrouds, Dewalt’s tuck pointing and surface grinding cup wheel shrouds
(1) #168896 | D1515S — threads onto 1.5" hose x 1.5" ID Smooth-End ~ attaches to dust shrouds with 1.5" OD including Bosch tuck point shroud & Metabo ‘clip-on’ tuck shroud. Also used as the inlet cuff for Dewalt DW012 vac, to enable it to use a 1.5" hose for increased CFM
(2) #194324 | D1520S — threads onto 1.5" hose x 2.0" ID Smooth-End ~ the most widely used cuff. Attaches to tuck point guards with 2" OD including USA Dust Guard, Dust Director and Metabo
(1) #201751 | D1212S — threads onto 1-1/4" hose x 1.25" ID Smooth-End ~ attaches to dust shrouds with 1.25" OD including our “blue” HD cup wheel shrouds, Dewalt’s tuck pointing and surface grinding cup wheel shrouds
(1) #201064 | D1215S — threads onto 1-1/4" hose x 1.5" ID Smooth-End ~ attaches to dust shrouds with 1.5" OD including all Bosch tuck pointing shrouds
(1) #109015 | D1220S — threads onto 1-1/4" & 1-3/8" hose x 2.0" ID Smooth-End ~ attaches to dust shrouds with 2.0 OD including USA Dust Guard, Dust Director and Metabo
(2) D2020S | 298665 — threads onto 2" hose x 2" ID Smooth-End ~ attaches to dust shrouds with 2" OD. This same cuff fits into the inlet port of most vacuums to enable use of 2" hose which increases CFM
(1) D2015S | 226652 — threads onto 2" hose x 1.5" ID Smooth-End ~ attaches to dust shrouds with 1.5" OD including Bosch tuck point & cup wheel shrouds
(1) #119221 | Universal Adapter — 1.5" OD x Taper End. Taper end + unique material securely installs and hold itself into most dust ports including European, Asian, Hilti, Dewalt. 1.5" OD accepts any 1.5" ID Smooth-End Hose Cuff.

$ xxx.xx

#HCVP

* Cuffs are in stock. Please call for current pricing or receive a quote by entering a quantity. To receive the quote, the item is placed in the shopping card and labeled, "Quote Request." Within the business day you'll receive the quote.

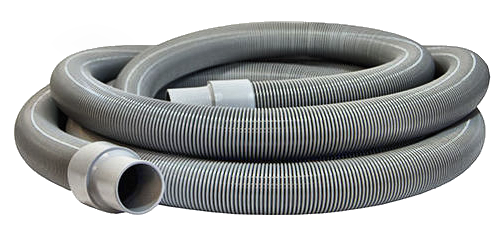

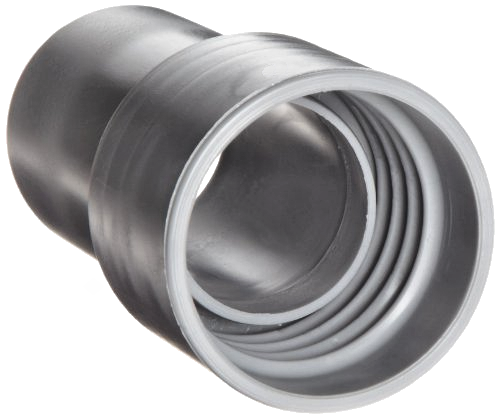

Screw-On Hose Cuffs
Hose Size: 2" --- Threads on to 2" Hose
	#D2020S \| 298665	2" ID Smooth-End	$ xx.xx
	#D2020S - 2" ID Smooth-End Attaches to dust shrouds with 2" OD including tuck point guards from USA Dust Guard, Dust Director®, Metabo This same cuff fits into the inlet port of most vacuums, uses a 2" hose. By using a 2" hose, CFM increases. D2020S replaces 1-1/4", 1-3/8" and 1-1/2" diameter hoses.

	#D2020SS	2" ID Smooth-End	$ xx.xx
	#D2020SS - SWIVEL CUFF - 2" ID Smooth-End Identical to the above D2020S but with 360° swivel feature for easier maneuvering of the hose and dust shroud.

	#D2015S \| 226652	1.5" ID Smooth-End	$ xx.xx
	#D2015S - 1.5" ID Smooth-End Attaches to dust shrouds with 1.5" OD including all Bosch tuck point and cup wheel shrouds.

Screw-On Hose Cuffs
Hose Size: 1-1/2" --- Threads on to 1.5" Hose The following Vacs use 1-1/2" Hose: Metabo, USA Dust Guard
	#D1512S \| 201751	1.25" ID Smooth-End	$ xx.xx

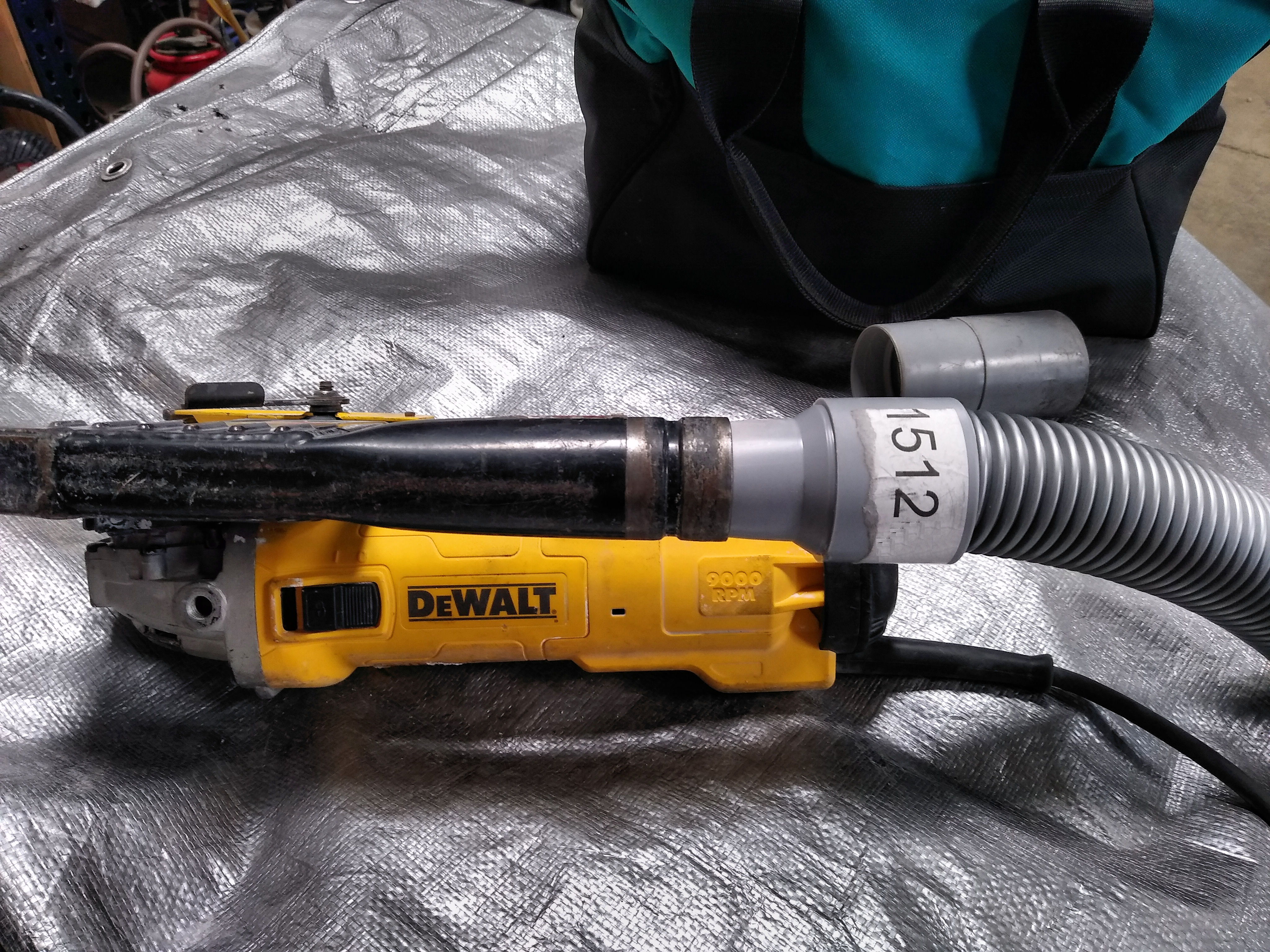

	#D1512S --- 1.25" ID Smooth-End attaches to dust shrouds with 1.25" OD including our “blue” HD cup wheel shrouds and Dewalt’s tuck pointing and surface grinding cup wheel shrouds

	#D1515S \| 168896	1.5" ID Smooth-End	$ xx.xx

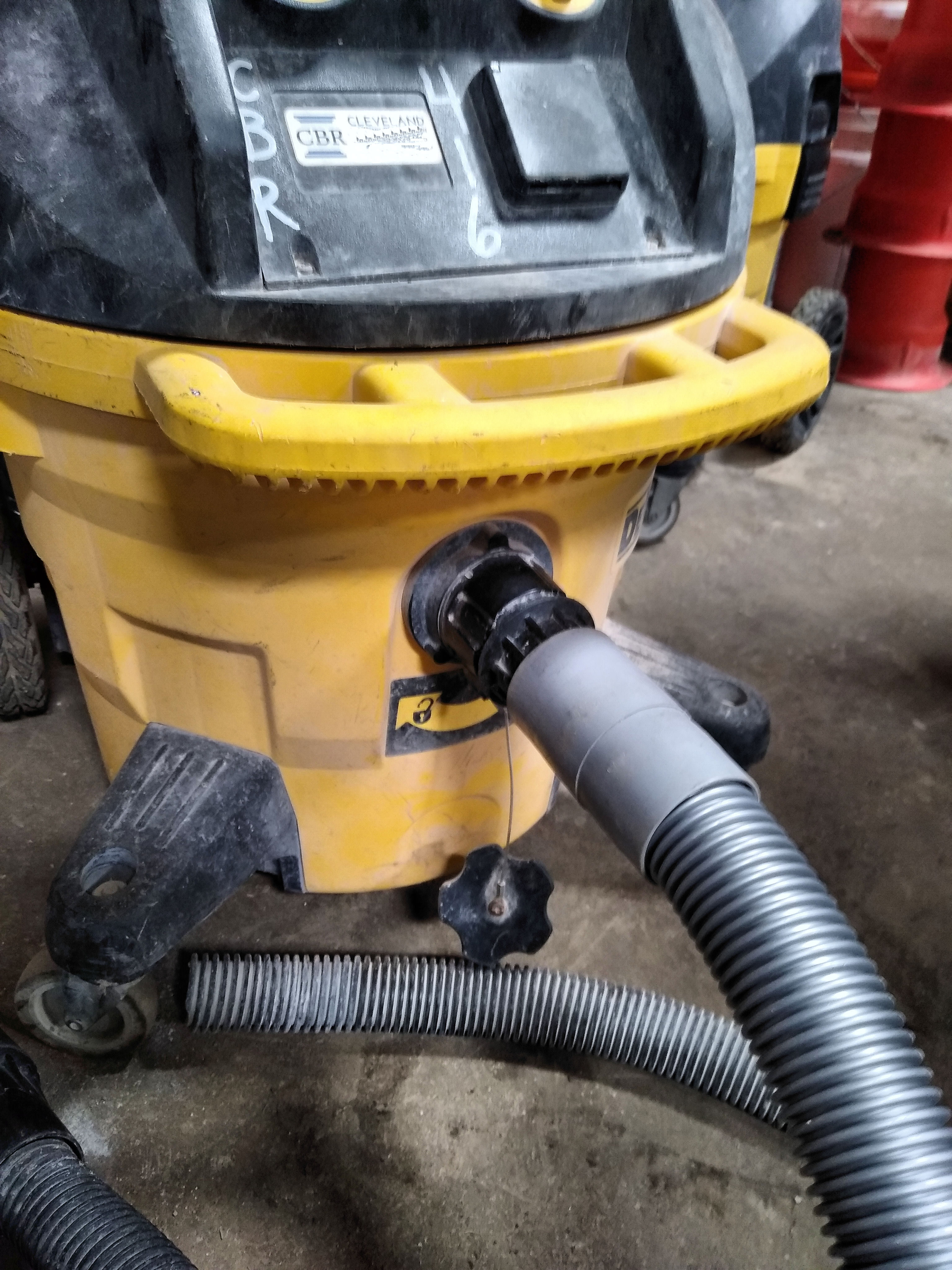

	#D1515S --- 1.5" ID Smooth-End attaches to dust shrouds with 1.5" OD including Bosch tuck point shroud & Metabo ‘clip-on’ tuck shroud Also used as inlet cuff for Dewalt DW012 vac to use a 1.5" hose.

	#D1520S \| 184324	2" ID Smooth-End	$ xx.xx
	#D1520S --- 2" ID Smooth-End used with tuck point guards with 2" OD including USA Dust Guard, Dust Director®, Metabo, Soff-Cut 150 Saw.

	#D1515T \| 201055	1.5" ID Threaded-End	$ xx.xx

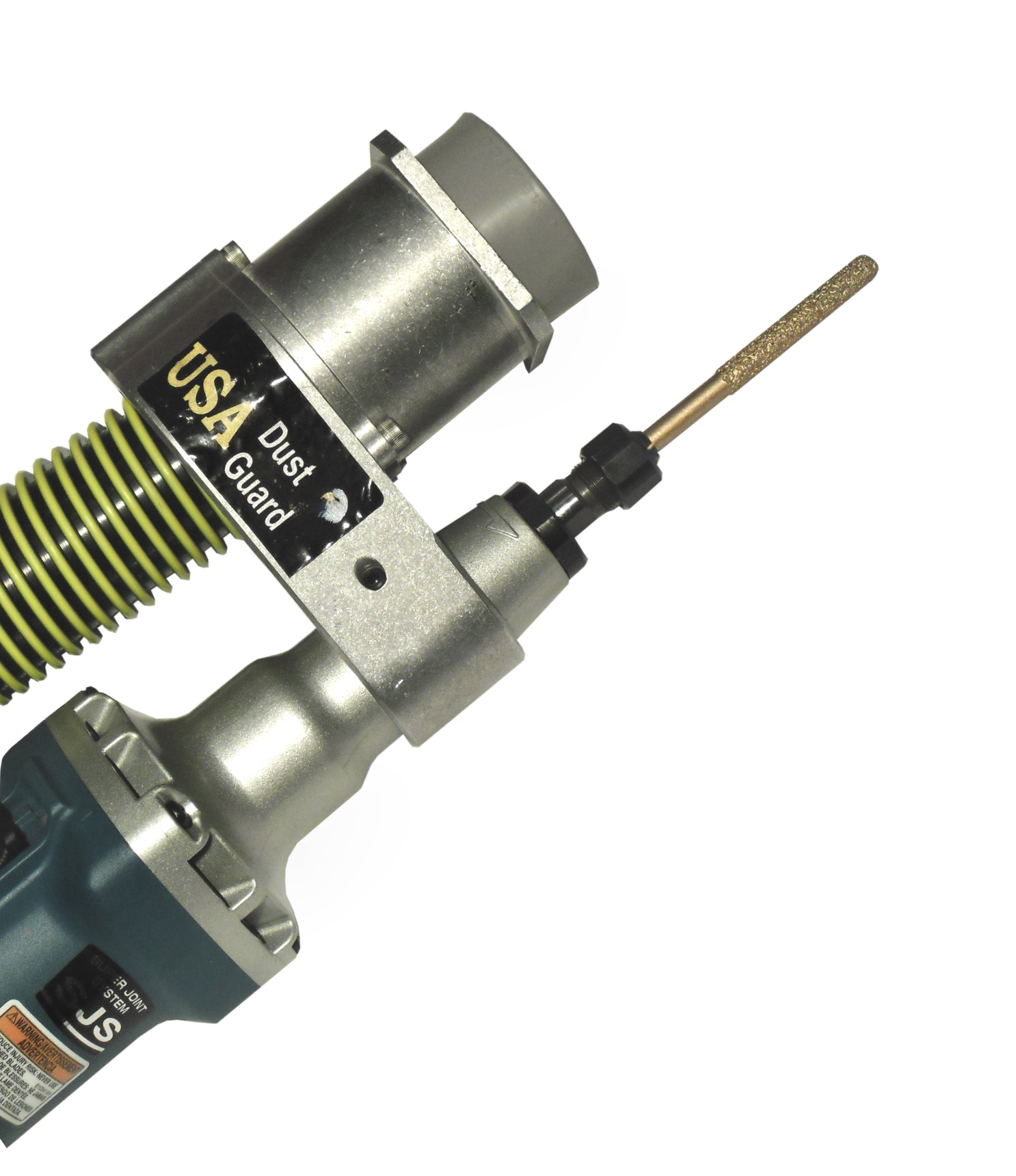

	#D1515T --- COUPLER - 1.5" ID Dual Threaded-Ends used with Glitter Bit Dust Controller and to connect [2] 1.5" hoses together.

Screw-On Hose Cuffs

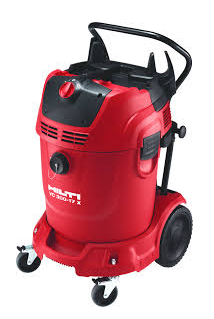

Hose Size: 1-1/4" / 1-3/8" The following cuffs thread onto 1-1/4" / 1-3/8" hose The following vacs use a 1-1/4" / 1-3/8" hose: Bosch, Dewalt, Fein, Hilti.
	#D1212S \| 201071	1.25" ID Smooth-End	$ xx.xx

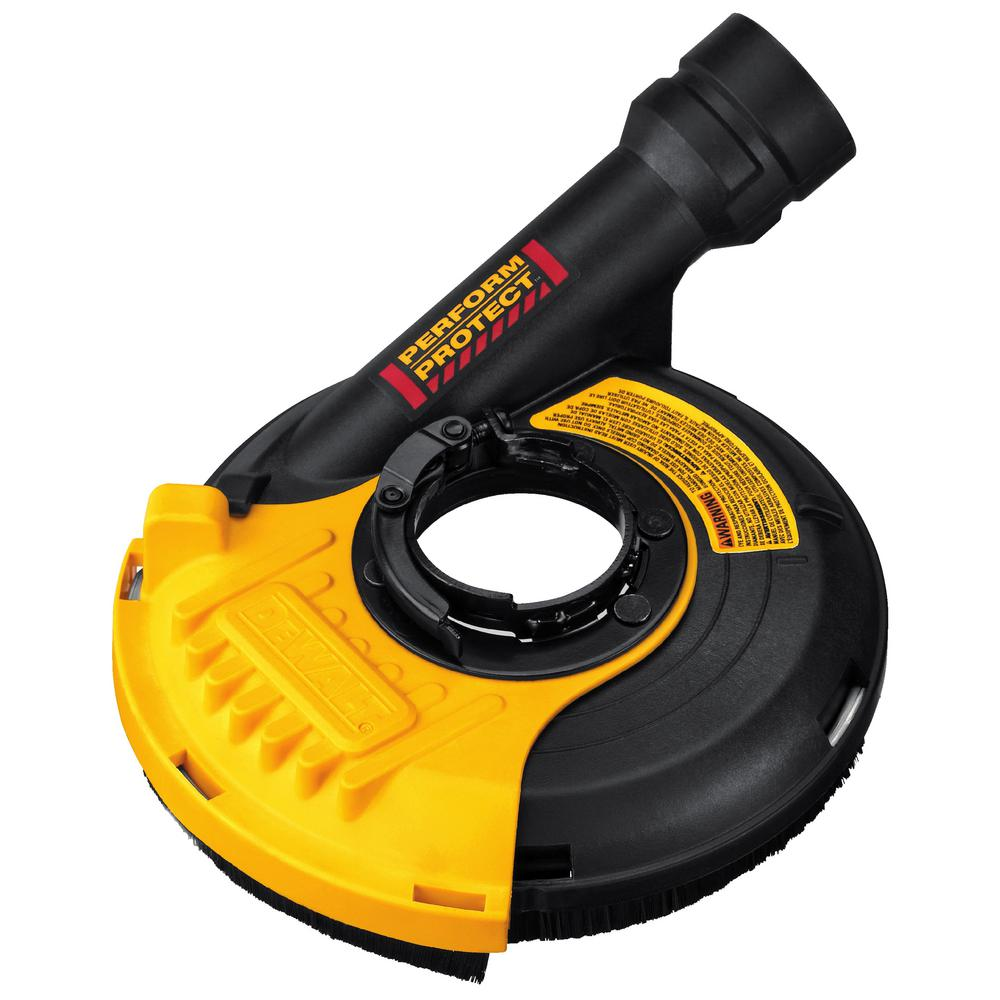

	Attaches to dust shrouds with 1.25" OD dust port including our "blue" HD Shroud for Cup Wheel and Dewalt's Tuck Point and Cup Wheel shrouds.

	#D1215S \| 201064	1.5" ID Smooth-End	$ xx.xx
	Attaches to dust shrouds with 1.5" OD dust port including all Bosch Tuck Point shrouds.

	#D1220S \| 109015	2" ID Smooth-End	$ xx.xx
Attaches to dust shrouds with 2.0" OD dust port including our USA Dust Guard's universal 6" Tuck Point Guard and Metabo's.

Coupler & Adapters

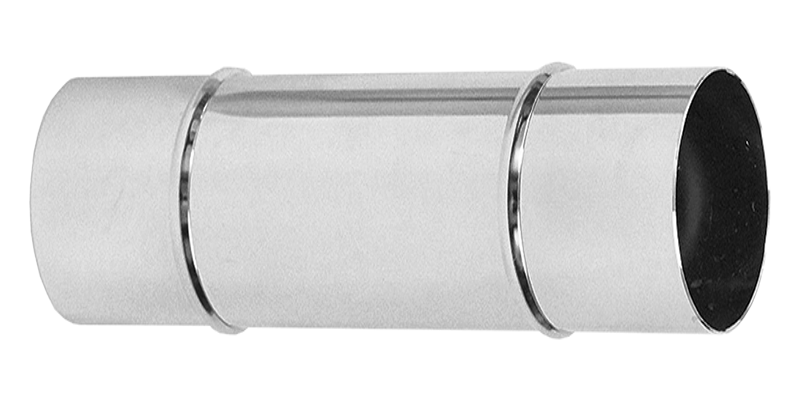

Coupler
2" Outside Diameter Chrome Plated Steel	#D-HC	Hose Connector	$ xx.xx
	Joins 2 hoses together including: 1-1/2" to 1-1/2" 2" to 2" 1-1/2" to 2" Ends are 2.0" OD, select the above Connectors with a 2" ID - as follows 2" Hose, select D2020S (2" thread-on x 2" ID smooth) 1-1/2" Hose, select D1520S (1-1/2" thread-on x 2" ID smooth.)

Adapters

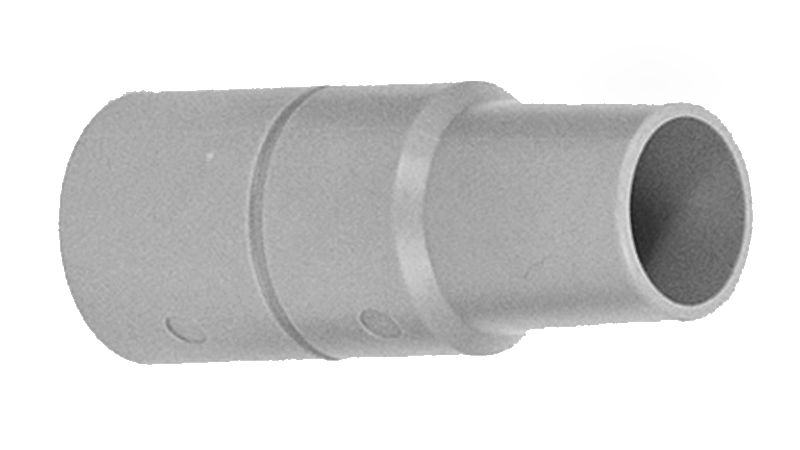

	#119221	Reducer	$ xx.xx
#119221 - Reducer	1.5" OD x Taper-End taper end installs into Hilti’s Tuck Point and most other shrouds including our D1900 Drill Bit Shroud and Hollow Shank Drill Bits the wide end (1.5" OD) accepts any of the above Connectors with a 1.5" ID.

	#H32T	Enlarger	$ xx.xx
#H32T - Enlarger	2" x 3" Transition Cuff used to attach a 1.5" or 2" hose to saws or grinders with a 3" OD dust port 3" end is secured to the outlet with a metal banding clamp (not included) 2" end uses the any of the above Connectors with a 2" ID.

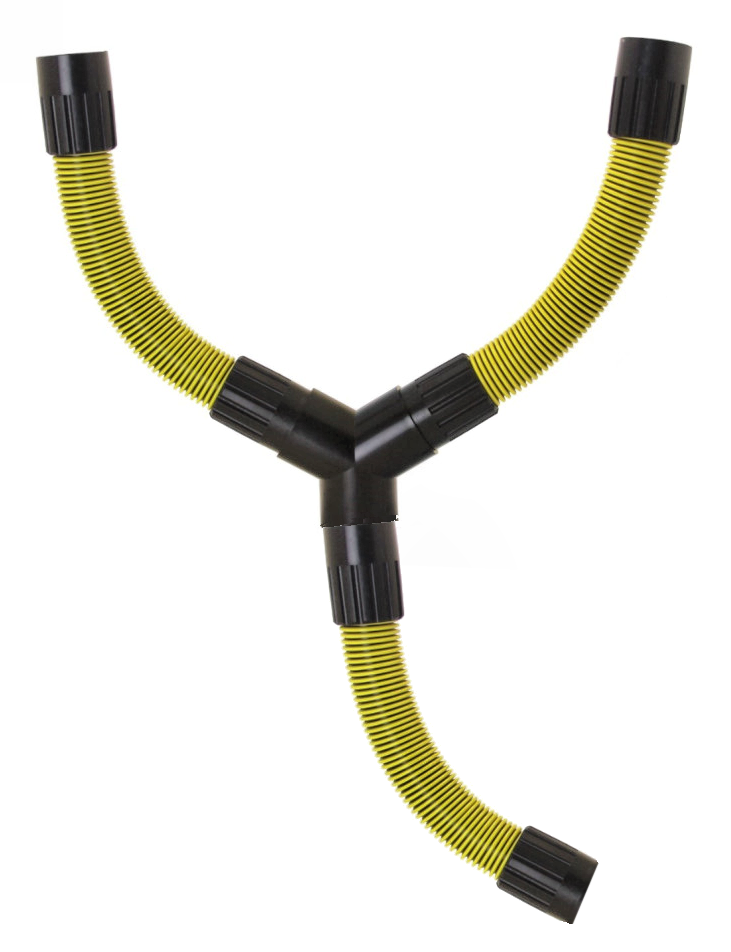

Y-Port Connector
Dual Vac or 2-Dust Shroud Connection
Y-Port: Attach (2) 1.5" or 2" Hoses to Create (1) 2" Hose	#D0014	Y-Port (shown left w/o the hose)	$ xx.xx
	Includes: 1.5" pigtails (2) w/ 2" OD hard plastic cuffs (2). Each leg of the cuff and the hard plastic inlet cuffs accepts the D2020S connector (not included)
	#D0016	Y-Port, complete assembly (shown left)	$ xxx.xx
	Includes: 1.5" pigtails (2) w/ 2" OD hard plastic inlet cuffs (2), 2" x 12.5" hose w/ (2) 2" ID smooth connectors #D2020S.
	Provides two (2) Connection Options Connect 2-vacs to increase CFM Operate 2-dust shrouds from 1-vac Cost-Effective Way to Increase: CFM - connection of two vacs Comply to the OSHA Silica Dust Rule for increased CFM - instead of using larger and more expensive dual-motor or 240 volt dust extractors The two legs of the Y-Port accepts (3) different hose diameters using an appropriate screw cuff: #D1220S - for 1.25" hose #D1520S - for 1.5" hose #D2020S - for 2" hose.

Cross Reference: Dust Shroud Connections Match Your Shroud to a Universal Connector - Hose to Dust Shroud Connection
USA Tuck Pointer Metabo Dust Director®	Universal Cup Wheel Shrouds	Glitter Bit Dust Controller	Dewalt Tuck Pointer	Bosch Tuck Pointer

Size: 6"	Sizes: 5", 7"	USA Dust Guard	Size 6"	Size 5"
Accepts a 2" ID Smooth-End Cuff See 1-1/2" or 2" Hose	Accepts a 1-1/4" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2" Hose	Accepts the 1-1/2" Dual Threaded Cuff, #201055 See 1-1/2" Hose	Accepts a 1-1/4" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2" Hose	Accepts a 1-1/2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose

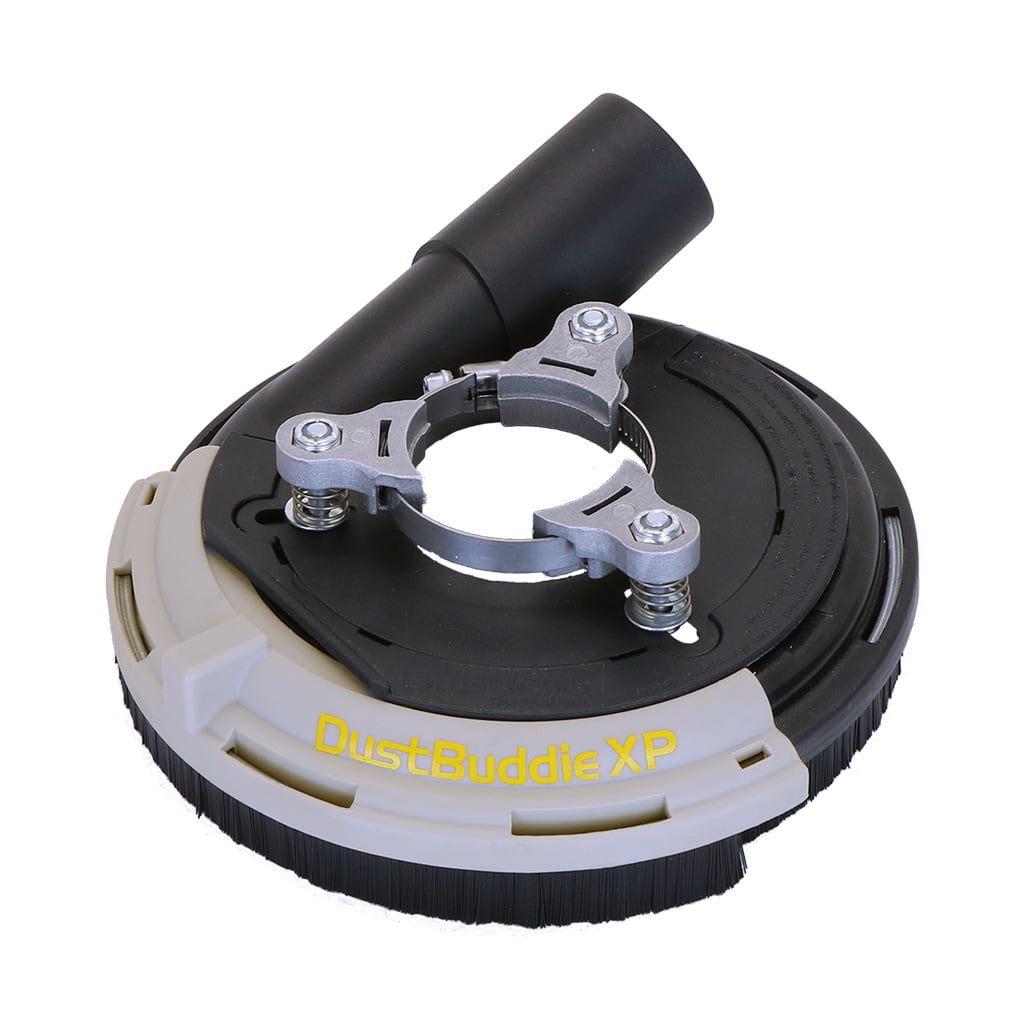

Bosch Tuck Pointer	Cup Wheel Shrouds	Tuck Point Guard	Rubber Dust Boot - Drilling & Chisels -	Drilling: SDS Plus & Straight Shank Bits

Size 5"	Hilti, sizes: 5", 7"	Hilti, size 5"	Fits SDS Max Hammers & 15 lb Pneumatic Hammers	Fits SDS Plus Rotary Hammers & 3-Jaw Chuck Hammer Drills (4-3/8" Max. Drilling Depth)

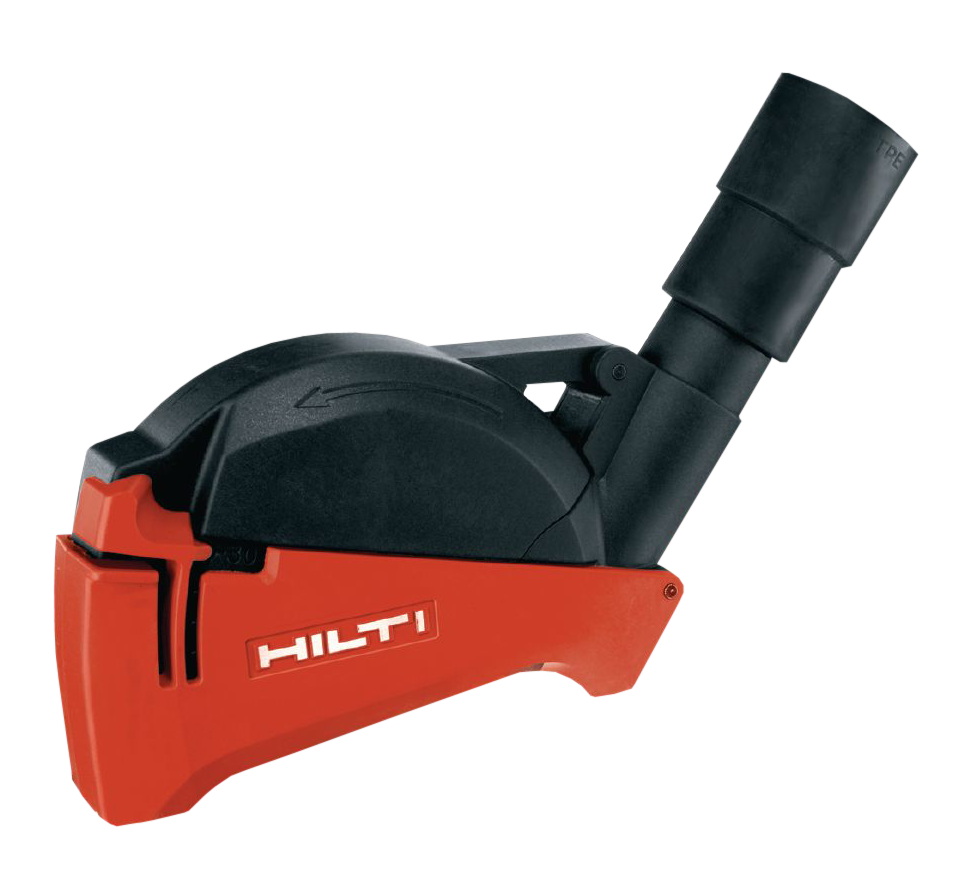

Accepts a 1-1/2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose	Uses Reduction Adaptor #119221- installs into dust port of the Hilti dust shroud Also requires a 1-1/2" ID Smooth-End Cuff to connect the hose to the Reduction Adaptor #119221. See 1-1/4", 1-3/8", 1-1/2", 2" Hose.			Accepts a 2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose.

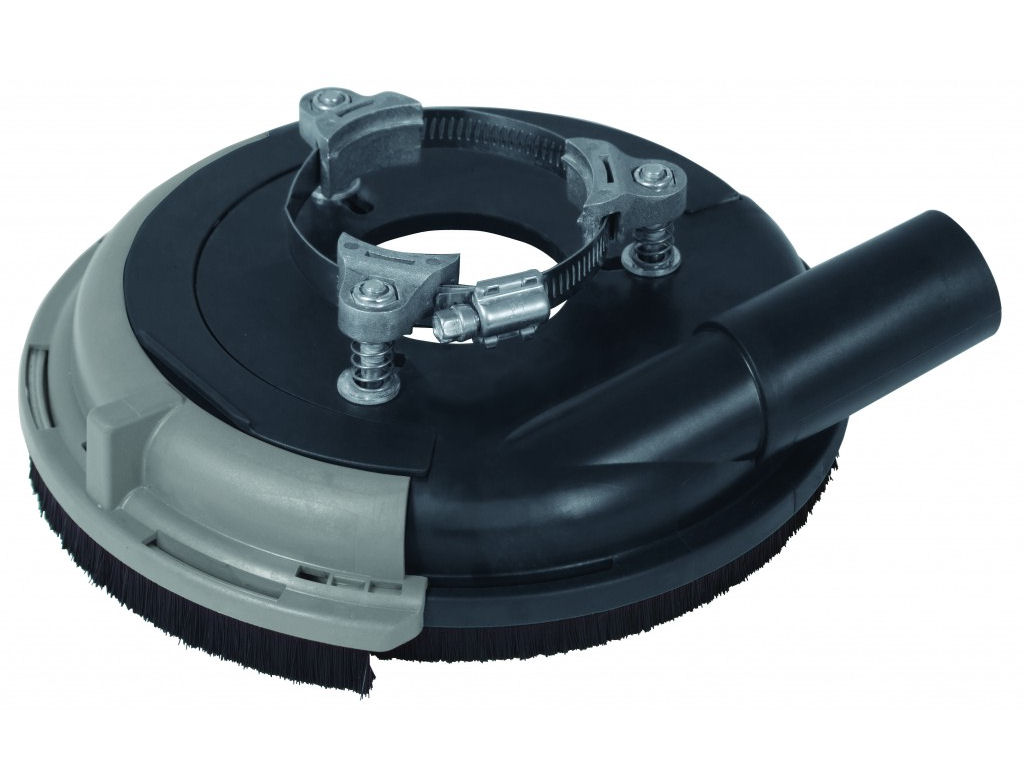

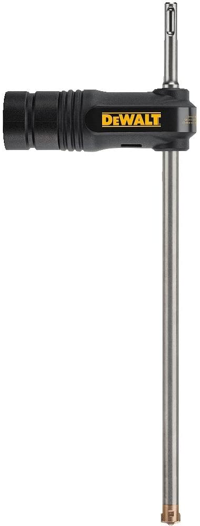

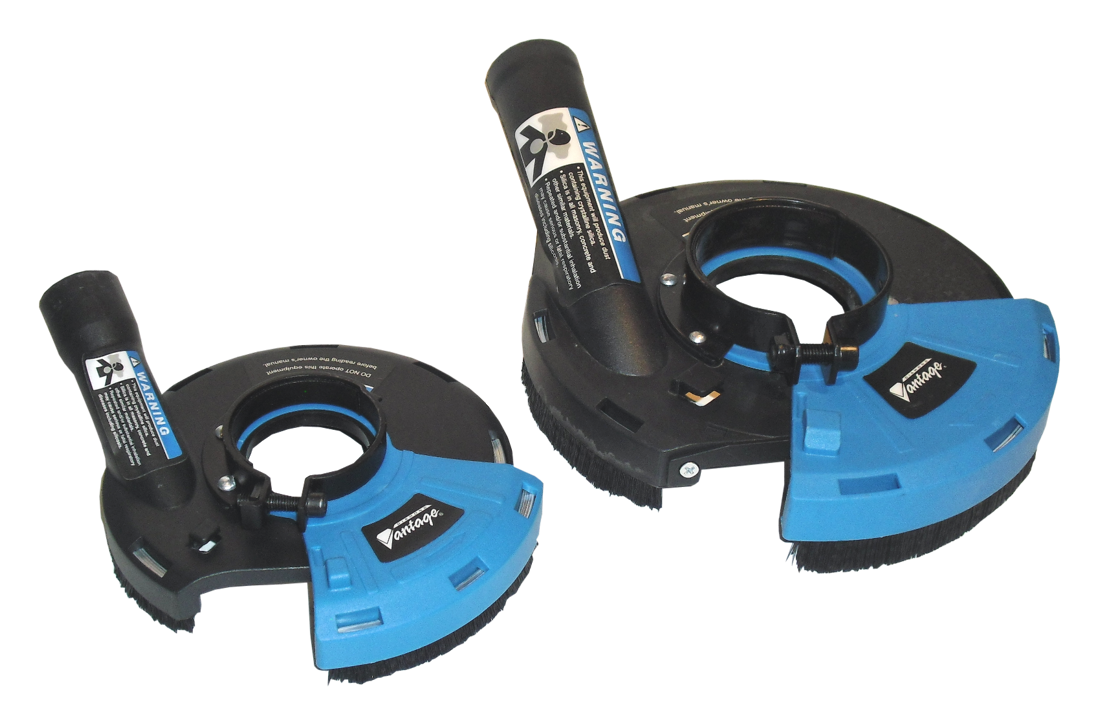

Hollow Shank Drill Bits	Universal Cup Wheel Shrouds	Drill Bit Dust Guard	Dewalt SDS Plus for Drill Bits	Husqvarna 14" Shoe
	Spring-Cushion	Accepts Types of Drill Bits	Maximum Drilling Depth: 4"
All Brands	Sizes: 5", 7"	Unlimited Drilling Depth, 1-3/8" Max. Bit Diameter	Accepts a 1-1/2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose.	Accepts a 1-1/2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose.
Uses Reduction Adaptor #119221- installs into dust port Also requires a 1-1/2" ID Smooth-End Cuff to connect the hose to the Reduction Adaptor #119221. See 1-1/4", 1-3/8", 1-1/2", 2" Hose.	Accepts a 1-1/2" ID Smooth-End Cuff See 1-1/4", 1-3/8", 1-1/2", 2" Hose.	Uses Reduction Adaptor #119221- installs into dust port Also requires a 1-1/2" ID Smooth-End Cuff to connect the hose to the Reduction Adaptor #119221. See 1-1/4", 1-3/8", 1-1/2", 2" Hose.
