Tempest 24 HD Power Blower - Powerful 12,867 CFM from a 24" 14 Amp Blower.

"Using Air as a Tool"

HD General Ventilation Power Blowers

Work Site Ventilation / Dust Containment

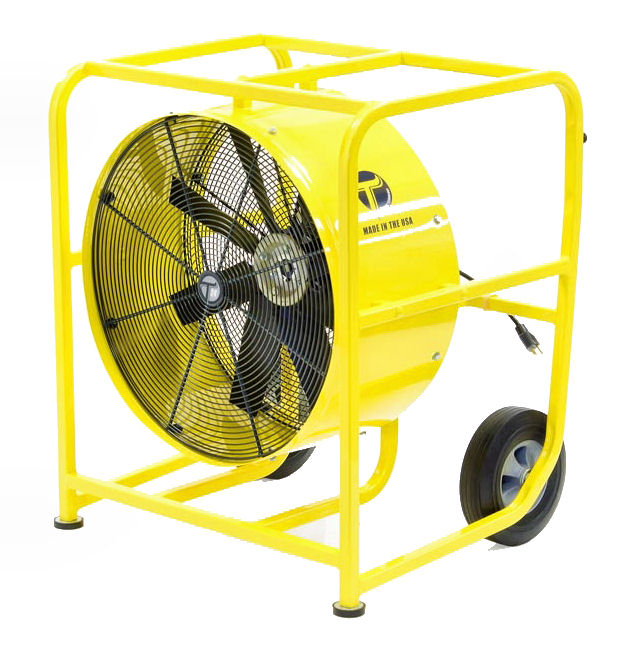

Tempest 24-HD
24" HD Power Blowers (3 models)

Watch a 24HD in Action

MAXIMUM CORD LENGTHS
14 Ga. - 60'	12 Ga. - 95'	10 Ga. - 150'	8 Ga. - 240'	6 Ga. - 380'

24" Power Blowers - The Work Horse in the Tempest Line

Heavy-Duty Power, Durability, Portability, Versatility
Manufactured for ease of operation and a structure design for use in a wide variety of applications
Motor is Totally Enclosed, Fan Cooled, Dust Protected Motor (TEFC)
Designed to run on a 15 AMP Circuit. Actual Draw Approx. 14 AMP.

Three (3) Models: --- Promotion: 24" Fans Ship Free ---

24" Single Speed - 12,867 CFM
$2,369.00
- SPECIFICATIONS:
  - HP: 1.0
  - Dimensions: 28.75" x 26" x 34.5"
  - Weight: 120 lbs.
  - Model: 24-HD | #913-1160
24" Variable Speed - 15,663 CFM
$3,269.00
- Variable Speed: 0 - 15,663 CFM. Provides significant advantages, see below, left: Benefits of Variable Speed.
- SPECIFICATIONS:
  - HP: 1.0
  - Dimensions: 28.75" x 26" x 34.5"
  - Weight: 133 lbs.
  - Model: 24-HD-VSR | #913-1263

HEAVY-DUTY, GENERAL VENTILATION FANS

Built tough for the industrial market. Tempest Technology is not your standard industrial fan company. They specialize in High Volume, High Pressure, and High CFM air movement and dust collection. Their industrial fans/blowers work for many different industries concrete, construction, flooring, oil & gas, demolition, renovation, and climate control.

With the Explosion Proof options, Dust Collection & Ventilation Accessories help keep personnel safe and within OSHA guidelines.

General Ventilation Blowers & Equipment

Are placed in many demanding environments and built to handle the abuse on a regular basis - designed and manufactured with the strongest frame possible. The powerful line-up of ventilators include:

24-HD Single-Speed Model
24-HD Variable Speed (VSR) Model
24-HD Explosion Proof (EP) Model

Accessories Include:

24" Explosion-Proof Power Blower - Single Speed 12,867 CFM
$3,339.00
- Explosion Proof Motor. This hazardous locations motor is rated to operate safely in Class I, Groups C & D (Group C: Propane and Ethylene / Group D: Benzene, Butane, Methane & Propane) and Class II, Groups F & G environments (Group F: Carbon & Charcoal / Group G: Flour, Starch, Wood & Plastic). When dealing with potentially flammable environments, explosion proof (EP) is a must.
- SPECIFICATIONS:
  - HP: 1.0
  - Dimensions: 28.75" x 26" x 34.5"
  - Weight: 125 lbs.
  - Model: 24-HD-EP | #913-1161

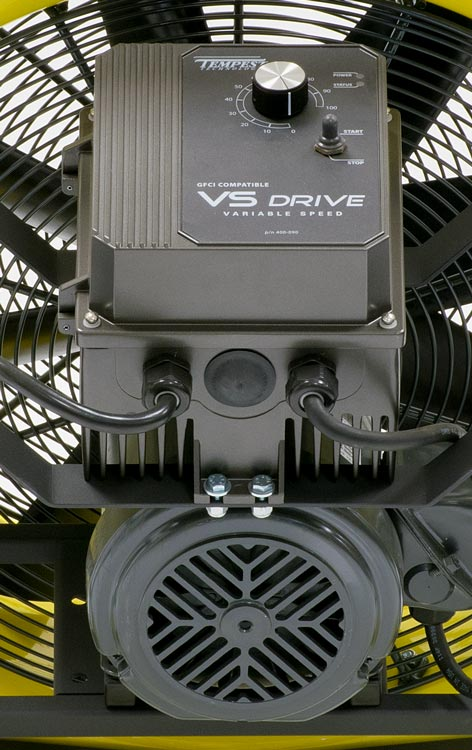

Benefits of Variable Speed CFM

Simple to operate 0 to 15,663 CFM dial compensates for a wide variety of job site conditions including reducing CFM when it is not necessary
Being able to decrease CFM extends the life of a dust collection sock and prevents it from prematurely caking
Shorter dust socks may be attached directly the blower's shroud when space is limited
Use maximum CFM when using Flex Tubing, Smooth Bore Ducting, Dust Sock

Motors are Totally Enclosed, Fan Cooled, Dust Protected Motor (TEFC)
Designed to run on a 15 AMP Circuit. Actual Draw Approx. 14 AMP.

COATINGS / FLOOR COATINGS

FLOOR WORK NEEDS PROPER VENTILATION

A simple and effective way to remove fumes, dust or odors from a job site. Place the fan near the source of the contaminants, connect the Smooth Bore Ducting, and run the ducting to an outside area up to 150' away or more.

WHERE VENTILATION FITS IN

Ventilation is necessary during the installation of many floor coating products, most notably MMA (methylmethacrylate) products. Venting the work application area is required for three reasons:

To keep the vapor concentration below the max OSHA exposure limit of 100 ppm. For odor control. To assist (remove the vapor from the surface) in proper material cure. For use in floor-coating applications, we recommend our line of electric fans featuring EP (explosion-proof) motor and switch options. These 1 HP electric motors and On/Off switches are rated to safely operate in:
CLASS I, GROUPS C & D (Group C: Propane and Ethylene / Group D: Benzene, Butane, Methane & Propane)
CLASS II, GROUPS F & G ENVIRONMENTS (Group F: Carbon & Charcoal / Group G: Flour, Starch, Wood & Plastic).

These fans also include heavy-duty off road tires for easy transport, and tapered shrouds that accept accessories like flex duct, smooth bore (disposable) ducting, and dust-containment bags.

PPV - Industrial Ventilation Set-Up
PPV Blower Fan w/ Smooth Bore Ducting

24-HD: Features / Benefits

HEAVY DUTY SHROUD AND GRILL
The 24-HD’s shroud increases air velocity for large area ventilation and allows attaching Tempest Smooth Bore Ducting for ventilation over increased distances. Its grille meets both UL and CE safety requirements and keeps foreign objects out of danger of the fan blades.
WELDED STEEL ROLL-CAGE FRAME
Solid, welded steel roll-cage frame.
- 1" square tubing completely encloses and protects the internal components of the fan such as the shroud, motor and fan blades.
- Welds eliminate the need to continuously maintain/tighten nuts and bolts
- The 24-HD is designed and manufactured to take the beatings that come with industrial work.
HIGH CFM OUTPUT
blades are designed specifically the the 1 HP Motor for the greatest performance possible. Enclosed shroud directs the air pattern over greater distances towards the desired location.

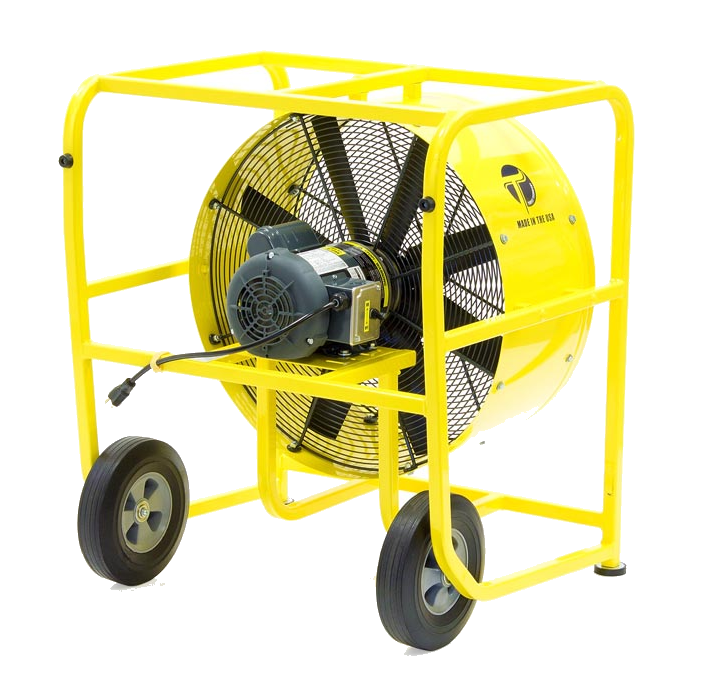

MOTORS: Single Speed, Variable Speed & Explosion-Proof
TEFC Motors (Totally Enclosed (debris protected), Fan Cooled). This specific motor is matched perfectly with the fan blade’s size and pitch to produce the most effective air movement possible.
ADJUSTABLE TILT - 24-HD allows the user to easily adjust the fan tilt from 0 to +20 degrees. Simply press in the latch and extend the front legs to the desired height. If desired the unit is also designed to operate effectively when place on it's back.

LARGE 10" RUBBER WHEELS - will never go flat and are capable of rolling over almost anything you'll run into: rocks, mud, pipe, glass, etc. Where ever you need this fan you'll be able to get it there quickly and safely.
