Mudhens - Portable Slurry Press Machines. Solid Liquid Separation, fits through 36" doorways.

Models (4) - Pricing

Benefits

Applications

Sizing

OVERVIEW

Mudhen machines are designed for job site portability and to handle all types of slurry waste waters.

Powered by a small air compressor
Easy to move from jobsite to jobsite including the two larger models (MH2, MH4)

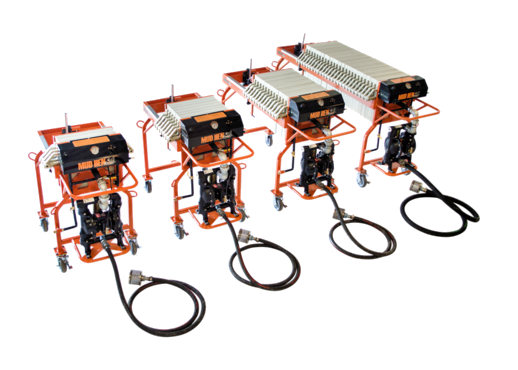

4-Models, Concrete Slurry Processing Capacities:
- Mini - 120 gallons per hour
- MH1 - 360 gallons per hour
- MH2 - 720 gallons per hour
- MH4 - 1250 gallons per hour.
.

FEATURES

Portable

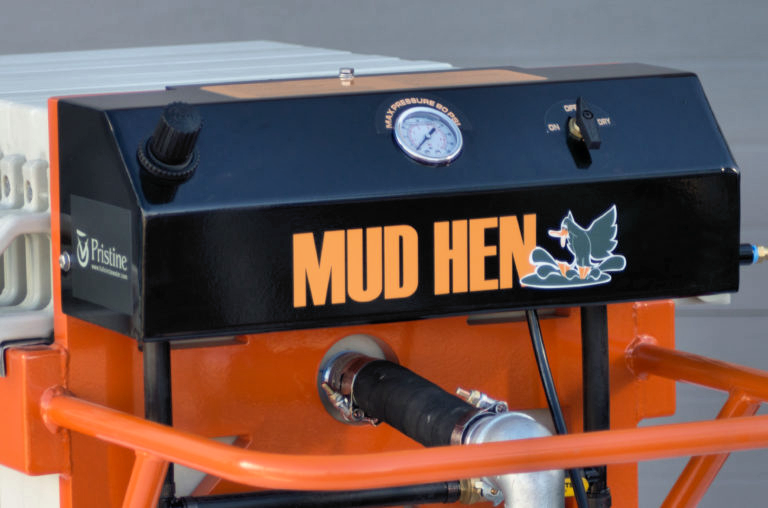

Easy controls
Simple operation
Filter Press

SLURRY
TO CLEAN
WATER

Mudhens can be used for most slurry water applications. Originally designed for the demanding world of concrete – options include pH adjustment, larger pumps, slab carts, and trailer mounts. The equipment can be configured and utilized in many ways:

It pulls slurry water out of your containers, from a pool or any vessel
It cleans the water and discharges it to drain or back into a container for reuse in your equipment.

Whatever your needs – wheel it into an elevator or through a doorway to your work area. Mudhens can be used just to clean a dumpster, pit or water tank and re-circulate the water until the vessel is clean (i.e. "slurry to clean.")

AVAILABLE OPTIONS

Machines are expandable for increased productivity.

Concrete Slurry Water Filtration Handing concrete slurry water never has been faster or more reliable. The MudHen is a portable, flexible and easy to use solution for concrete slurry. Jobsites that create slurry and need to store and transport slurry can save thousands of dollars by utilizing a Mudhen.

The Mudhens are designed with multiple modes of operation. Equipped with a 10 foot hose to suck slurry water out of any container. A standard garden hose connection on the output allows you to send the water to drain, to reuse the water, or to use the clean water to wash down your equipment. Cakes can be easily disposed of using optional trays or sludge bags as well as a standard wheel barrel or can.

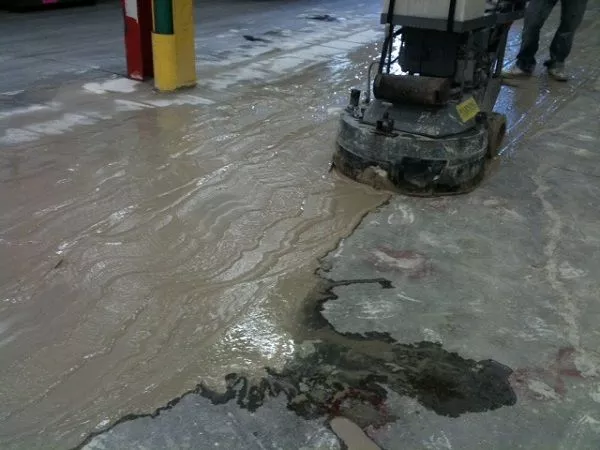

Creating Concrete Slurry

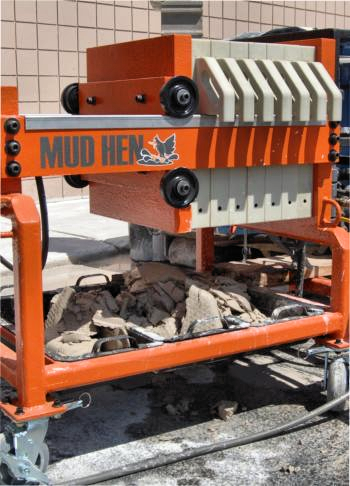

Processed Slurry - Volumes of sediment compressed into dry, caked plates.

Processed Slurry - Sediment is removed to discharge clear water.

Models (4) - Pricing

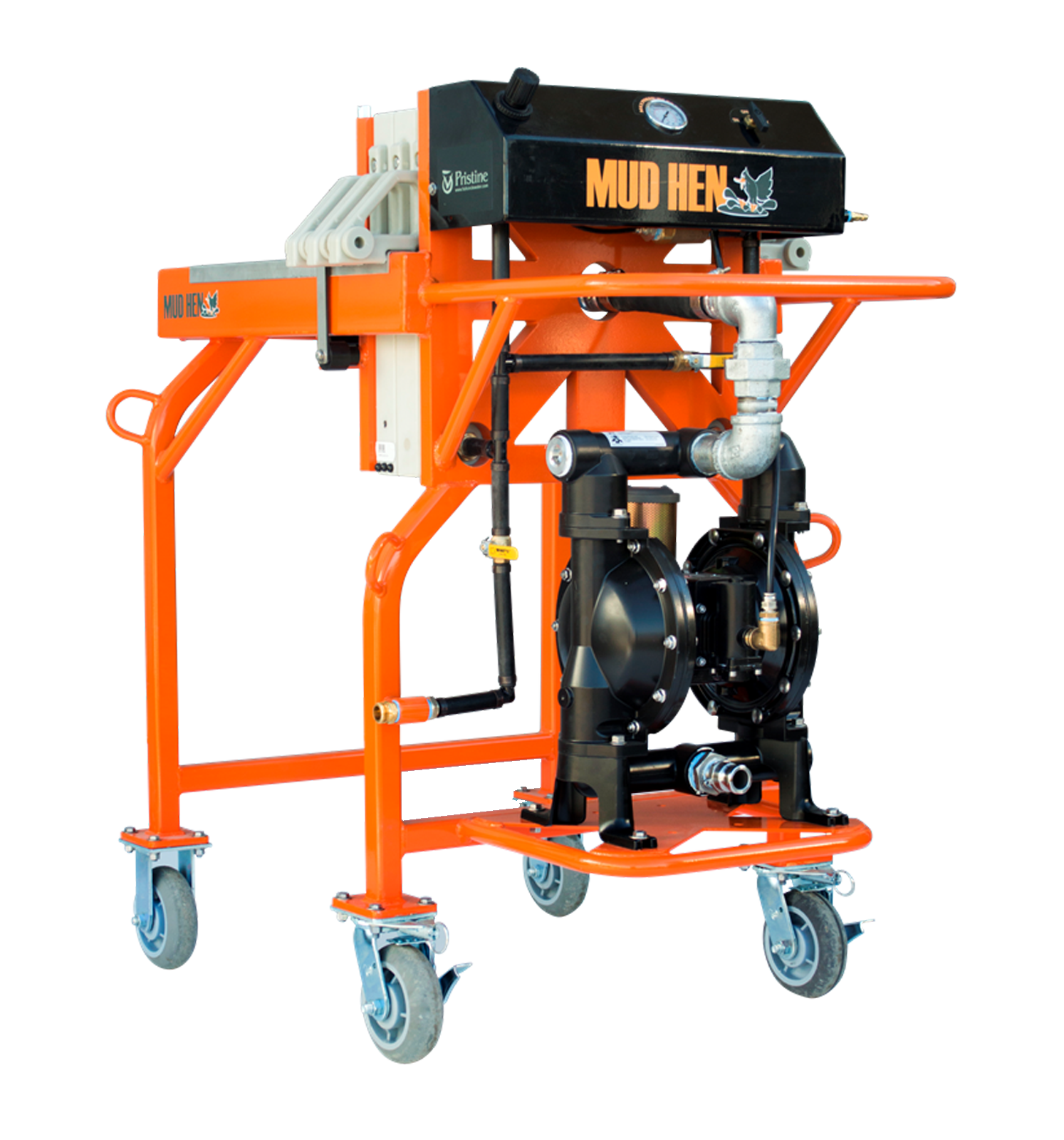

Mini

Truly portable concrete slurry water system. Weighing about 457lbs, the unit is now equipped with pneumatic 8" rear wheels for two-wheel / wheel barrel handling (not shown).

The concrete slurry system can go just about wherever it is needed - over rough terrain right where you need it.

Attach a portable air compressor and process slurry water as fast as you make it – giving you nice compacted slabs of waste and clean water for reuse or disposal.

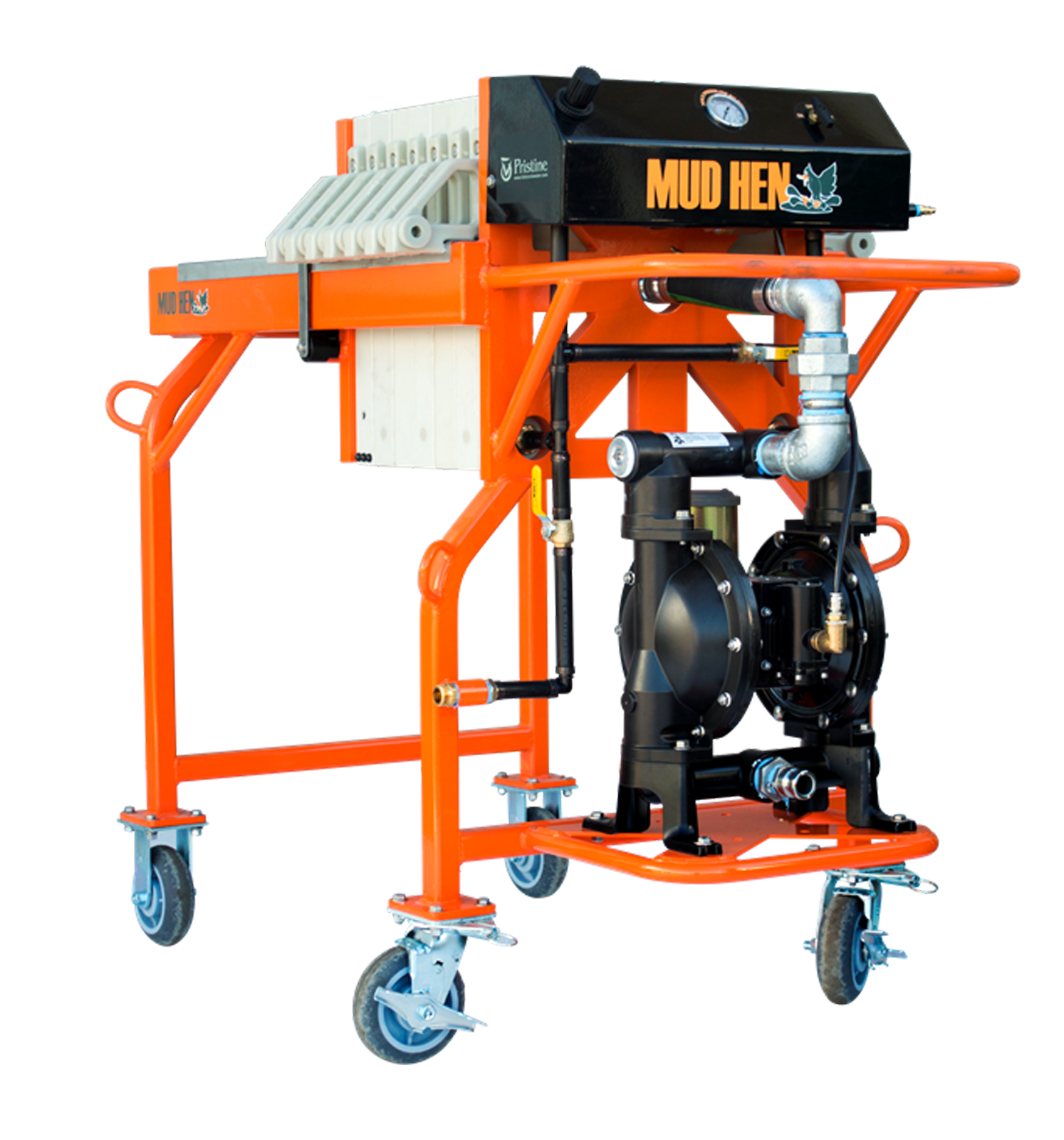

MH 1

The MUD HEN 1 is the most effective portable slurry water recycling system made. It can fit in an elevator, through a standard 36” door or a tommy gate lift. Over 200 gallons per hour of slurry water can be treated – cleaning takes less than 3 minutes. Filter slabs are easily disposed.

The MH1 needs a minimum of 8 scfm of air to produce between 4 & 6 gallons per minute of clarified water. The debris containment plates holds 1 cubic foot of solids.

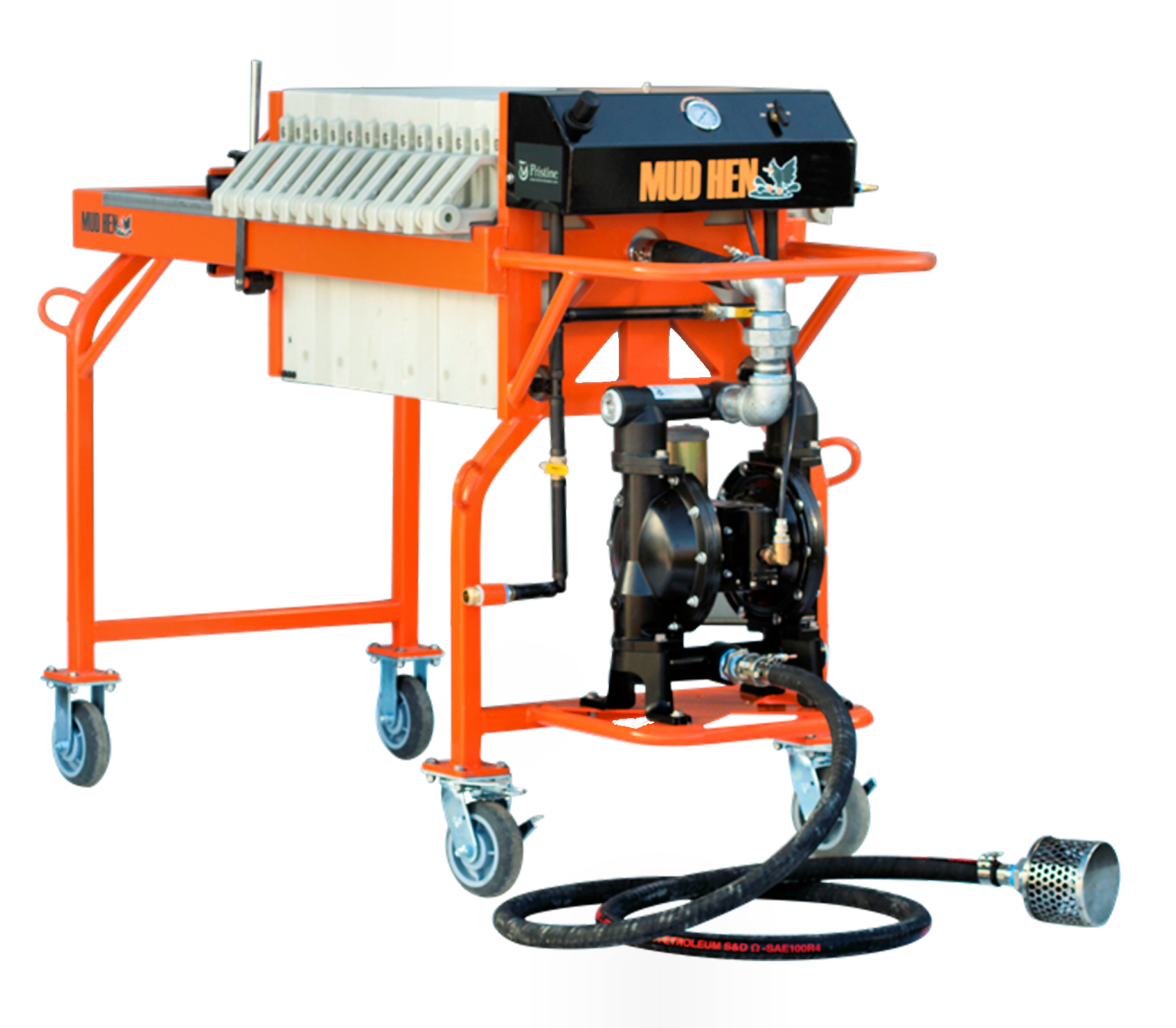

MH 2

The MH2 has twice the collection capacity of the MH1 and provides 'twice' clean water for additional uses. The system can be designed with a portable sludge slab cart or you can use a wheel barrel or another type of container positioned beneath the screen plates for convenient disposal of the caked slabs.

The MH2 needs a minimum of 8 scfm of air to produce between 8 & 12 gallons per minute of clarified water. The debris containment plates holds 2 cubic feet of solids.

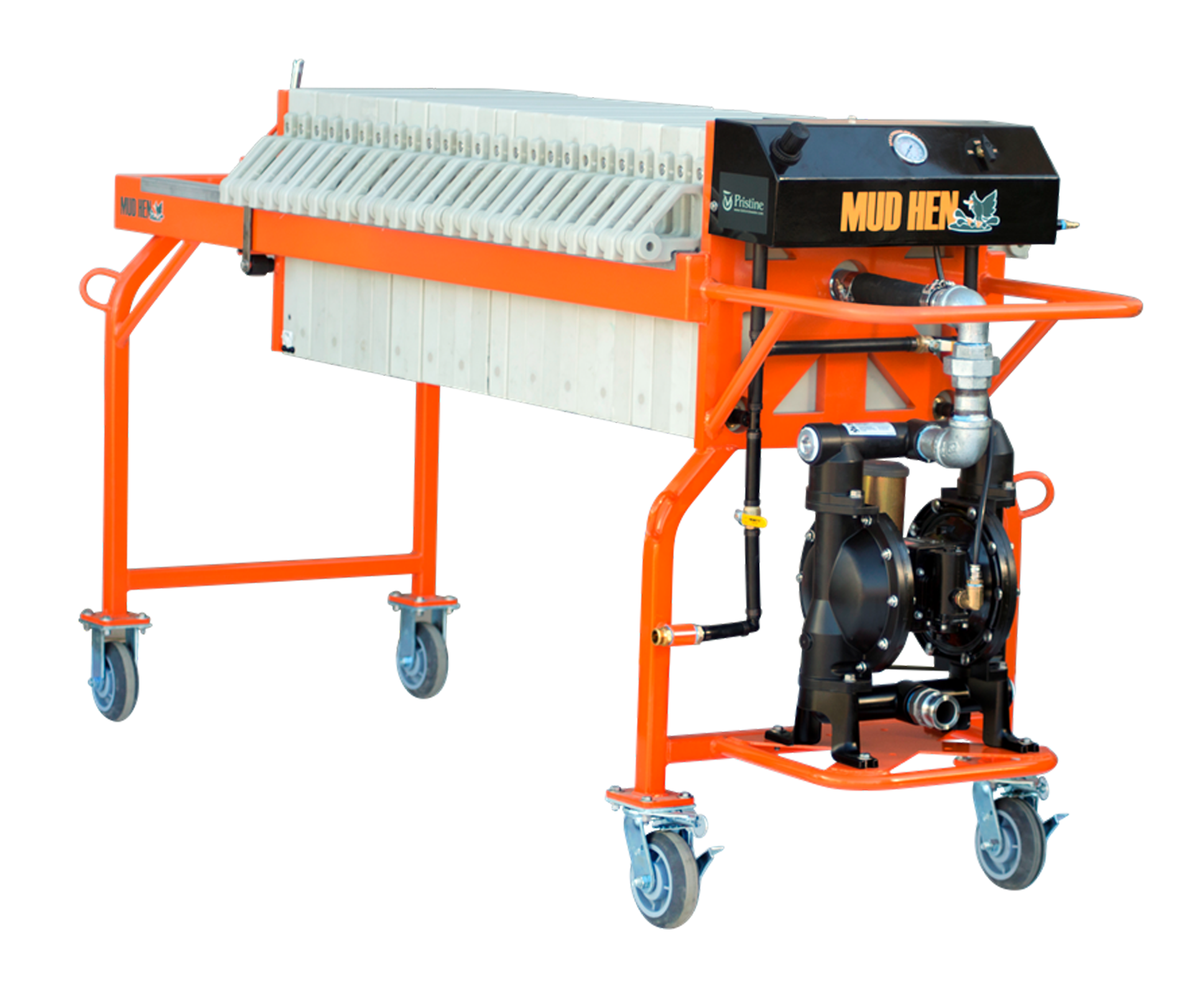

MH 4

The MH4 is the concrete slurry water recycling king! For large job sites requiring a high volume of slurry to be processed efficiently and effectively. Like the MH2, the MH4 can be designed with a portable sludge slab cart or you can place a wheel barrel or another container beneath the screen plates for convenient disposal of the caked slabs.

The MH4 needs a minimum of 12 scfm of air to produce between 14 & 20 gallons per minute of clarified water. The debris containment plates holds 3.5 cubic feet of solids.

Specifications, Pricing:	MINI	MH1	MH2	MH4
Dimensions (LxWxH), Inches	49 x 31 x 48	55 x 31 x 48	70 x 31 x 48	96 x 31 x 48
Weight, Lbs	457	576	660	800
Peak Processing Speed, Gallons per Hour	120 gph	360 gph	720 gph	1,260 gph
Air Requirement @ 90 PSI (compressor size)	5 scfm	8 scfm	8 scfm	12 scfm
Filtration Capacity, Cubic Feet	.3 CF	1 CF	2 CF	3.5 CF
Air Blow Down Feature	yes	yes	yes	yes
Suction Line ID, Inches	1 id	1 id	1 id	1.5 id
Hydraulic Jack, Ton	12	12	12	12
Pneumatic Pump (Ingersoll Rand), Inches	1.5	1.5	1.5	1.5
Screens	3	7	13	23

Price:
Price:	$11,800.00	$14,800.00	$17,900.00	$25,800.00

Automatic Filter Press --- perfect, portable machines for super clean water without any hands-on work from workers: you can rely on dry cakes and highly filtered water that is ready to be reused quick processing time - the automatic filter press machines are as good as it gets when it comes to treating wastewater.

Benefits

ELIMINATE REGULATORY CONCERNS

With increased EPA enforcement of industrial suspended solids many contractors have been hit recently with large fines. Most contractors are unwilling to carry the huge financial risk and liability associated with not cleaning their water. Some contractors have left the efficiency of wet grinding and face new operational difficulties with dry grinding.

The MudHen eliminates your financial liability over regulatory concerns potentially saving you thousands of dollars, allowing for water reuse and recycling on site.

EASY TO USE

MudHens are portable and supported by large casters to easily move the unit around a jobsite. The machines can be pushed onto the job site by hand, they don’t require a forklift. Simple mechanical controls and heavy duty construction are used to eliminate employee errors and problems. Concrete water recycling was never so easy!.

Mudhen Double Wall Diaphragm Pump.

RELIABLE --- MADE IN THE USA

The concrete water system is built right here in the USA. All components are parts are interchangeable with standard components that are easily found. No more waiting for service and parts that originate from outside North America. The MudHen concrete water system is built to last, and when service is needed – components are carefully selected to minimize the downtime. The MudHen has the lowest cost of ownership for maintaining.

FAST & PRODUCTIVE

The MudHen M1 concrete water system comes standard at over 200 gallons per hour of processing capacity and can be easily accessorized with a larger compressor to handle over 500 gallons per hour of capacity. The machines can outpace most teams of concrete professionals that saw and grind with industrial equipment which benefits your staff and customers.

Applications

MudHens can solve a variety of slurry water issues for different applications. They are commonly used on stone, ceramic and glass slurry as well as other slurries that have a high quantity of suspended solids.

Slurry waters can be effectively treated to be EPA (Environmental Protection Agency) compliant. Pump trucks, stone and tile saws, cement and mortar mixers along with industrial slurries can be treated to remove the vast majority of suspended solids. The pH can easily be treated to meet EPA requirements.

The recycled water can be reused on site to reduce water consumption. The sludge is collected and compacted for easy disposal.

For years concrete wash out slurry has been a challenge. With a MudHen concrete washout system compliance has never been easier. All MudHen products are made in the USA.

Application: Concrete Washout We have portable solutions to treat concrete washout on site including as well as the following harmful sediments: Concrete, Terrazzo, Paint, Stucco, Mortars, Grout, Sone, Tile, Glass.

CALL US

Sizing - What size filter press do I need?

If you’re working in an industry where wastewater is a byproduct, you’ll need an effective method to treat the slurry water. A filter press is the perfect solution, but it isn’t just one size fits all.

It’s important to consider size before investing in a filter press. It’s easy to simply choose the biggest option and assume the filtration process will go smoothly as long as it isn’t overloaded. But bigger is not always better, so you should choose a filter press after carefully considering your needs and the application you are using it for.

In certain applications, cake and water quality can drop if the press is oversized. Additionally, a filter press than is too large can make your costs rise, not only with the initial purchase but when running the machine. Thoughtful design and pairing with other technologies can reduce the size and overall cost of your purchase.

To determine what size filter press you need, two main factors are considered:
--- The quantity of solids being filtered and the gallons per hour flow ---

If you only need to filter a few gallons per hour, a smaller filter press should do the trick. If your gallons per hour flow is much higher — for instance, 500 gallons of water per hour — you’ll want to go with a larger filter press (MH2 or MH4.)

If you have any questions and are pondering what size or additional components you may need, call USA Dust Guard --- we'll be happy to assist you.
