Planetary Grinders   >   PG 820 Floor Machine.




Husqvarna Extractors - Self-Cleaning for Silica Dust Extraction

Surface Preparation Machines

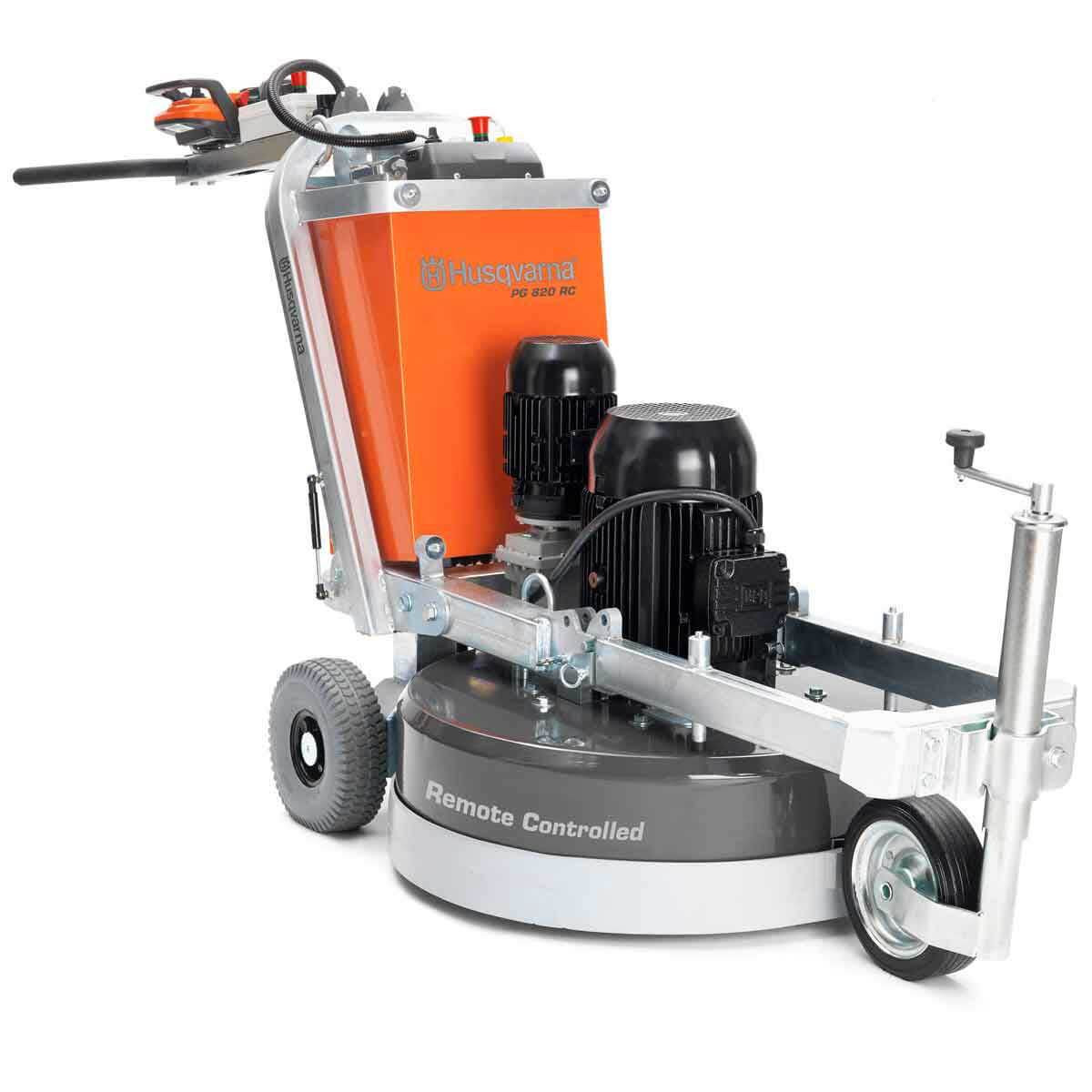

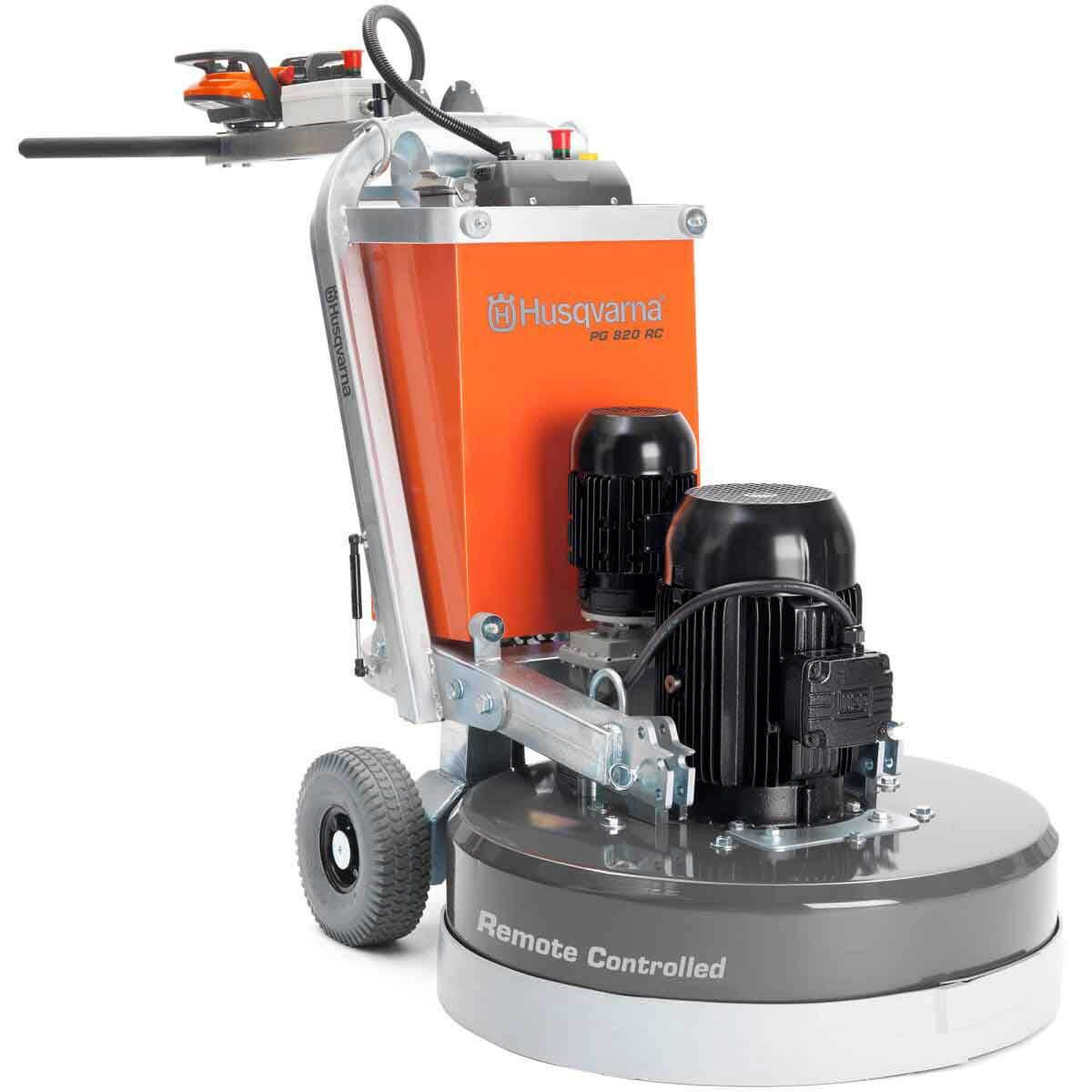

Husqvarna PG 820 RC Surface Prep Machine.





Husqvarna PG 820 RC Floor Machine

PG 820 Planetary Grinder
240 & 480 Volt, 32" Grinding Width



Husqvarna PG 820 RC Planetary Grinder, 32"

Remote Control for Increased Production, Flatter, More Impressive Looking Floors



$34,980.00            480 Volt Machine, Item No.  967302902


Overview:
  • The world's first remote-controlled concrete floor grinder with Dual Drive Technology™
  • A major upgrade to the reliable PG 820 floor grinder, the RC version enables significantly higher productivity and even better work results together with more ergonomic operation and effortless transportation to and from the work site
  • It also frees you to prepare the next set of tools, adjust hoses etc while the machine is running, which means better use of your time
  • With a grinding width of 32" it is suitable for industrial applications and an excellent choice for concrete floor preparation and repair as well as all polishing and grinding applications both wet and dry.  Perfect for HiPERFLOOR® concrete floor polishing system.
  • Higher output as optimum grinding parameters can be maintained over time
  • More grinding hours per day since you can operate and prepare next steps simultaneously.





Features & Benefits

Increased productivity with remote control
Higher output as optimum grinding parameters can be maintained over time.  More grinding hours per day since you can operate and prepare next steps simultaneously as the machine operates by itself.

Consistent optimum grinding performance
Parameter settings enables optimum grinding and polishing for each application.  Consistent operation and result, even when changing operator.

Ergonomic operation
With remote control you are not exposed to vibrations and sideway forces of the machine.
Effortless transportation
The integrated battery pack makes it easy to transport the machine to and from the work site.

Easy transportation
Retractable and removable front wheel.  The wheel can also be locked into a park position and used when adding optional grinding weights.

Drive wheels that work on difficult surfaces
Puncture proof foam filled wheels with good traction on all surfaces.

User-friendly remote control
Intuitive color display with two-way communication with machine for optimum control.  Key parameters displayed to you at all times.  Comfortable remote control harness.
Long battery capacity
Lasts for a normal working day.  Charge battery from 1- or 3-phase.  Short charging time, typically 2 hours.


Best in class
Outstanding productivity and reliability.

High Production Rates
High power machinery capable of delivering high production rates, increasing profit and saving valuable time.

Redi Lock® Diamond Tooling
Redi Lock® is an instant and hassle-free system for changing diamond tooling.  Robust system design ensures maximum protection and life of your diamond tools.



Dual Drive Technology
Dual Drive Technology
– fully independent control of both planetary and satellite grinding heads in regards to speed and direction of rotation.



High Production Rates
High power machinery with Dual Drive Technology
capable of delivering high production rates, increasing profit and saving valuable time.

Strong Durable Design
Robust steel frame and strong single-piece aluminum cover.



Long Service Intervals
With 5-way sealing, spring steel head system and all zinc plated steel parts, service is not needed as often.









Gear-Driven Planetary Head
Gear-driven planetary head, premium quality belt for powering grinding heads.



Stable operation over undulating surfaces
The triple-headed grinder delivers more downward pressure and power to the grinding heads.

Efficient dust management
Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.







 Technical Specifications

PG 680 - 480 Volt
Power, hp 17
Voltage 380 - 480
Plug Type L16-30
Rated Current, Amps 32
UL & CSA Approved Yes
Power Supply 3-Phase
Grinding Width, inches 32
Grinding Disc, inches 10.5
Grinding Disc Segment Capacity 18
Grinding Pressure, lbs. 737
Grinding Disc Speed, RPM 250 - 1,100
Direction of Rotation (as viewed from operator's position) FWD / REV
Dimensions (L x W x H), inches 88 x 33 x 80
Dust Port Size, inches 3
Weight, lbs. 1,182
Recommended Generator Size (grinder only), kW 25
Recommended Generator Size( when paired with a vacuum), kW 45
Recommended Dust Extractor Size, CFM 400+
