4520P Pump-Out Vacuum
--- Well equipped, as follows:

$1,090.00
Model:  4520P, Slurry Pump-Out Vac, 20-Gallon, 110 CFM, 105" H20
--- Description, Overview, Includes:

• 2-HP Industrial-Grade Bypass Vacuum Motor for Fast, Complete Recovery of Dirt, Debris and Concrete Slurry
• Internal Sump Pump:  HD, Industrial - 4.5 Amp, 40 GPM Discharge Speed with Superior, HD Plumbing
• Rotational molded polyethylene tank with built-in handle, large rear wheels and front swivel casters --- tank will not dent, puncture, corrode or lose air-seal.  Easy to transport even when going up and down stairs with a full tank of liquid.

• Slurry Tool Kit (right):  2-piece wand, 15" squeegee & crevice tool

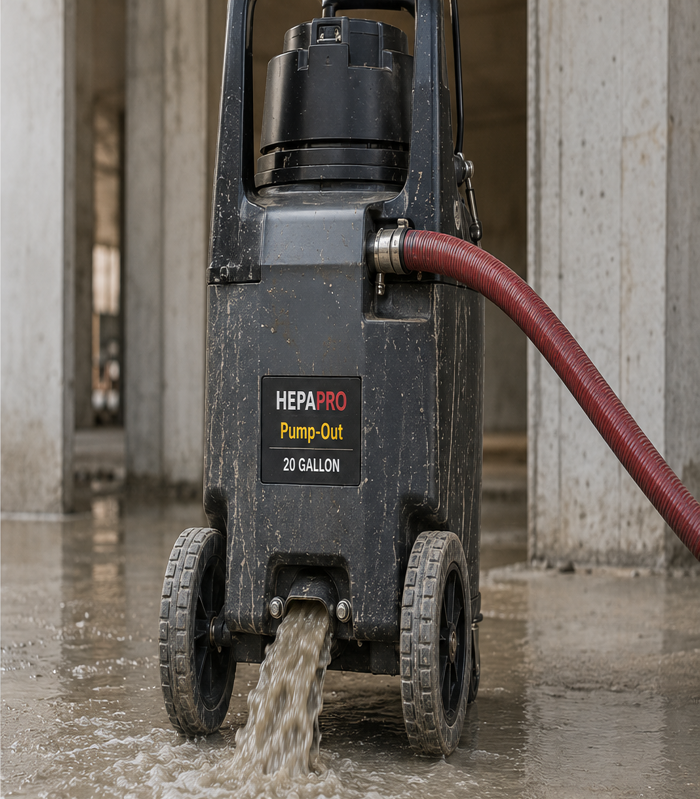

• 24" convenient drain hose on rear of tank (see pic, right)

• 1.5" x 10' crushproof extraction hose

• 1-1/2" x 35' discharge hose with cam-lock fitting for sump pump

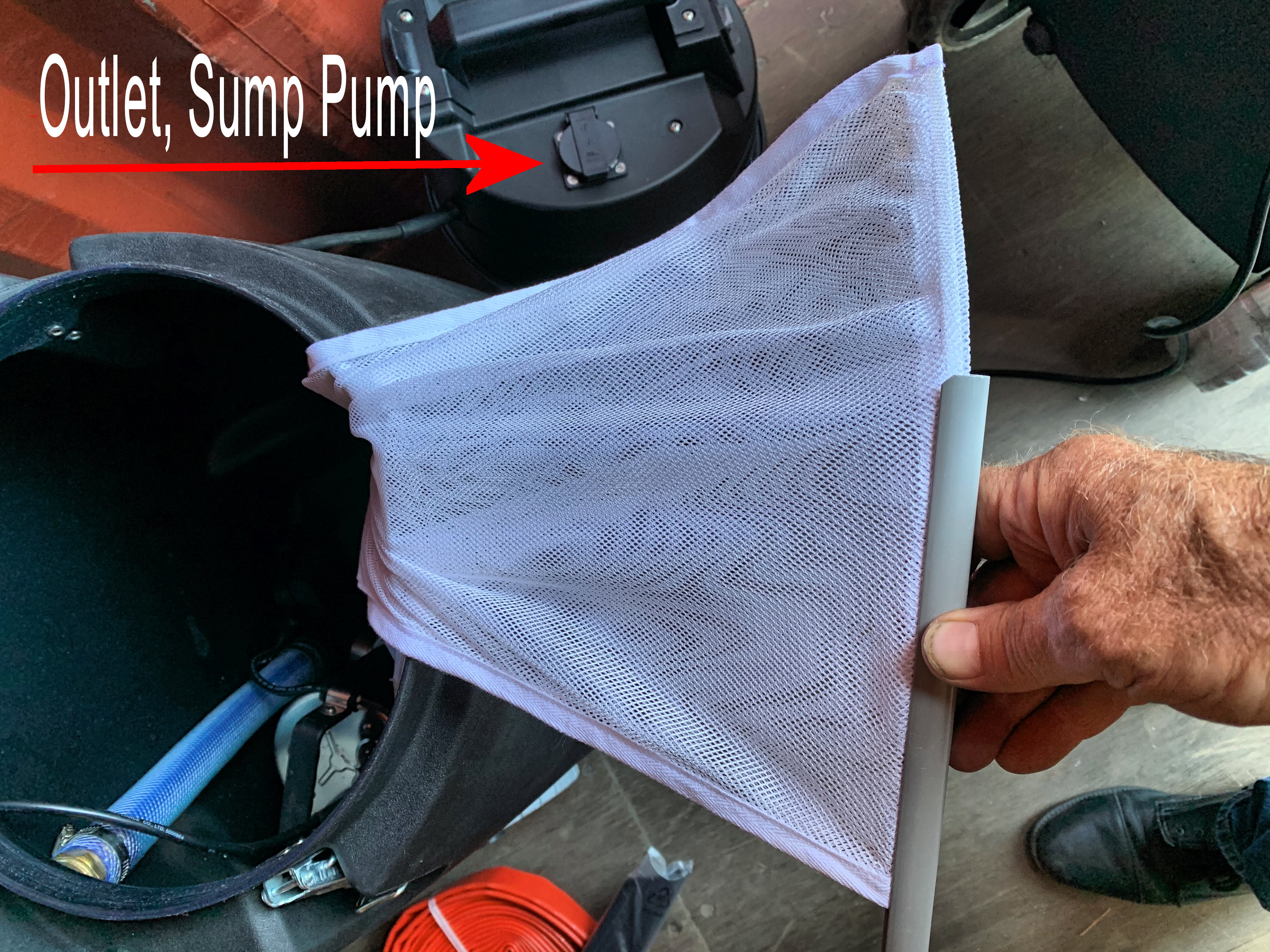

• Slurry / Debris Collection Bag, re-useable.

• Specifically designed for the abusive world of extracting concrete slurry
• Discharges filtered wastewater for reuse or disposal.

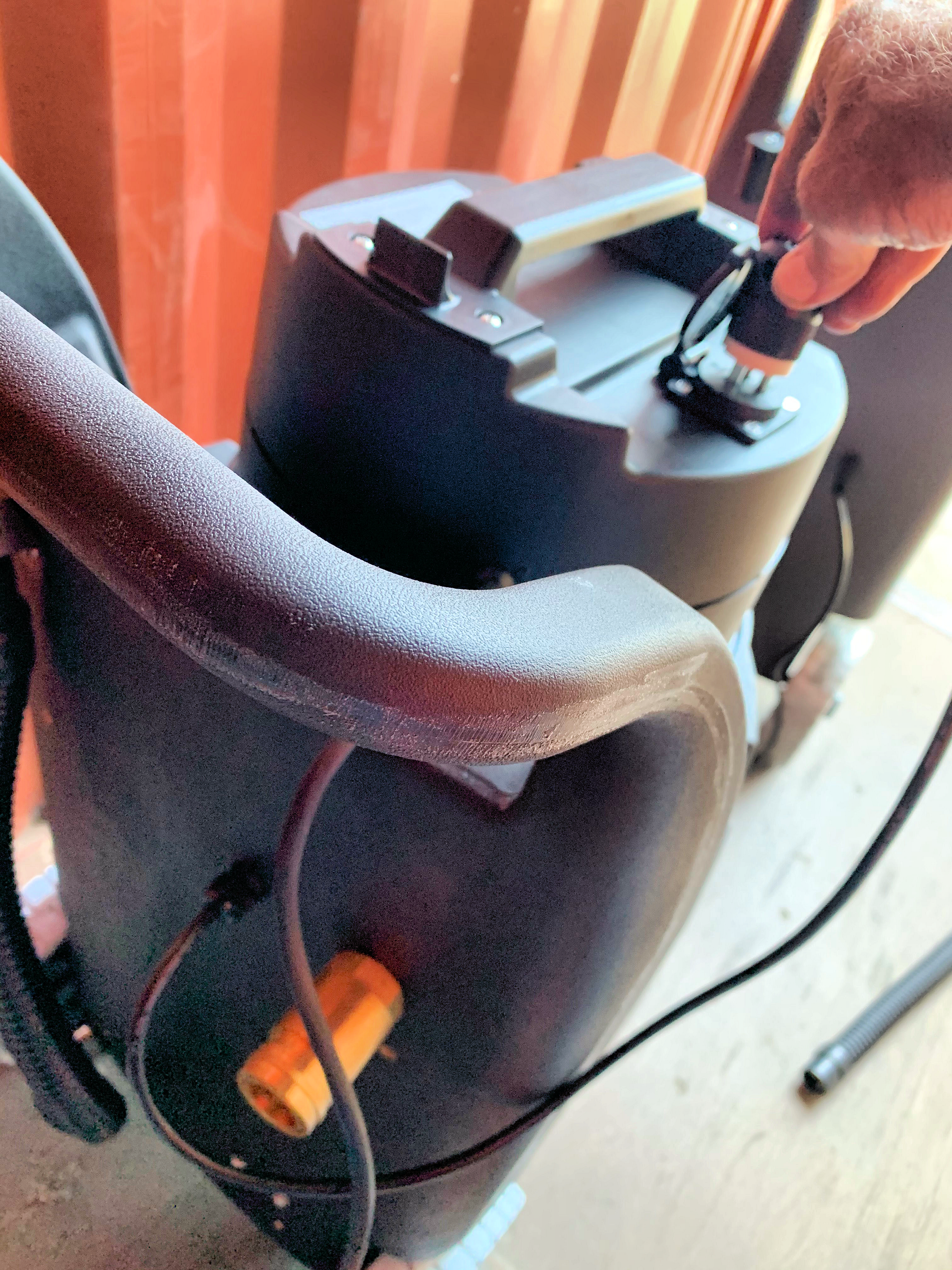

Above photo shows rearview of tank:  cam--lock hose fitting, 24" convenient drain hose, sump pump plugs into receptacle on the motor head.

Can't be overfilled:

• helps assure long motor life

• prevents overflow - see below, Over Flow Protection.

High Production

Automatic discharge of slurry waste water so you never have to physically attempt to dump it.

29" Squeegee Attachment (left)

• Optional attachment, easy to install
• Combined with the integrated sump pump you'll vacuum slurry in one pass, turn-on the internal pump and the tank is instantly emptied - easy, safe, fast & extremely efficient
• To order the squeegee, see accessories, below.

Description

• Outperforms conventional shop vacuums 5:1

• Production Rates:  3 hours using a conventional shop vacuum vs. 30 minutes using the 4520P Pump-Out Slurry Vac

• Debris, Sludge Collection / Containment

  • HD nylon collection bag with micron filtration contains all types of sludge and slurry waste, micron sized to contain slurry waste while allowing water to pass through

  • reusable, cleanable

• Applications:  water recycling system for power tools, flood reclamation, pond/pool cleaning, wet vacuuming, water & debris recovery from pressure washing.

• Wet Shut-Off:  reliable wet shut-off with inlet screen prevents liquids from reaching and damaging the vacuum motor and preventing overflow conditions.

Specifications

• Power:  10.0 Amp (vacuum), 4.5 Amp (sump pump)

• Industrial Sump Pump:  for fast extraction of wastewaters, discharge rate of 40 GPM up to 100'

• Power Cord:  12 gauge x 50', 3-Prong Ground Plug

• Performance:  105" H20, 110 CFM

• Tank:  24 gallon, 20 gallon capacity

  • black color tank helps to hide wear and tear well, helping to show a professional appearance on the job

  • 24" drain hose on the rear of the tank.

• Weight:  82 lbs.

• Warranty: 1 year

• All parts and components are replaceable and available.

Accessories

• Slurry Collection Bag w/ Clip
  #124-7159-14     $23.00

• 24" Drain Hose
  On rear of tank
  #124-7157-14     $49.00 ea

• Discharge / Pump-Out Hose, 1.5" x 35'
  #124-7158-14     $110.00

• 29" Front Mount Squeegee, Complete Assembly
  Easy 2-bolt attachment to the 20 gallon tank, complete with 2 blades and hardware
  #122-3190-14     $349.00

• Replacement 29" Squeegee Blade
  (2 / Front Mount Squeegee)
  #124-7224-14     $55.00 ea

Additional Features

• HD, Abrasive Resistant Collection Bag - collect abrasives from concrete slurry and other debris types
  • Easy to remove, cleanable, reusable
  • assures continuous extraction / discharge operations without debris jams to the sump pump



• Overflow Protection - built-in pressure sensor automatically stops waste water extraction when you are extracting faster than you can discharge.
• Once the water is low enough in the tank it automatically resumes suction
• The overflow protection feature assures long motor for the vacuum's  motor and most important, it prevents the tank from overfilling to prevent any additional clean-up expenses.
