Scanmaskin Floor Machines - Grinding / Polishing

28" World Series RC

SCANMASKIN 28 WORLD SERIES

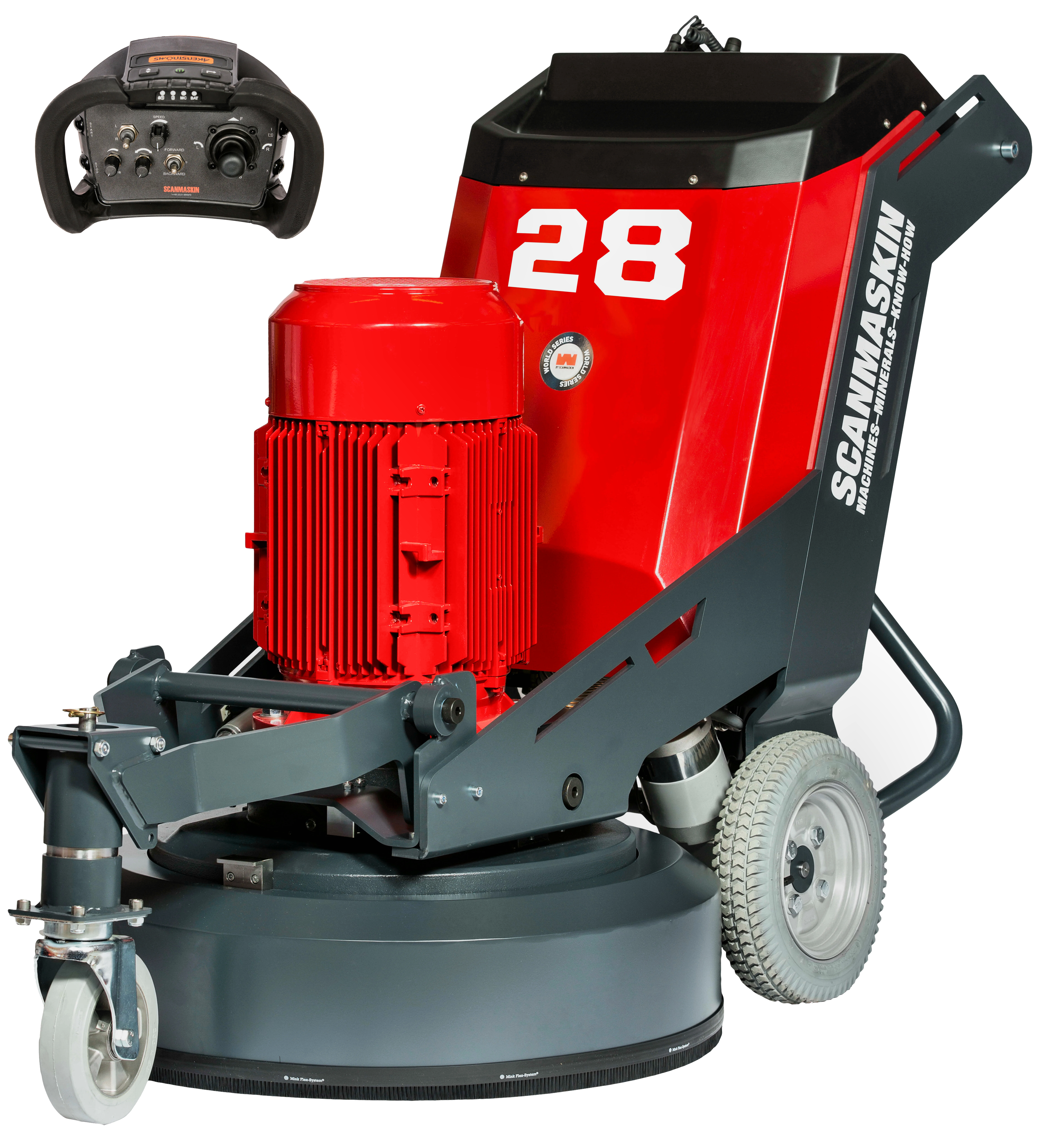

Scanmaskin 28" World Series Floor Grinder, Radio-Controlled.RADIO-CONTROLLED GRINDING MACHINE

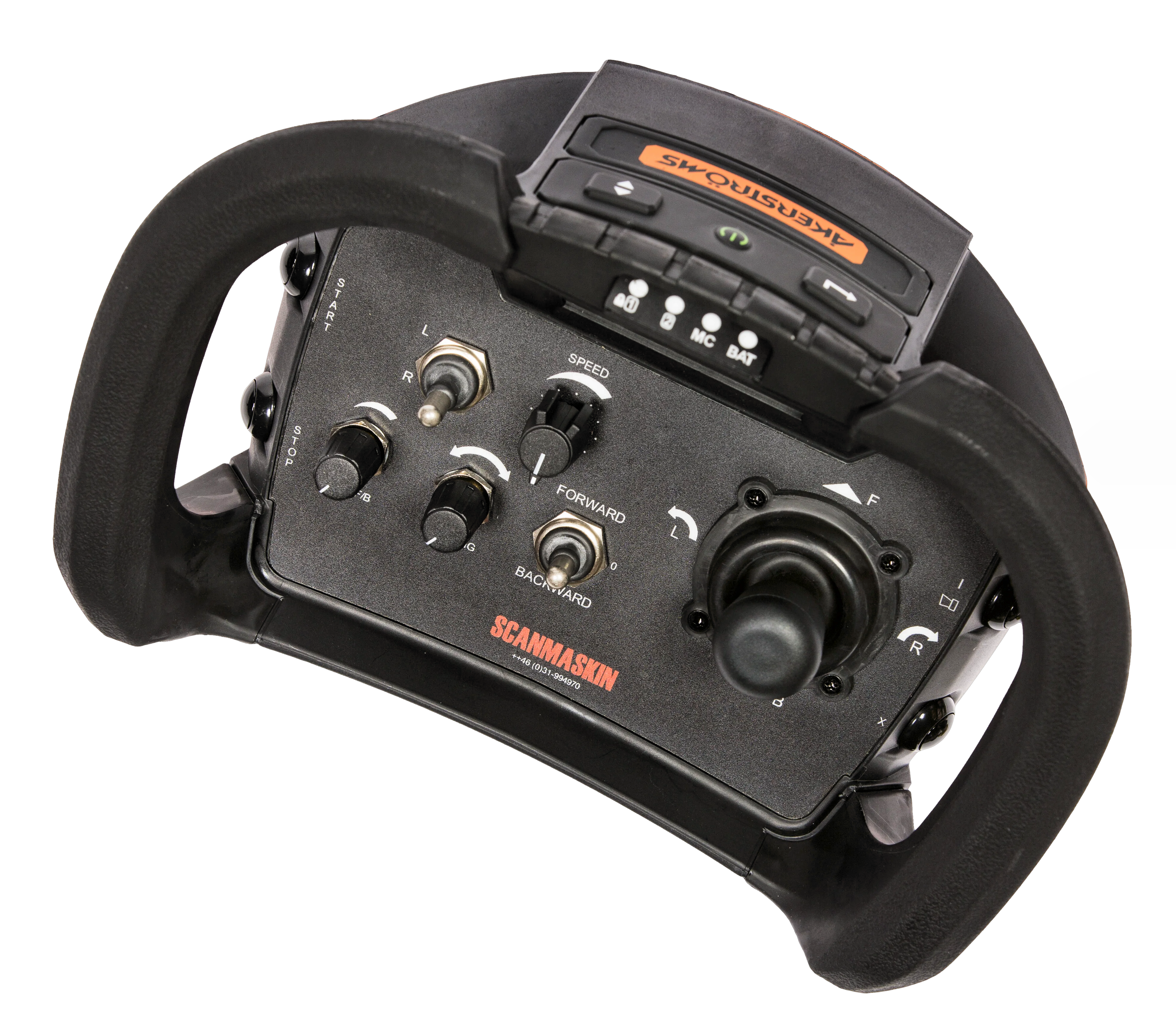

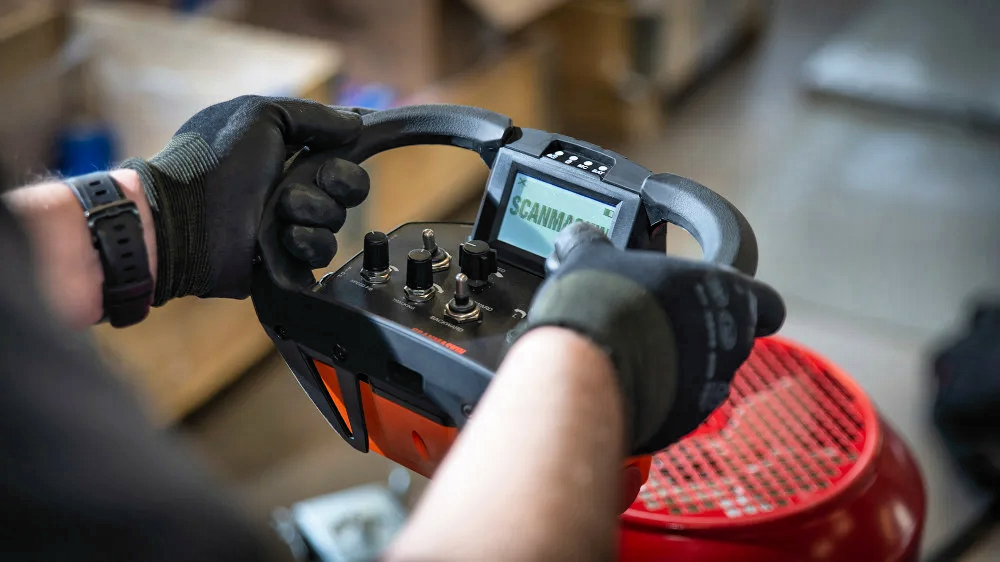

Gives the operator easier control of the grinding speed and drive wheels, and it offers ergonomic work for the user.  It contributes to a minimal load and no vibrations for the operator.  Through the "joystick" on the radio control the operator is allowed to control with high precision in the direction and speed the operator wishes.  There is also the option of maintaining the machine's grinding speed.

Scanmaskin 28 World Series RC is also equipped with a display, which contributes to the operator being able to follow in real-time how the tools are worn and their lifetime.

The floor grinding machine features cast alloy components along with a floating shroud, designed for years of durability and dust-free operation.  Scanmaskin 28 World Series RC is equipped with a new tool head for better balance and tool support.  The machine also has a new electrical cabinet with an improved cooling system.  The cooling system is sealed and protects the electrical components against heat and dust.  The wheels of Scanmaskin 28 World Series RC are 370 mm and can be quickly released, which makes it easy for the operator to operate the floor grinding machine manually.

The machine is also available in a basic version, without the display or remote control - please call for availability.





PRODUCT DESCRIPTION

ORDER / PRICE
TECHNICAL SPECIFICATIONS
PDF Sales BrochurePDF BROCHURE VIDEOS



PRODUCT DESCRIPTION

  • Radio-controlled (RC) model with a joy-stick
  • The operator can easily control the speed
  • Ergonomic with a minimal load and no vibrations for the operator
  • Equipped with a smart display
  • Service is easy – loosen three screws to get access to the machine house
  • The wheels on the machines are 370 mm and can quickly be released
  • The cooling system is sealed and protects the electrical components against heat and dust

Scanmaskin 28" World Series. Scanmaskin 28" World Series.



PRICING  /  TECHNICAL SPECIFICATIONS

Model World Series 28"
Part No 5802021
NON-REMOTE

REMOTE
Price $21,329.00


Voltage 230V, Dual Phase 1PH or 3PH
Motor Power 10 HP, 32 Amp
Grinding Speed 200 - 825 RPM
Grinding Disc 3 x 8.6" --- Accepts 6 diamond tools / disc
Grinding Width 28"
Weight 1,212 lbs 1,344 lbs
Grinding Pressure 725 lbs
Water Tank 5 gallon



VIDEOS

Video - Scanmaskin World Series 28", 36 Seconds Video - Scanmaskin World Series 28", 1:29 Seconds
Video - Scanmaskin World Series 28", 10 Seconds Video - Scanmaskin World Series 28", 1:53 Seconds
Video - Scanmaskin World Series 28", 10 Seconds Video - Scanmaskin World Series 28"n, 4:11 Seconds
