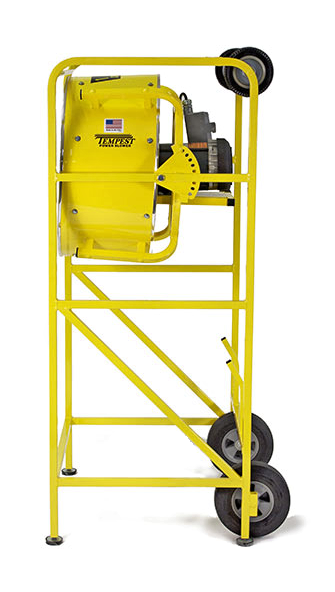

Tempest 24" Tall Boy - 5' Tall
24" Industrial Blower - 12,867 CFM

$5,090.00
24" Single Speed x 63" Height - 12,867 CFM

Dust Control System for Platform / Mortar Mixing

The 63" Tall Boy is identical design to the original 24-HD Blower (24") with an additional 30" of height.

• Extended vertical reach is needed to ventilate above raised equipment and platforms
• At 63", the Tall Boy features a wide foot print for stability and its large 10 wheels allow for easy mobility
• Wheels on top of the frame help when loading and unloading the fan during transportation and/or storage.
• Motor is Totally Enclosed, Fan Cooled, Dust Protected Motor (TEFC)
• Designed to run on a 15 AMP Circuit.  Actual Draw Approx. 14 AMP.

SPECIFICATIONS:

• Size:  24"

• HP:  1.0

• CFM:  12,867

• Dimensions:  30" x 32" x 63"

• Weight:  150 lbs.

• Model No:  24-HD-T

• Part No:  913-1180

Features / Benefits

• HEAVY-DUTY SHROUD and GRILLE - 24-HD-T's shroud increases air velocity for large area ventilation and allows attaching of the Smooth Bore Ducting for ventilation over increased distances.


• WELDED STEEL ROLL-CAGE FRAME - 24-HD-T showcases a solid, welded steel roll-cage frame.
  • 1" square tubing completely encloses and protects the internal components of the fan such as the shroud, motor and fan blades.
  • Welds eliminate the need to continuously maintain/tighten nuts and bolts
  • The 24-HD-T is designed and manufactured to take the beatings that come with industrial work.


• HIGH CFM OUTPUT - blades are designed specifically the the 1 HP Motor for the greatest performance possible.  Enclosed shroud directs the air pattern over greater distances towards the desired location.


• ADJUSTABLE TILT - 24-HD allows the user to easily adjust the fan tilt from +30° upward to -50° downward at 10 degree increments.  The 8 position tilt is easily adjusted by simply pulling the tilt latch open and adjusting the air pattern to the desired level.  80° of tilt allows for ventilation at a wide variety of heights.

• LARGE 10" & 7" RUBBER WHEELS - will never go flat and are capable of rolling over almost anything you'll run into:  rocks, mud, pipe, glass, etc.  Where ever you need this fan you'll be able to get it there quickly and safely.

  Unique to the 24-HD-T are two 7" hard rubber wheels attached at the top of the frame.  These secondary wheels help in loading and unloading the fan onto truck beds or similar means of transportation/storage.
