Walk-Behind - Saw Menu   >   Husqvarna Gas Flat Saw, 20", 24"




Husqvarna Extractors - Self-Cleaning for Silica Dust Extraction

Flat Saw:  20 & 24"
---  Self-Propelled  ---
Brochure
Husqvarna Walk-Behind Saws - Sales Brochure.

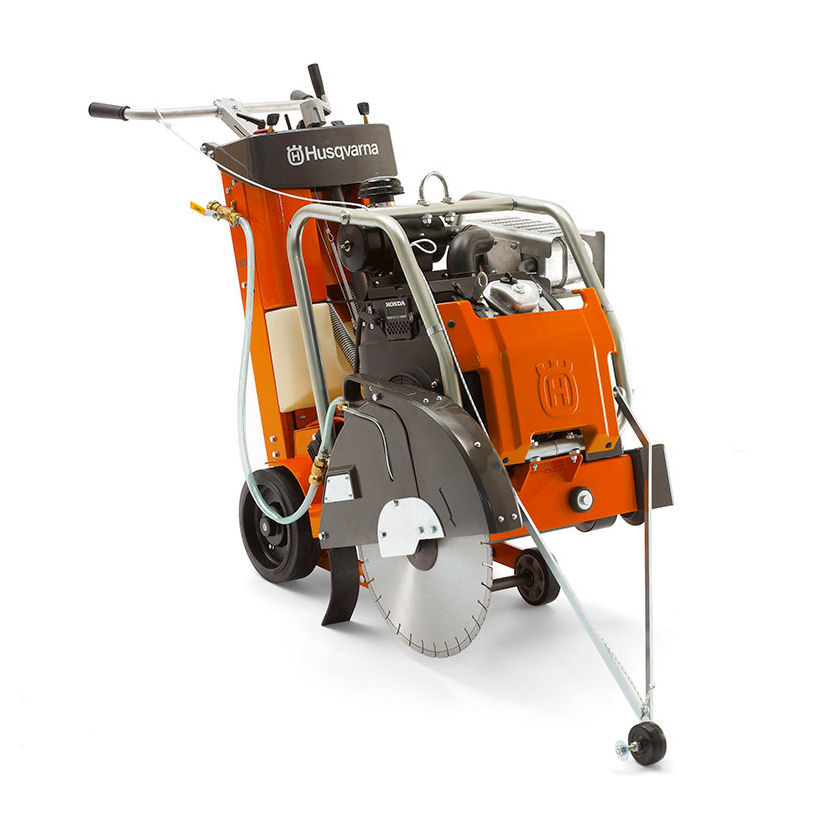

Husqvarna FS 500 Series Push Saws, 20" & 24"

FS 500 Self-Propelled Series
Gasoline 20" & 24" Self-Propelled

(shown with water tank, not included)





Husqvarna FS 500 - Gas Self-Propelled, 3-Sizes

  • Powerful, Self-Propelled, Compact Size

  • A+ for Medium to Small Service Repair Projects
    Provides Optimum Power for More Demanding Jobs





$xx.xx
#FS513, 20", 11 HP, #513, Item No.  967045901



$xx.xx

#541208286, Water Tank Kit, 6.6 Gallon - Fits all three saws





$xx.xx
#FS520, 20", 20.8 HP, Item No.  967045902



$xx.xx
#FS524, 24", 20.8 HP, Item No.  967046103



* For best price please call or request a quote by entering a quantity.  The item is placed in the shopping card and labeled, "Quote Request."  Within the business day you'll receive a quote that'll include availability and shipping cost  if any.  Note:  any 3 pcs of Husqvarna equipment ships free.



Features:
  • Power Source:  Gasoline
  • Transmission:  Self-Propelled
  • Blade Depth Control:  Spring assist screw feed
  • Locking differential drive system increases blade performance when cutting uneven surfaces.





Specs - FS513, 20":

  • Power:   11.0 HP Honda Engine, 23.7 cc
  • Cylinders/cycle:  1/4
  • Starter:  Recoil
  • Blade Size:  20"
  • Arbor:  1"
  • Max Depth of Cut:  7-5/8" with 20" blade
  • Weight:  424 lbs
  • Dimensions:  66" x 26" x 42"
  • Fuel Tank Size:  1.6 gallon.

Specs - FS520, 20":

  • Power:   20.8 HP Honda Engine, 41.9 cc
  • Cylinders/cycle:  2/4
  • Starter:  Electric
  • Blade Size:  20"
  • Arbor:  1"
  • Max Depth of Cut:  7-5/8" with 20" blade
  • Weight:  493 lbs
  • Dimensions:  66" x 26" x 42"
  • Fuel Tank Size:  2.2 gallon.

Specs - FS524, 24":

  • Power:   20.8 HP Honda Engine, 41.9 cc
  • Cylinders/cycle:  2/4
  • Starter:  Electric
  • Blade Size:  24"
  • Arbor:  1"
  • Max Depth of Cut:  9-5/8" with 24" blade
  • Weight:  502 lbs
  • Dimensions:  66" x 26" x 42"
  • Fuel Tank Size:  2.2 gallon.





Applications

  • Productivity push saw with excellent weight distribution and stability which enhances maneuverability

  • Compact size and weight makes it easy to transport.







Benefits

  • Patented IntelliSeal blade shaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings

  • Adjustable handlebar adjustment

  • Extendable right rear wheel increases stability and reduces fatigue

  • Gas assisted raise/lower system reduces the force required to raise and lower the blade in and out of the cut

  • Optimum power transmission to the blade due to the Poly V-belt which increases production.
