Walk-Behind - Saw Menu   >   Diamond Products - Saw, 20"


20" Walk Behind Saw
---  Push Model, Gasoline  ---		 Brochure
 Diamond Products 20" Concrete Saw, - sales brochure.





Diamond Products 20" Concrete Saw, 11 HP Gasoline.

Diamond Products, CCE0900
Portable Walk Behind Saw, Gasoline

CCEO900_S.png (420027 bytes) CCEO900_SA.png (382716 bytes) CCEO900_T.png (980888 bytes) CCEO900_D.png (230259 bytes)

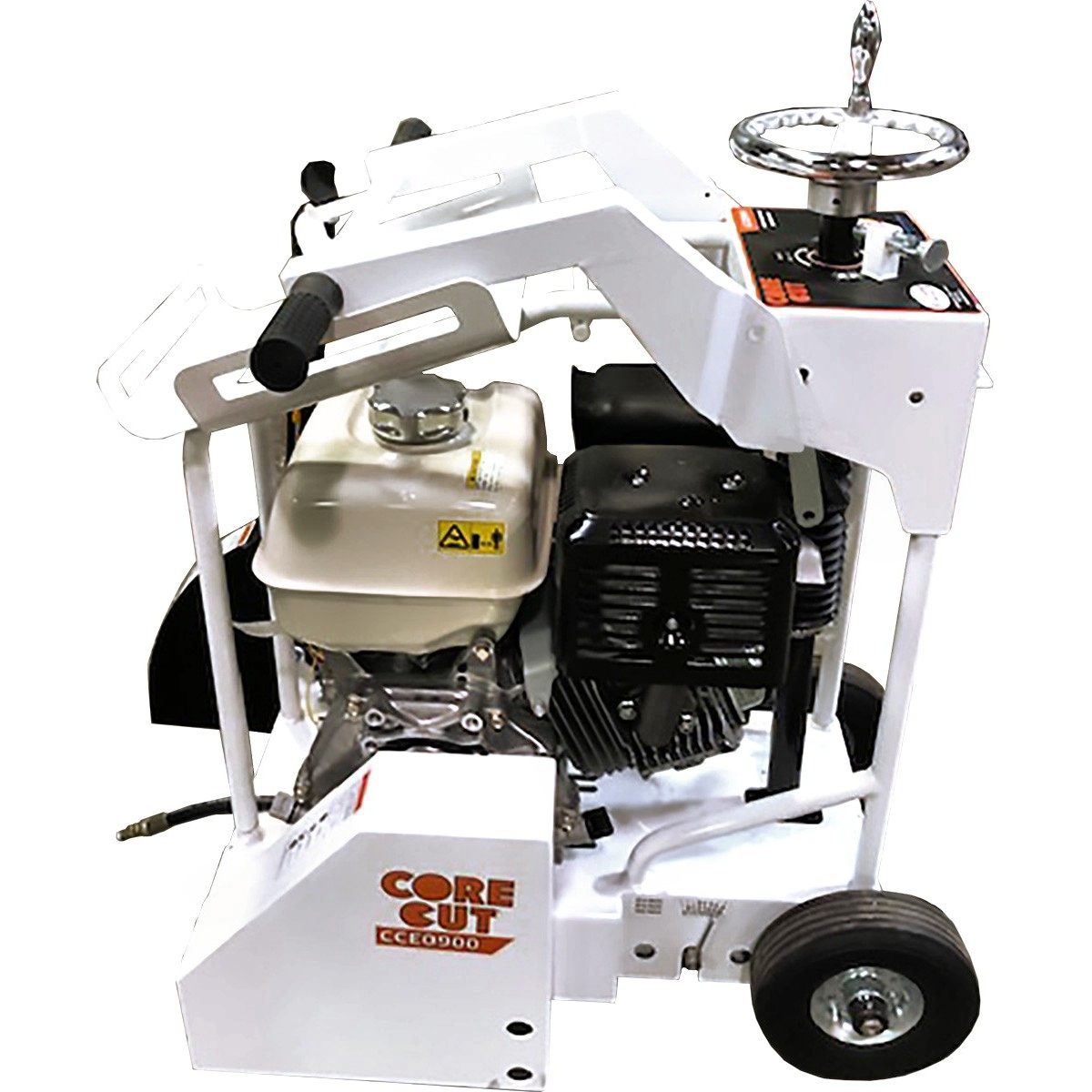

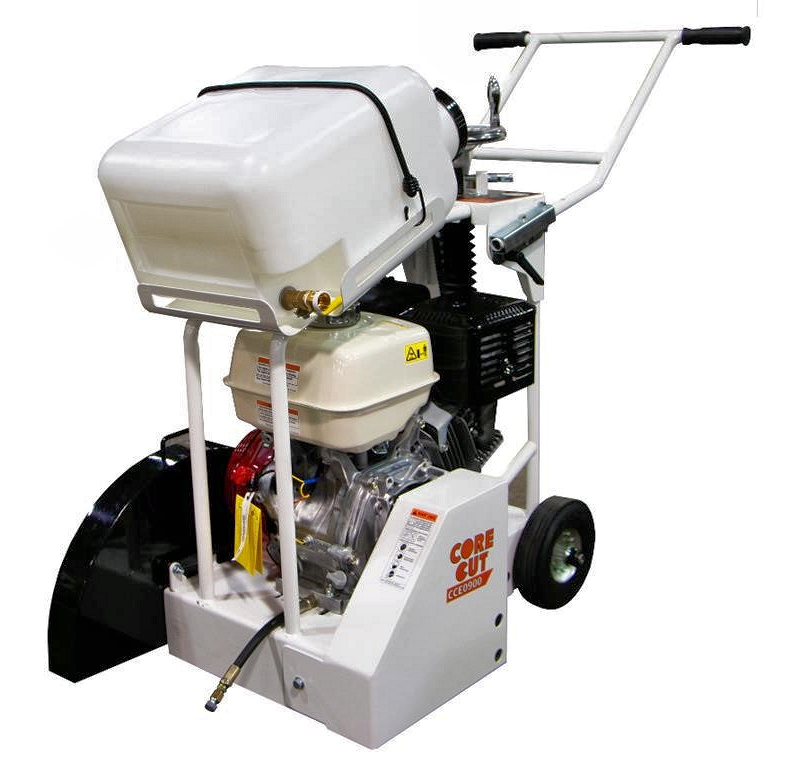

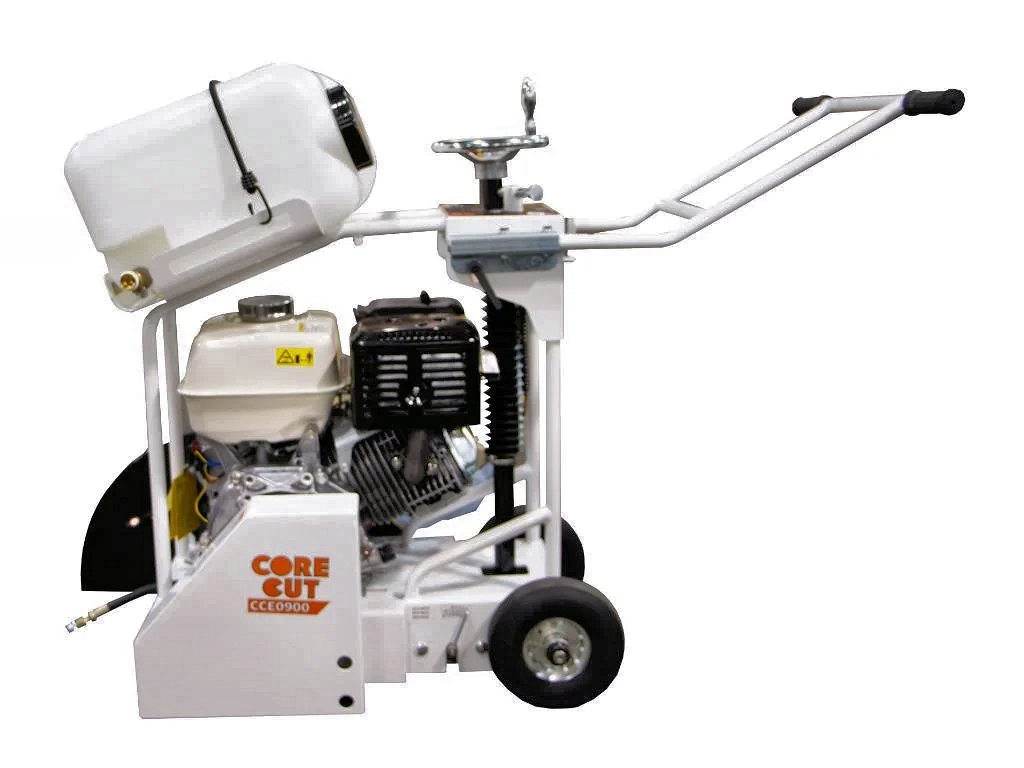

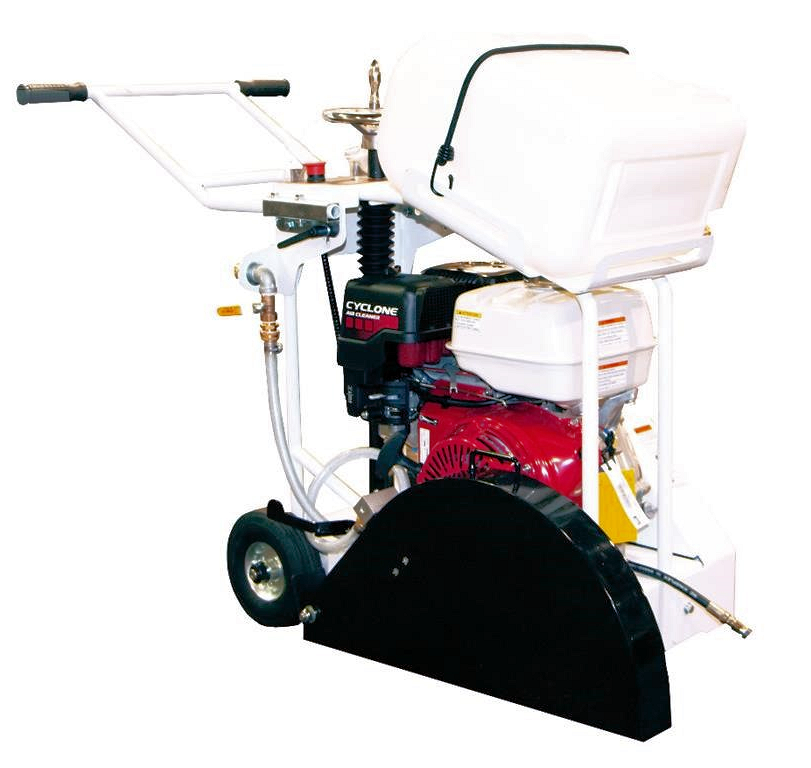

CCE0900 20" Portable Saw

--- HD, Solid, Design But Light Enough for Two People to Carry

  • Honda GX390 Engine, 11.7 HP with cyclone air filter
  • Easy to read built-in depth indicator
  • Uses 14, 18" or 20" Blades
    • 7-5/8" Depth-of-Cut with a 20" blade
  • Precision dial screw feed for depth adjustment
  • Heavy duty adjustable and retractable handle
  • Poly V-belts
  • Water tank and lifting bale included
  • One Year Warranty.

For additional information  --- click on brochure (right)



s

s

Specifications
Max. Depth-of-Cut 7-5/8"
Blade Shaft Diameter 1"
Arbor Size 1" with single drive pin
Blade Shaft RPM 2600
Blade Raise / Lower Precision screw feed
Blade Side Right side only
Folding Stand Wheel Kit 48547



Concrete & Asphalt Blades

We offer 14" - 36" blades to maximize your productivity when using the CCE0900 or any other walk behind saw.
Pro Cutter Blades, Walk-Bhind 35 - 72 HP SawsTo optimize performance and life, select a blade to match the saw's horse power (HP).

We offer the following 2-blade types:

  1. Low HP (5 - 35) - also known as High Speed
  2. High Performance blades for 35 - 75 HP saws.

To view our Walk Behind blade
selection < click here >


20" Portable Walk Behind Saw

Model - Size Motor Engine Size Power Wgt (lbs)  Price
CCE0900-20 Honda
GX390		 11.5 HP Gas 275 $x,xxx.xx
* For best price please call or request a quote by entering a quantity.  The item is placed in the shopping card and labeled, "Quote Request."  Within the business day you'll receive the quote.
