Early Entry Saws   >   Diamond Products CC190PRO-EE.




First-Cut
Early Entry Saw



One Saw Does It All ----  Use 10", 12", 13" & 14" Blades!
USA Made DDM-CONCUT Diamonds.     Everything is HD ---- Addresses the Shortcomings of the 4000 SC
Brochure
DP 190 Early Entry Saw - Brochure.
Optimal Time to Cut:  2 HOURS after concrete finishing and before the final set.



USA Made Early Entry Saw - 14" Blade Capacity.

Diamond Products
#CC190PRO-EE Early Entry Saw

Early Entry Saw - 14" Blade, model CC190PROEE Early Entry Saw - 14" Blade, model CC190PROEE Early Entry Saw - 14" Blade, model CC190PROEE.




14" Blade Capacity
---  Gasoline

$xx,xxx.xx

  • Blade Sizes:  10" - 14"

  • Solid USA Steel Construction

  • Powered by Honda GX630 Engine --- 20.8 HP, 35.6 Torque (Soff-Cut® 4000 uses a Kohler CH640 engine)

  • Spring-Load Skid Plate / Block Assembly --- keeps the skid plate down on the floor to further help prevent spalling

  • Arbor Size:  1" with Pin Hole --- Accepts any blade with a 1" arbor.
* For best price please call or request a quote by entering a quantity.  The item is placed in the shopping card and labeled, "Quote Request."  Within the business day you'll receive the quote along with delivery time.




USA Made Early Entry Saw - Guard / Skid Plate Assembly.

Guard / Skid Plate Assembly
---  In All First-Cut Early Entry Saws

Guard / Skid Plate Assembly
--- True Early Entry System
  • Spring-loaded skid-plate is kept to the floor to prevent aggregate from pulling out of the slab

  • There is no plastic in the guard, it's low maintenance and HD built.



Saw Features

  • Handles .110" to .250" thick blades

  • Lifting hook for easy transport

  • Up-Cut Blade to Keep Debris from going back into the cut

  • Raise and lower adjustable handle bars, HD handle design

  • Vibration dampeners to prevent rattling that disrupts the skid plate function

  • Self-aligning blade shaft bearing

  • Self-Propelled, Drive Speed 0 - 80 feet per minute

  • Easy access to battery with HD isolator switch to prevent power drain

  • Includes Electric Start, Low Oil Alert, Tach/Hour Meter.





Specifications

  • Blade Sizes:  10" - 14"

  • Arbor:  1" with single drive pin

  • Blade Depth Control:  Electric

  • Max Depth of Cut:  3-5/8" with 14" blade

  • Weight:  420 lbs.

  • Power:  Honda GX630, 20.8 HP, 35.6 Toruq (lbs.-ft)

  • Starter:  Electric

  • Power Source:  Gasoline

  • Transmission:  Self-Propelled

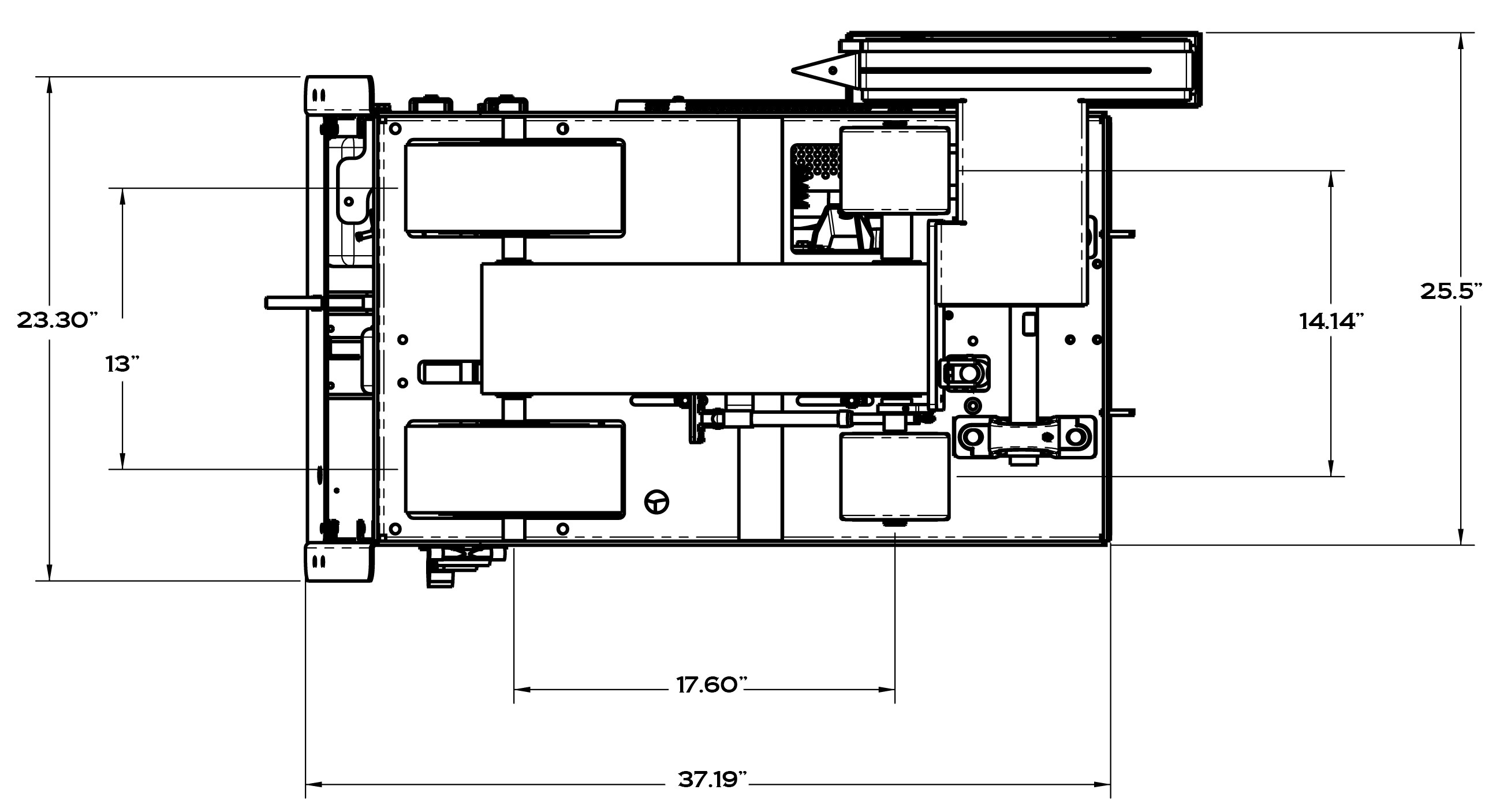

  • Dimensions:  see pics ---






Accessories

Description

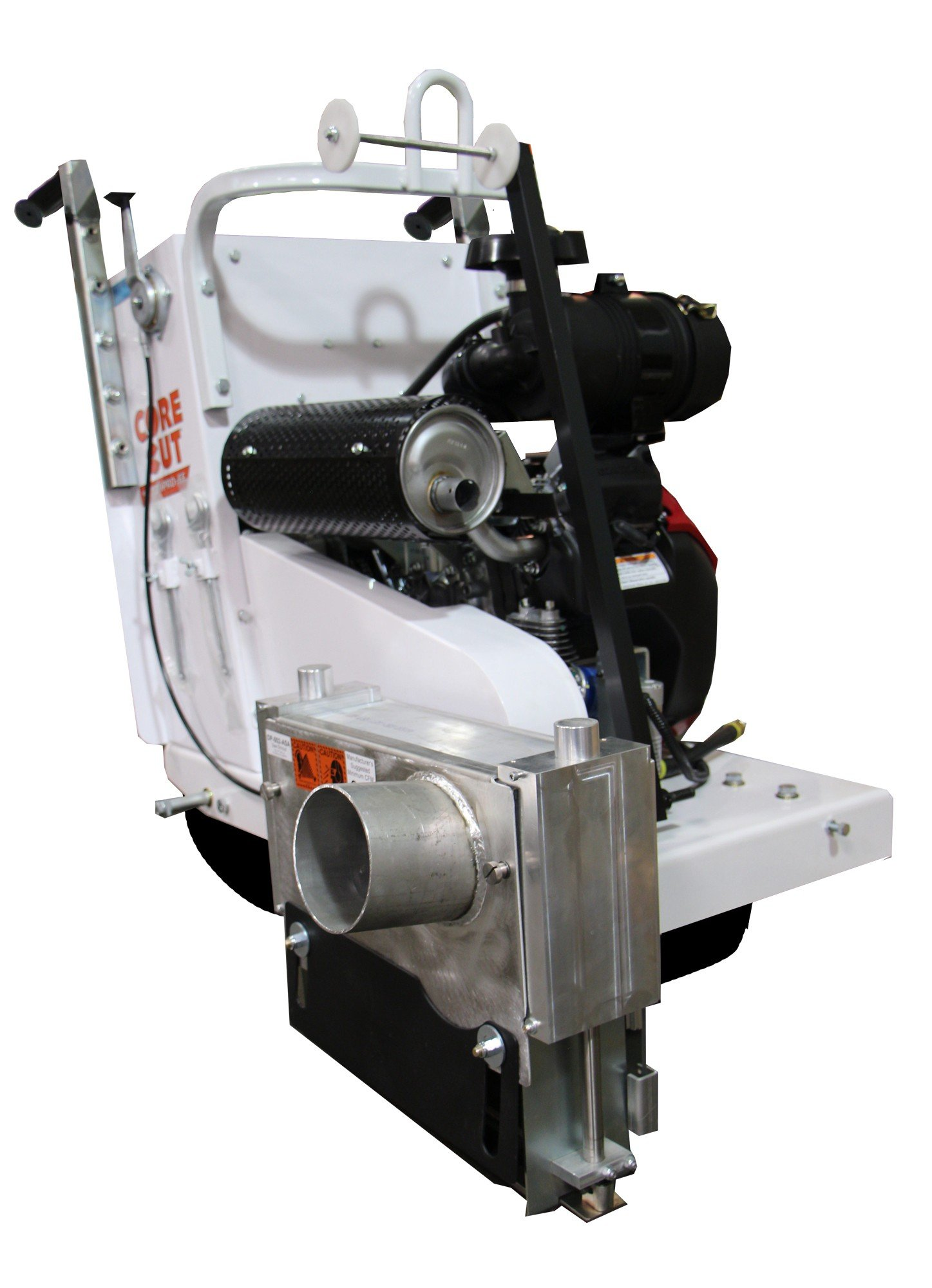

Dust Guard w/ 5" Port, Side Cover Plate Fits Diamond Products Early Entry Saw, Model CC190PRO-EE, #80580 $xxx.xx
Vacuum Hose Port Adapter, 3" - 5" Installs into dust shrouds with 3" outlet, #82102 $xxx.xx
Spot Light Kit #78751 $xxx.xx
