3-Hole Trapezoid - Metal    >   2-Diamond Bar


Diamonds --- HW Machine Grinding

Standard Trapezoid, Premium Quality - 2 Bar



Standard Trapezoid Plate, 2 Diamond Bar
Std Trap - Includes (3) M6 holes and (3) Lock Pin holes.--- includes (6) mounting holes:  (3) M6 threaded, (3) locking (not shown) - see reverse side image for all 6 holes (right)

Aggressive bar format cuts fast, leaves more scratches than the double round diamond.

Expected Footage:  Up to 20,000 sq ft per set - depending on the match between the concrete, bond type and grit.



 Private Labeled for Many

USA Dust Guard - Floor Diamonds ~ 30% Less than the Competition!



FEATURES / BENEFITS:

  • Resurfaces damaged concrete floors to produce a superior concrete surface ready for polishing, coating or sealing.

  • Double rectangular segments also removes lippage and light adhesives and coatings.

  • GRITS:

    • 18 Grit - Can be used as 1st step to grind a rough concrete slab, remove coating up to 12 mil thick

    • 30 Grit - Can be used to expose aggregate, remove scratches from 18 grit, remove thin-mill coatings

    • 60 Grit - Can be used as 1st step on bare concrete, remove scratches from grinding previously with 30 grit

    • 120 Grit - Used after the 60 grit metal to remove 60 grit scratches.

Part Number Grit Size Unit Price

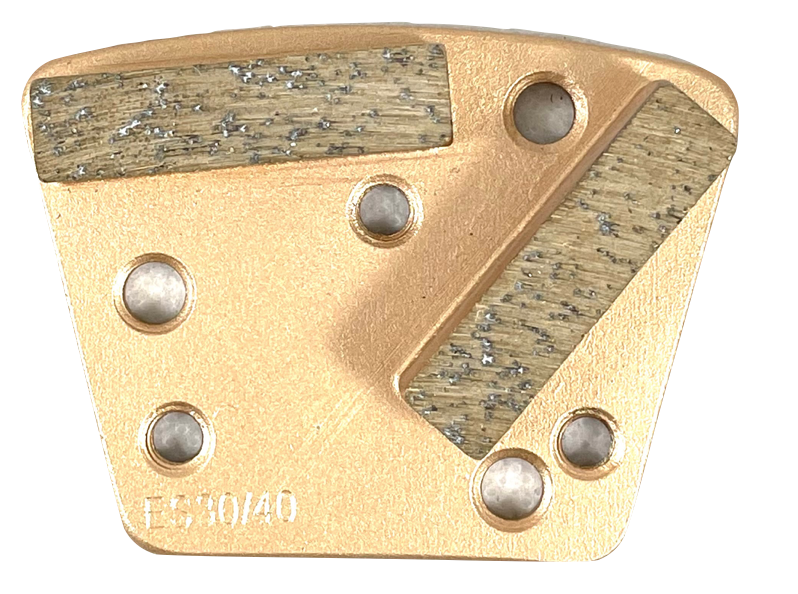

Extra-Soft Bond - GOLD - For Very Hard Concrete.

HTC-2B-XS18 18 / 20 $19.90
HTC-2B-XS30 30 / 40 $19.90
HTC-2B-XS60 60 / 80 $19.90
HTC-2B-XS120 120 / 150 $19.90

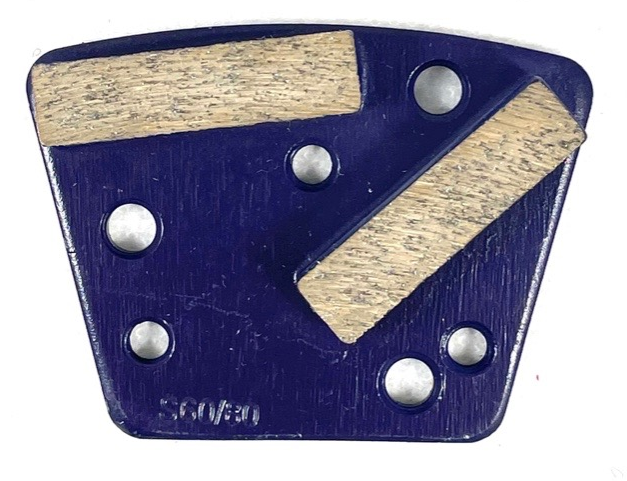

Soft Bond - For Hard Concrete.  Bonds needs to be soft to expose diamond crystals to grind the hard surface.  Hard  concrete contains hard granite, quartz, river stone, flint rock.

HTC-2B-S18 18 / 20 $19.90
HTC-2B-S30 30 / 40 $19.90
HTC-2B-S60 60 / 80 $19.90
HTC-2B-S120 120 / 150 $19.90

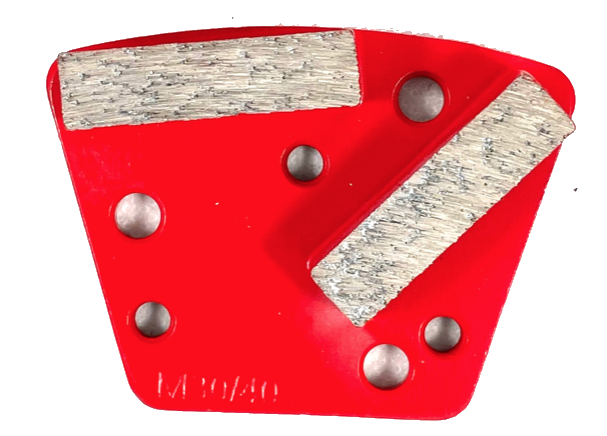

Medium Bond - RED - Suggested in most cases, most popular and most common bond used.  For use on floors containing common pit gravel and/or medium river stone, traprock, crushed gravel.  The Soft and Hard Bonds are typically reserved for extreme (uncommon) cases.

HTC-2B-M18 18 / 20 $19.90
HTC-2B-M30 30 / 40 $19.90
HTC-2B-M60 60 / 80 $19.90
HTC-2B-M120 120 / 150 $19.90

Hard Bond - For Soft Concrete.   Bond has harder metals in its matrix to withstand the abrasion, so the diamond crystals are not kicked-out before they have a chance to work the surface.  Soft concrete contains limestone, sandstone, dolmite, soft shell.

HTC-2B-H18 18 / 20 $19.90
HTC-2B-H30 30 / 40 $19.90
HTC-2B-H60 60 / 80 $19.90
HTC-2B-H120 120 / 150 $19.90
