Respiratory & Head Protection   >   GVS P100 Half Mask Respirator


GVS Respirators Manufactured in the USAGVS Filtration Technology

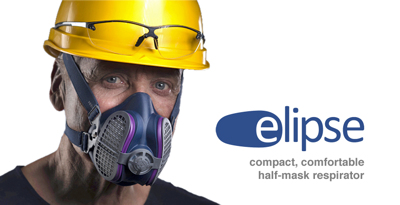

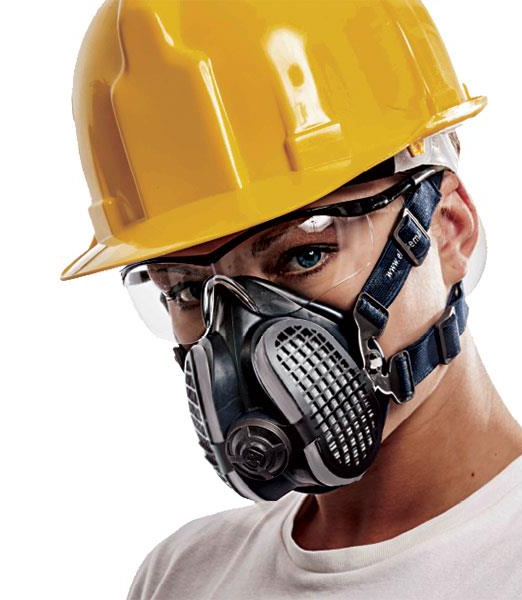

Half Mask Respirator

Small Size, Low Profile, Great Vision

Meets All NIOSH, OSHA & MSHA Requirements



COVID-19 NOTICE:          GOOD NEWS!
In response to our nation's immediate respiratory protection, production of the GVS Elipse respirators and filters have been moved from England to Findlay, Ohio - effective 30 April 2020.  The production capacity is estimated to be 5000 masks per day.

AVAILABILITY:  As of 1 January 2021, we have stock and are shipping.







Complete P100 Respirator with HEPA Particular Filters.Protects against Dust Particle, Metal Fumes, Mists, Vapors, Virsus

  • Compact, Extreme Filter Life (washable)

  • Very Soft / Super Comfortable to Wear

  • A+ to use with Visors and Safety Glasses





Pricing / Ordering

SPR451 - Small / Medium SPR457 - Medium / Large

Price includes Face Piece with P100 Filters



$26.21       1+

$25.16       5+

$23.74       * 20+



$26.21       1+

$25.16       5+

$23.74       * 20+

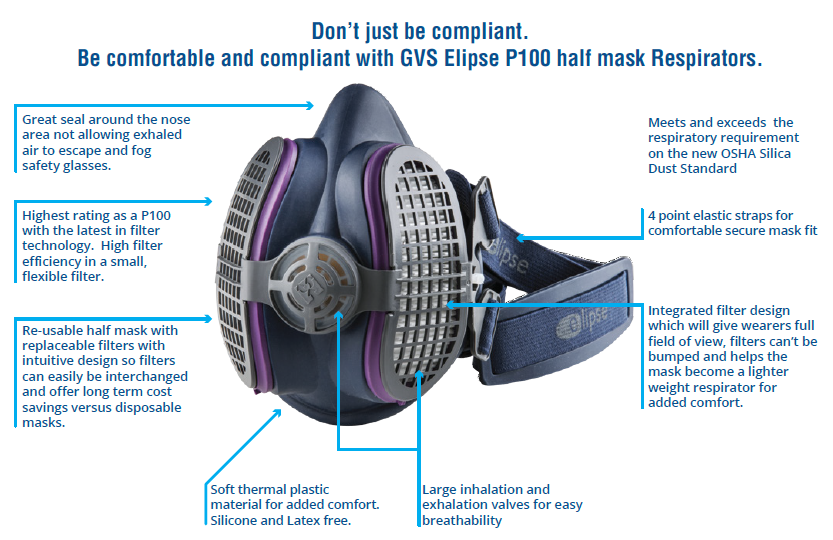

Each Elipse Respirator includes a P100 Filter Set

  • Latex and silicone free

  • Lightweight thermoplastic face piece that is comfortable to wear for long periods of time

  • Low profile filters provide unobstructed field of vision

  • 99.97% minimum filter efficiency rating @ 0.3 micron molecule size

  • Provides protection from dust, metal fumes, oil and water mists and micro-organisms (i.e. bacteria and viruses)

  • NIOSH Assigned Protection Factor (APF):  10.



Elipse Mask Sizing Chart
Plus Filter Select & Care Guide

Elipse Sizing Chart





Replacement P100 HEPA Particulate Filters (2).Elipse P100 Pleated Filter:

  • Does Not Contain Activated Charcoal

    • #1 property of an activated charcoal is to draw or attract airborne dust and bacteria molecules

    • charcoal filters even when the respirator is not being worn continues to attract dust, bacteria and moisture which prematurely contaminates the filer's hygiene and shortens its life

  • GVS Synthetic HESPA Filter Media

    • ensures high filtration protection and low breathing resistance to assure less fatigue for the user

    • pleats on the filter increase the filter's surface area to capture at least 99.97% of 0.3 micron airborne particles without increasing its physical size

    • moisture resistant

  • P100 Rating:  captures 99.97% of 0.3 micron airborne particles and is strongly resistant to oil mist -- from asbestos, silica, spreading of insecticides by spraying, spores, bacteria, you can't do any better than a P100 rated filter.





Replacement Filters - 10 Pair / Case
SPR321 - P100 HEPA
Replacement P100 HEPA Particulate Filters (2).
SPR450 - P100 HEPA + ODOR, Nuisance, Fumes
Replacement P100 HEPA + Odor Filters (2).

$115.00
Per Case

$156.00
Per Case





GVS Filters:  Outlasts Competition by 20, 50 even 100 Times Longer!

  • Elipse filters do not have any activated charcoal which, by its nature, attracts any type of airborne particle like a magnate:

    • Elipse filters are shipped installed in the mask

    • Competitive masks have to sale their filters in a separate, sealed bag to prevent the activated charcoal "from working"

    • Elipse filters can be left exposed to the air (on a work bench) for years and they will not attract nor absorb dust particles.

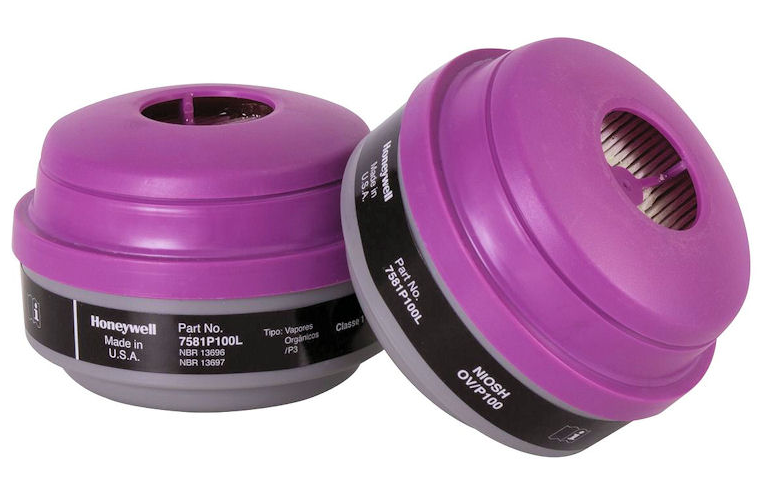

  • Activated Charcoal Filters (used in 3M, Draeger, Honeywell, MSA, North, others) - when exposed to the open air, whether the filter is installed in a respirator or not, are absorbing airborne dust particles and thereby compromising their "intended" life.

  • Bonus:  Elipse P100 filters are water resistant.  They can be used for wet sawing or around water or in wet conditions, charcoal filters cannot.





Additional Filter Protection Information

  • Respirator Filter Ratings - rated according to how much particulate or airborne molecules they can reliably block

  • P100 Filter - A P100 rated filter is the highest protection for personal respiratory protection.  As long as your mask fits properly a P100 filter will block 99.9% of particles 0.3 microns or larger

  • For airborne bacteria or floating, dangerous substances such as fiberglass, silica, wood, sanded lead paint and asbestos, a simple P100 rated filter provides all the protection you could want

  • For asbestos, a particularly hazardous substance, you canít do any better than a P100 rated filter.

  • P100 HEPA + ODOR, Nuisance Filter - provides the above protection plus a layer of activated charcoal to remove additional organic vapors and bad smells from the air youíre breathing.





Accessories

Fit Test - Face Seal Kit, #SPM414:  $13.90

#SPM414 -  This kit includes tubing and two adapters that allow the Half-Mask & 3/4 Face Respirators to be quantitatively fit tested with a TSI Portacount Fit Test Machine.

Fit Testing is a mandatory requirement for any tight-fitting respirator
Primary purpose of fit testing is to identify the specific make, model, style and size of a respirator best suited for each respirator user.

Respirator Fit Testing Methods
Can be administered via Qualitative and/or Quantitative methods:

  • QUALITATIVE is a pass/fail fit test that is based on the respirator wearerís reaction to an irritant to detect leakage into the respirator face piece.

  • QUANTITATIVE uses a machine to measure actual amount of leakage into the face piece and does not rely on wearerís senses.



Protective Case, #SPM001:  $10.90
SPM001

Protective Case

With zipper and belt holder

Protective Case.







Additional Information



Superior to a N95
Paper Mask
Or Any Other P100 Respirator

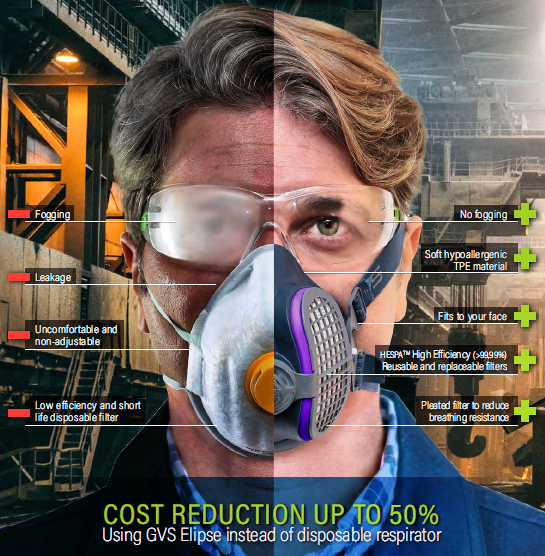

Cost Savings:  GVS Elipse vs "paper" N95 Dust Mask

GVS Elipse - Small, compact, wet or dry use, filter is cleanable.





Soft - Lightweight - Comfortable to Wear

  • Provides a custom design feel - fits the contours of your face (male, female)

  • Will not fog your safety glasses - N95 dust masks do

  • Slim, low profile filters will NOT obstruct your vision - about the size of a credit card x 3/8" thick

  • Mask is 100% re-useable, cleanable, washable

  • Filter:

    • 100% water resistant vs. charcoal filters which absorb water

    • can be lightly blown with air and/or wiped clean with a wet cloth

  • High filter efficiency rating (P100 filter @ 99%) vs. N95 filter @ 95%)

  • Adjustment Strap:

    • durable, elastic, cloth - assures a more comfortable, secure fit

    • N95 straps are thin elastic rubber bands that easily break

  • Easy adjustable breathing apparatus to reduce user fatigue and prevent eyewear fogging

  • Two sizes to choose from:  S/M, M/L.







GVS Filter Technology
The OEM Filter Manufacturer for 3M, Draeger, Honeywell, MSA, North, others.

  • The only half mask respirator that will fit under welding hoods, full face shield and with hearing protection

  • At least 33% smaller than any other half-mask!
  • Filters outlasts charcoal filters 50-100 times longer, outlasts 100's of N95 paper dust masks!







Benefits of a Non-Charcoal Filter

  • P100 Filters "without" Charcoal.Airborne dust and bacteria are NOT drawn or attracted to the pleated filter.  The GVS Elipse P100 filters can be left exposed on a work bench and one year later they'll still be effective.

  • Filters are included and installed in all P100 Respirators - competitive models have to sale their "charcoal" filters separately and they are sealed in plastic.

  • GVS Elipse P100 filters are water resistance including condensation from breathing - goggles and safety glasses will not fog, competitive models fog!

  • Larger, canister style filters for half-mask respirators.Their small, thin design greatly improves user visibility and mobility vs. obstructive cartridge filters (right)

  • GVS filter life vs. a Charcoal filter is 20, 50, 100 Times Longer!






Maintaining a GVS Elipse Respirator

CLEANING the FACE PIECE (remove filters)

  • immerse the face piece in a warm cleaning solution, the water temperature should not exceed 120į Fahrenheit
  • scrub with soft pad until clean
  • Add neutral detergent if necessary, do not use cleaners containing lanolin or other oils
  • Disinfect the facepiece by soaking in a solution of quaternary ammonia disinfectant of dilute sodium hypochlorite (30 ml household beach in 7.5 L of water) of another suitable disinfectant
CLEANING the FILTERS
  • GVS HEPA P100 filters are made of a synthetic, water resistance media
  • They can be wiped with a damp cloth, disinfectant wipe or gently blown clean with compressed air as to not degrade the media
  • They cannot be submerged into water nor any other cleaning solution as it will degrade the filter media.

Important Health Report Information



Respirator Cleaning

Disinfecting & Care








  • Are You Wasting Money on Charcoal Filters?

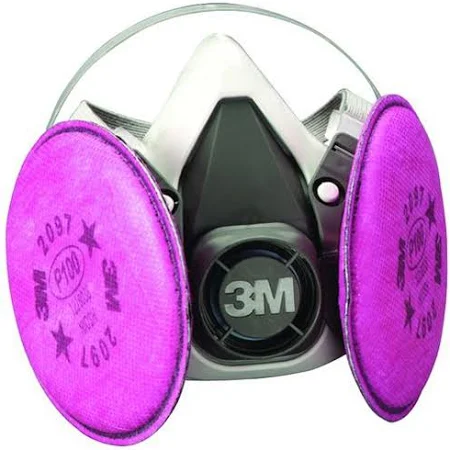

    3M Electro Static Half-Mask Respirator

    Electro static or activated charcoal has an incredible adsorption ability to attract and effectively clean airborne dust particles and vapors by electro-statically binding the pollutants to its vast surface area even when you are not using or breathing air through the respirator.

    With the filtering properties of the charcoal - if the filter is left exposed on a work bench, the ground, in a tool box (even for small durations) - what you paid for will continue to attract and absorb the airborne dust and vapor pollutants.

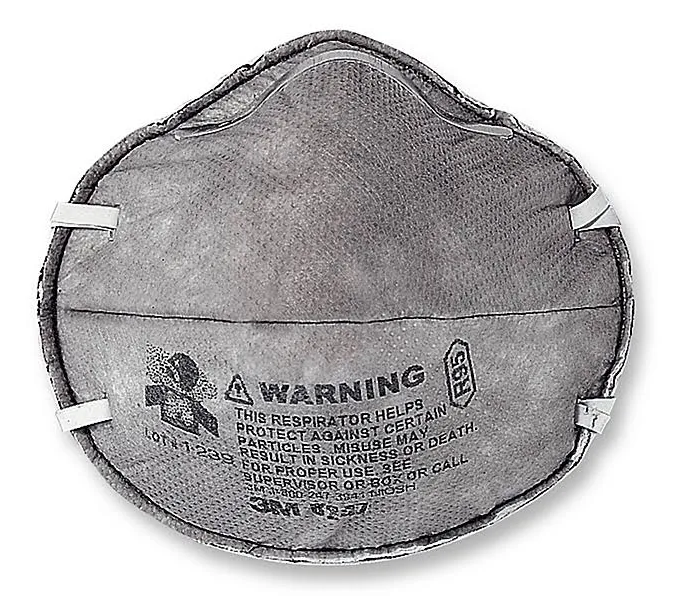

    3M Electro Static Dust Mask.
    •
    •





Asia, Europe, USA OSHA / NIOSH Approved

Certifications

  • NIOSH Approval Number:  P100 TC-84A-6949, P100 with nuisance odor TC-84A-6950

  • Federal Regulations Code:  42CFR84.
