Diamond Blades   >   Dust Control   >   Power Tools   >   Glitter Bits.


USA Dust Guard - Surface Prep & Polishing Diamonds.

Diamond Glitter Bits

Two Grades of Glitter Bits:

  • Grade 1 - for Medium to Hard Mortar

  • Grade 2 - for Hard Mortar and Granite.

Glitter Bit Dust Controller.

For Die Grinder & Accessories, see below



Diamond Glitter Bits, Grade 1 for Medium to Hard Mortar. Diamond Glitter Bits, Grade 2 for Hard Mortar to Granite.
Grade 1 Grade 2



Grind Hard "S" Mortar, Even Granite

APPLICATIONS:

  • Glitter Bit - completing the 90 degree cut-out around a brick.Grind brick mortar joints - vertical, horizontal, inside corners, window & door brick returns

  • Individual brick removal

  • Recessed, Hard-to-Reach, Detailed Grinding

  • Finishes what a diamond blade can't, prevents over cuts into the adjacent material

  • Complete the 90 corner around a brick.

Glitter Bits

d
sd

 * IMPORTANT - for use in variable speed die grinders at 8000 - 10,000 RPM.  For safety, Glitter Bits cannot exceed 10,000 RPM.

Glitter Bit Dust Controller.Variable Speed Die Grinder, Dust Controller

Related Products - see below or click here.



    TWO GRADES *
SIZE GRADE 1 GRADE 2
Shank Dia. Diamond Width Length
1/8" 5/32" 3" $32.00
$56.00
1/4" 5/16" 3-1/2"   $38.00
$68.00
* 1/4" 5/16" 4-5/8" $59.00
---
* 1/4" 5/16" 4-1/4" --- $85.00


Grade 1:  medium to hard mortar.

Grade 2:  x-hard mortar.

* Individual Brick Removal:  Step 1:  use a diamond blade to cut what you can.  Step 2:  complete the individual brick removal with the 4-5/8" or 4-1/4" Glitter Bit - see results below.





Glitter Bits - Description & How To Use
  • Fast, precise removal of hard mortar - head joints, inside wall corners

  • Individual brick removal, hard-to-reach areas, granite counter tops

  • Mortar around window and door brick returns, etc.

Glitter Bit Dust Controller.

CAUTION / IMPORTANT:  For use in a variable speed die grinder whose RPM's do not to exceed 10,000.  The RPM speed of a one speed die grinder exceeds 20,000 RPM.  Our recommended die grinder is the Makita variable speed, model GD0800C (shown below.)

Dust Controller (attached to die grinder, left photo) - an important component for 3-reasons:

  1. dust exposure is reduced

  2. grinding speed increases

  3. life of Glitter Bit increases.

While a Glitter Bit produces 1/10 the airborne dust compared to a diamond blade and angle grinder, the other 90% will lay in the mortar joint.  Re-grinding the dust is detrimental to the speed and life of a Glitter Bit.  To improve production, Glitter Bit life and worker safety, the Glitter Bit dust controller and a vacuum cleaner is recommended.

Glitter Bit - grinding vertical brick joint.

Grind Hard "S" Mortar, even Granite

Glitter Bit - completing the 90 degree cut-out around a brick.

Complete the 90 Cut-Out Around Bricks

Glitter Bit - being used with Dust Controller and vacuum.

Exceptional Life on Hard Mortar
Very Fast Grinding on Soft Mortar


Single Brick Removal:  4-1/4" or 4-5/8" Glitter Bits

Individual Brick Cut-Out - vacuum removes debris to increase grinding speed.

Single Brick Removal w/ Dust and Debris Control

Glitter Bit - professional individual brick removal.

Individual Brick Removal without Over-cuts into Adjacent Bricks





Related Products

Glitter Bit
Dust Controller
Variable Speed
Die Grinder
Collets Oscillating
Diamond Wave Blade
Silica Dust Control
Vacuum
$119.00

#GB112

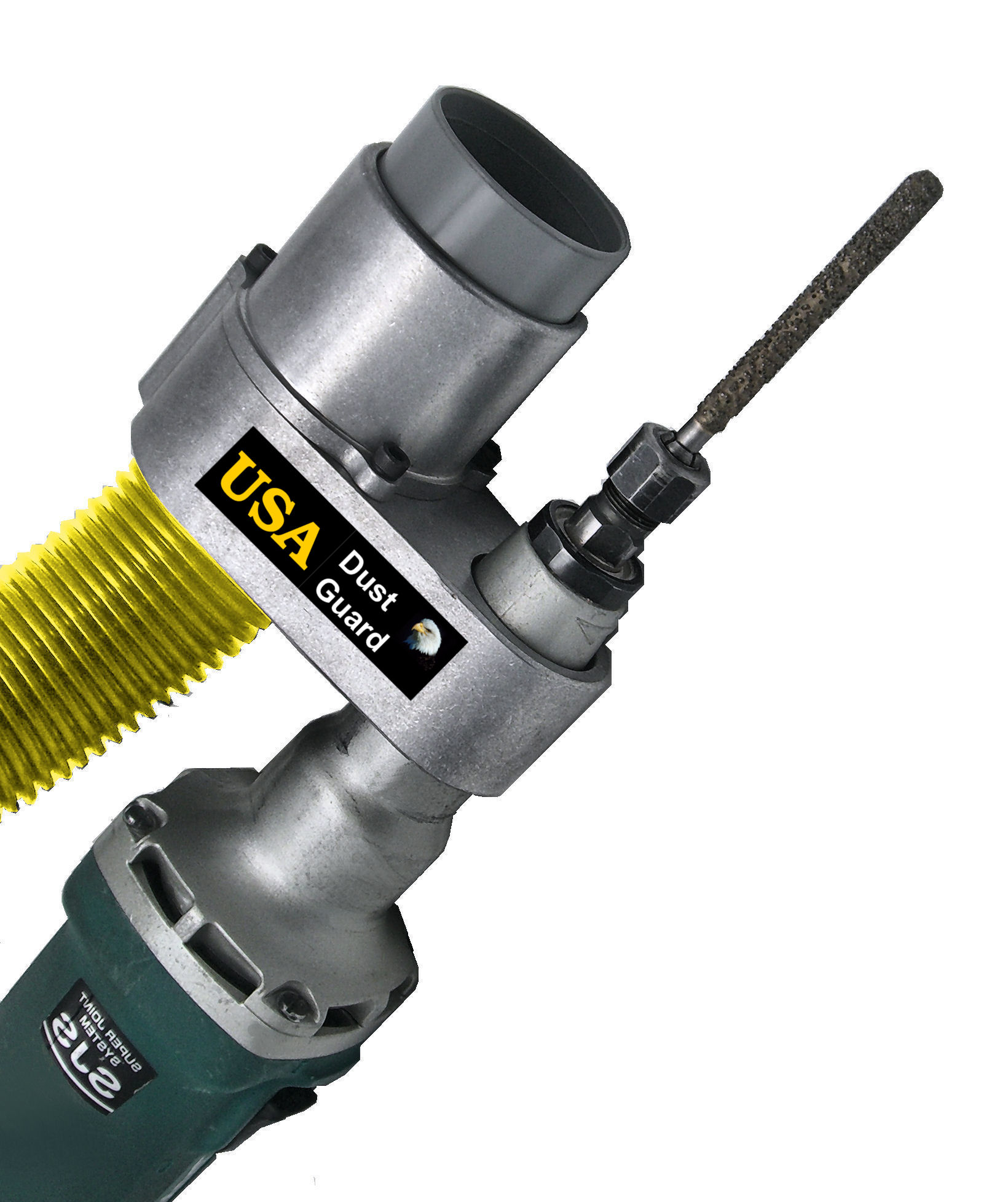

Glitter Bit Dust Controller.

Dust Controller shown attached to Makita die grinder (grinder sold separately.)

Includes a soft vinyl hose cuff for use with a 1-1/2" diameter vacuum hose.  The GB112 Dust Controller fits the following die grinders (may fit others):  Makita GDO800C, Metabo GE700.

$259.00

#GDO800C

Makita Variable Speed Die Grinder.

GDO800C Makita Die Grinder:  6.6 Amp, 7000 - 28000 RPM, 14-5/8" OAL, 3.7 lbs., includes 1/4" collet and flange nut.

Holds 1/8"
Glitter Bits

$ 34.00

Holds 1/4"
Glitter Bits

$ 24.00

Die Grinder Collets, 1/8" & 1/4"

Replacement collets to hold Glitter Bits.

Diamond Wave Blade

Fits Fein Super Cut and Multi Tools

A+ for use on thin mortar joints (butter joints).

< click here for info >

USA Dust Guard "Scaffold" vacuums.

USA Dust Guard - Scaffold Vac

Low Amp Draw, Compact, Small - specifically designed for use on scaffold.

Powerful suction is maintained without electronic pulse cleaning.

Power outlet accepts the die grinder.

< click here for info >
