Dust Guards   >   6" USA Dust Guard


Original 6" Dust Guard.  Now Improved!

6" USA Dust Guard

Best in Dust Control, Weight, Versatility
Designed & Made in Pittsburgh, PA.

Free Grinder
Vac Package

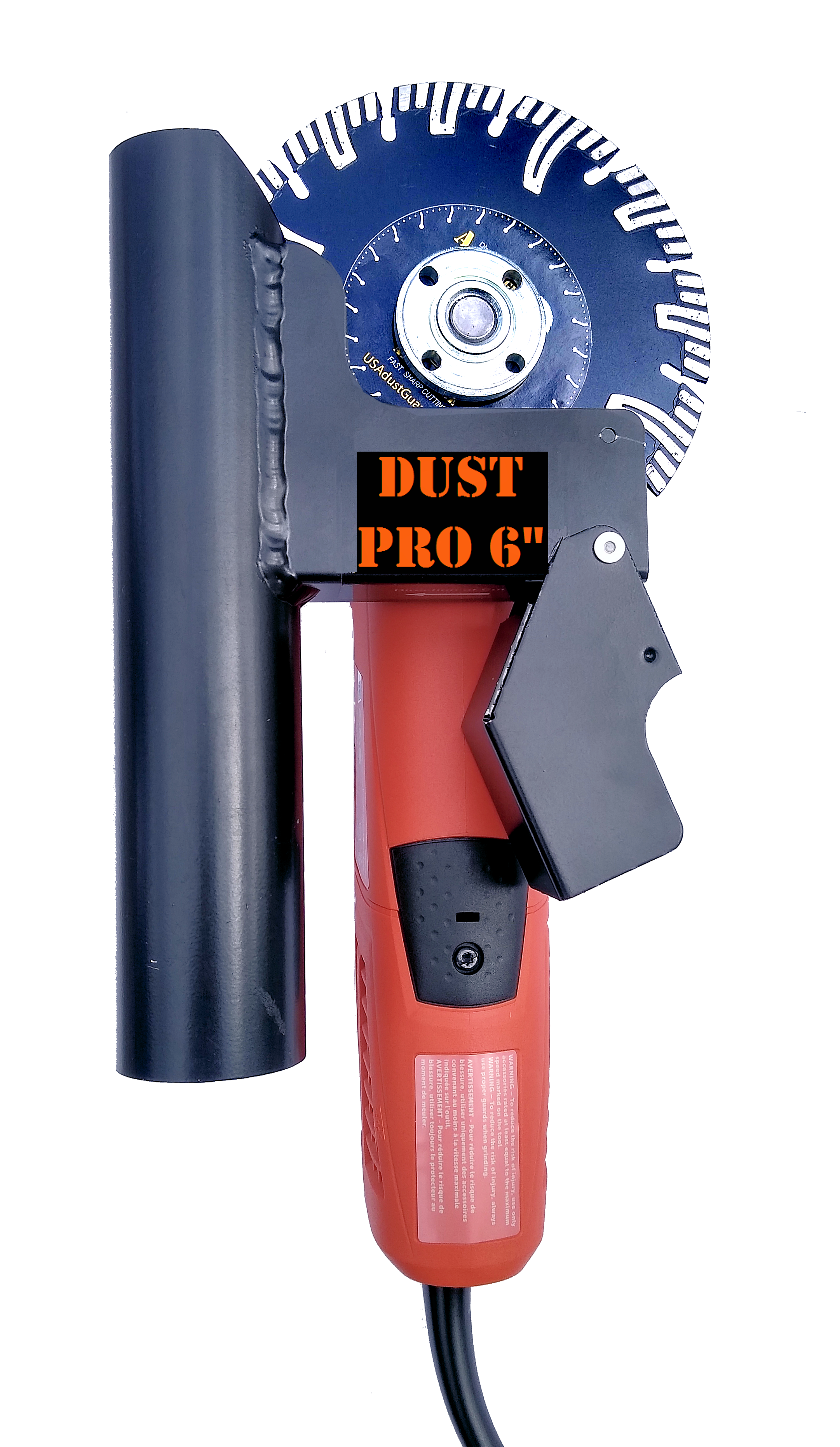

USA 6" Dust Control Guard, 4" - 6" blade capacity.







$155.00

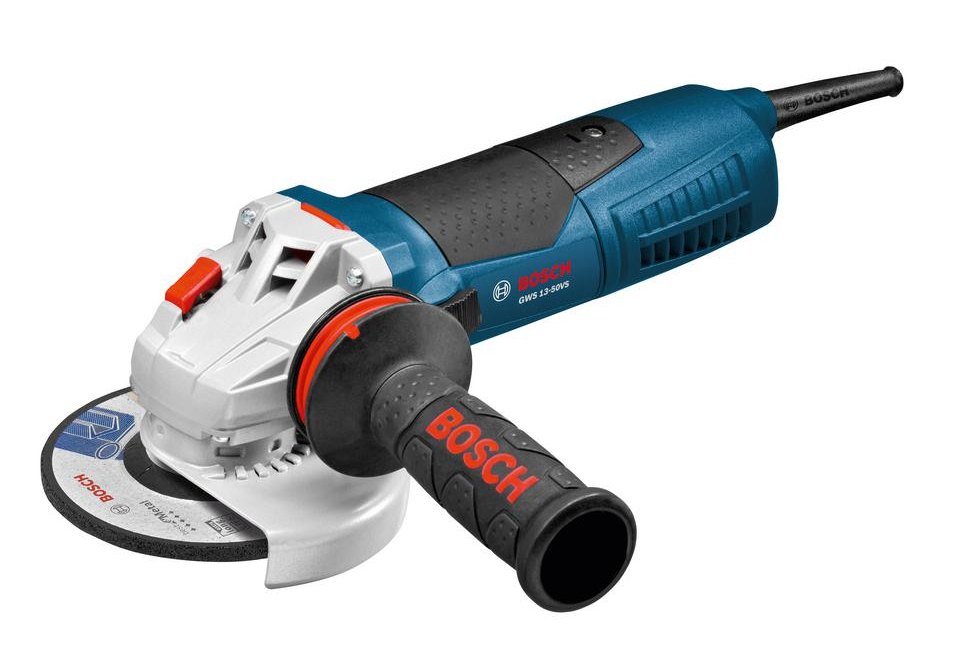

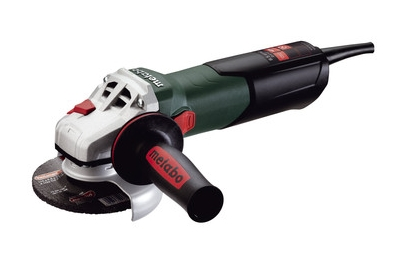

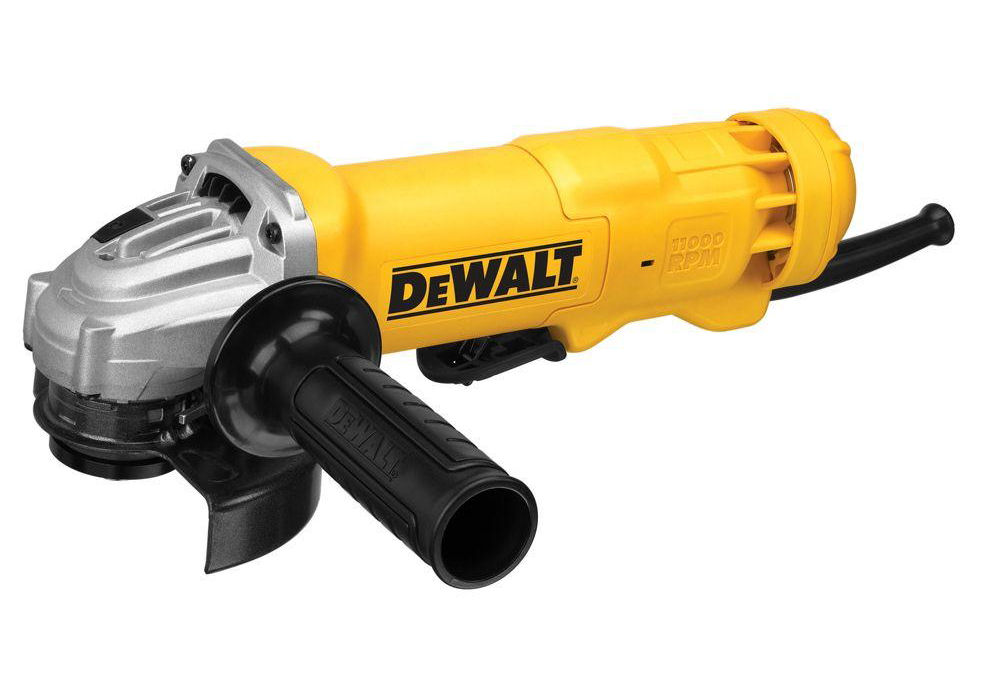

6" USD Dust Guard w/ universal collar, fits most older and new grinders:  Bosch, Dewalt, Makita, Metabo.6" USA Dust Guard, #U6

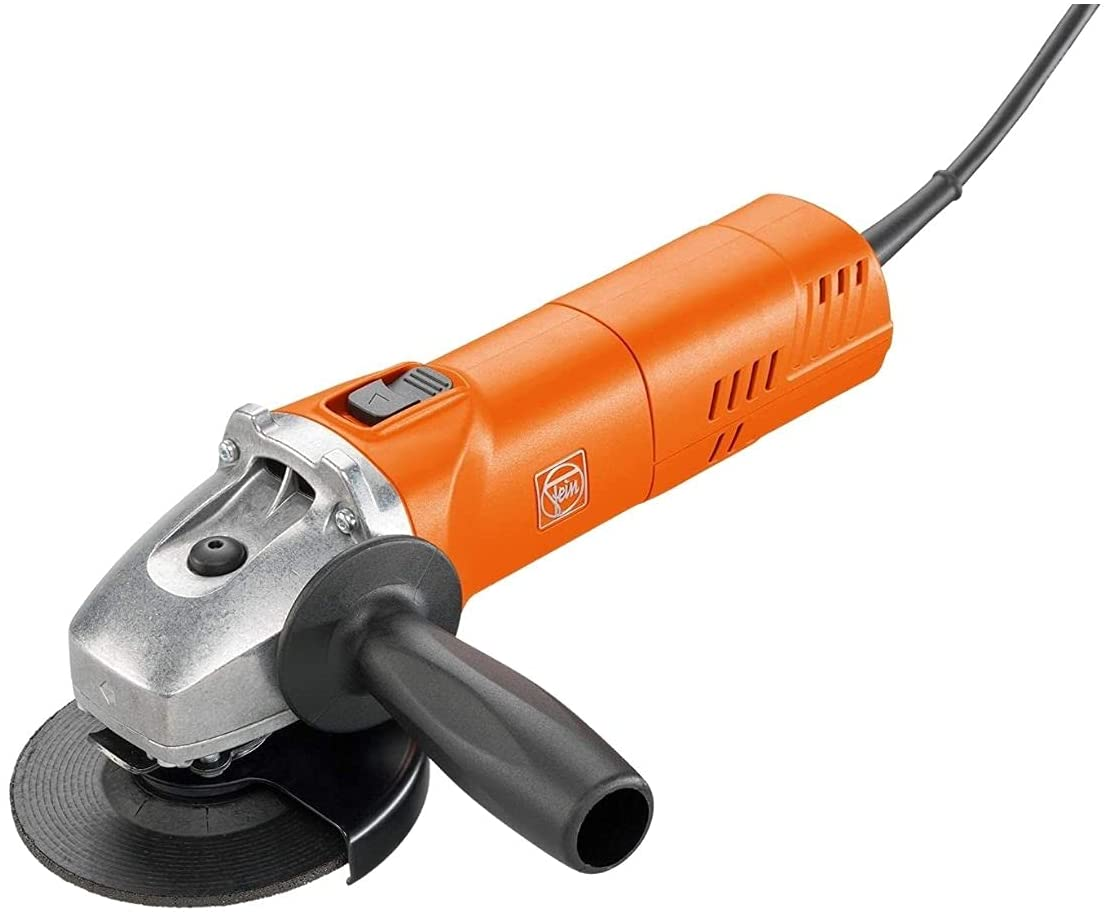

--- Universal Collar fits:  Bosch, Dewalt, Fein, Makita, Metabo

  • Over 96% Dust Control Efficiency
  • 3 times lighter than competitive shrouds:  Bosch, Dewalt, Metabo
  • 2" barrel prevents chunks of debris from clogging inside the guard
  • 1-5/8" depth-of-cut
  • Complete blade visibility

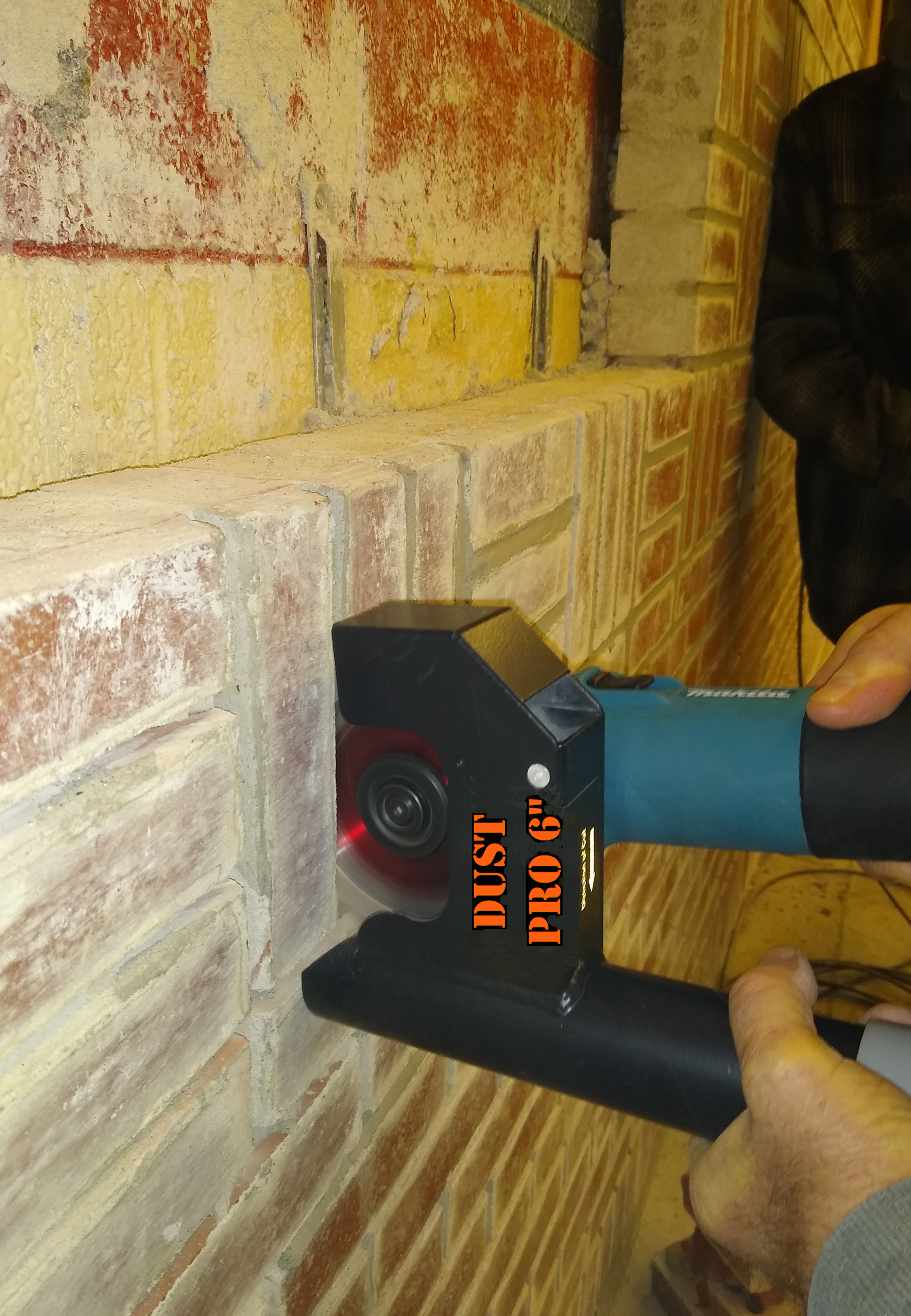

  • Cuts inside wall corners.

USA Made Tuck Point Dust Guard



$139.00    Best Price

Unlimited Quantities at Best Price - 6" USA Dust Guard

Description:

  • UNIVERSAL - fits the following angle grinders:  Bosch, Dewalt, Fein, Makita, Metabo

  • BLADE CAPACITY:  6"

  • DEPTH-of-CUT:  1-5/8", A+ when mortar joints are recessed

  • DUST EFFICIENCY:  +96%

  • VISIBILITY:  Complete blade & work area visibility

  • MADE in USA:

    • high quality, USA craftsmanship

    • 3 times lighter than Bosch, Dewalt, Metabo.



Features:

  • Improved Safety and Durability Features
  • Structural Reinforced Design - secure, solid attachment to the angle grinder

  • Corner Cover, w/ 2 Lock-In Pin Connectors.Twice the Operator Safety - Retractable Corner Cover with twice the holding power to double the operator's safety

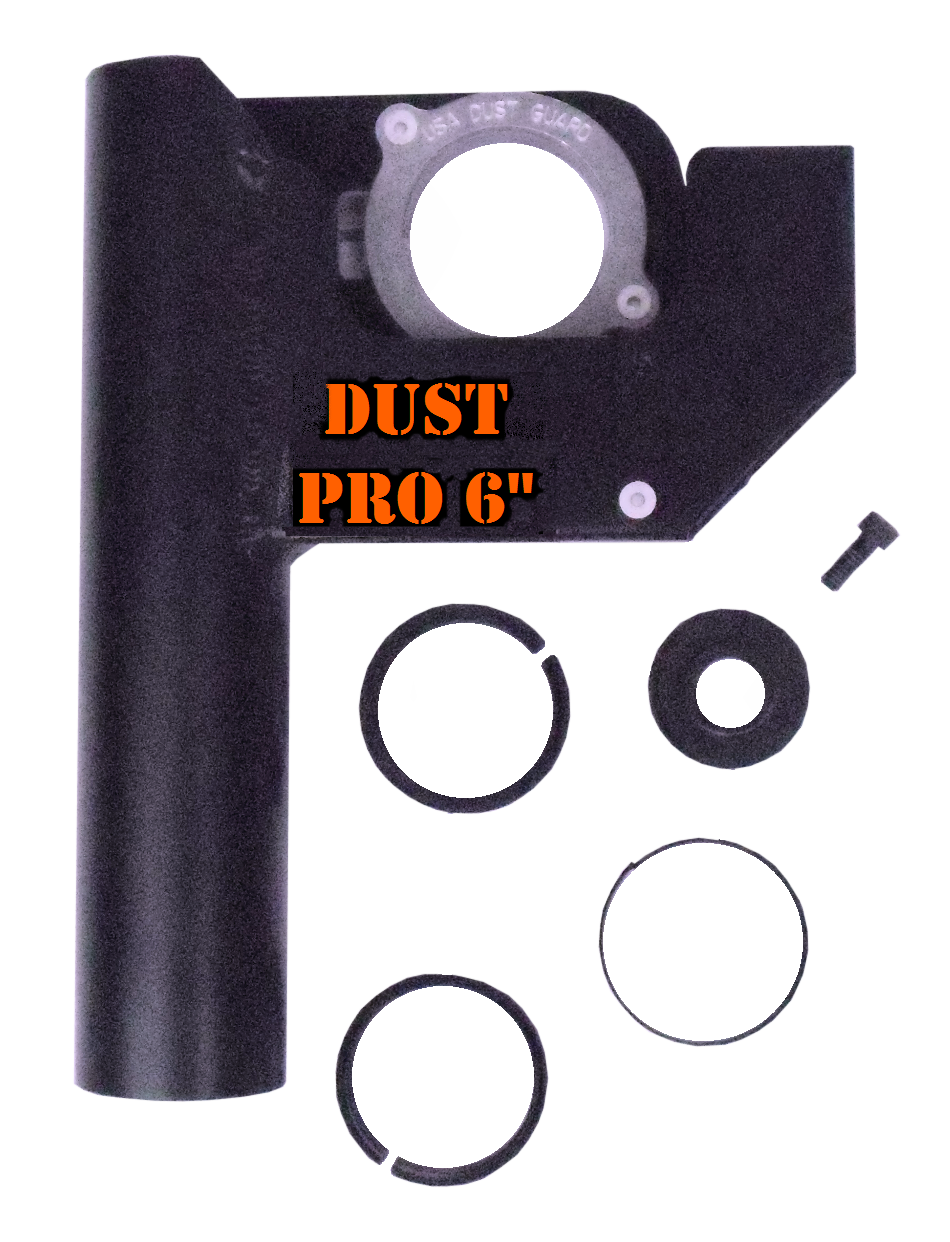

  • Universal 360° Clamp Collar - provides a solid, secure attachment for both the guard and to the angle grinder

    Universal Collar, USA 6" Dust Guard.Versatility of the guard's universal collar and durability increases the guard's value to use again and again on different angle grinders.

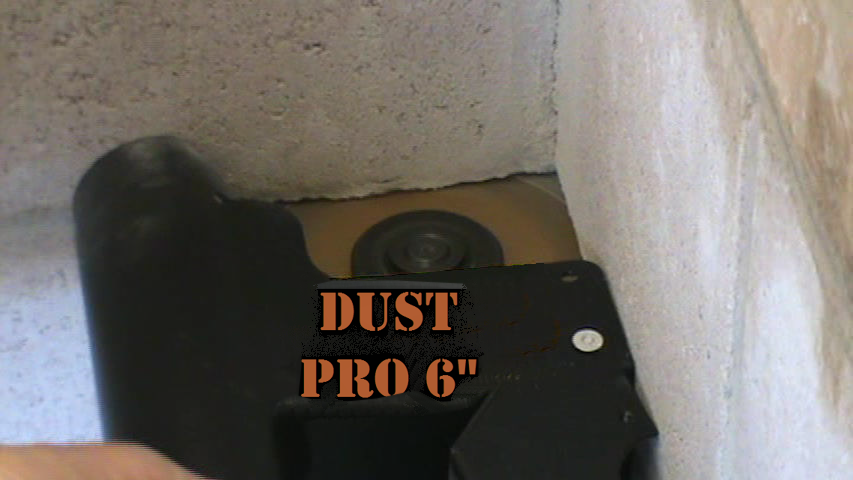

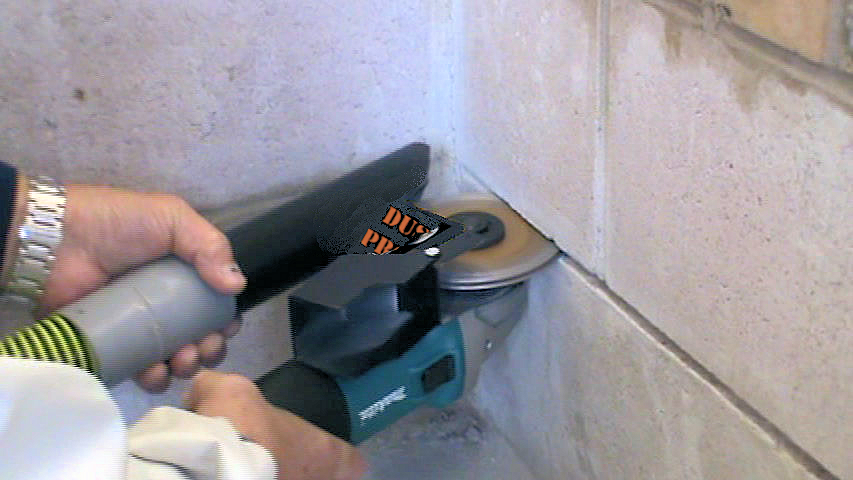

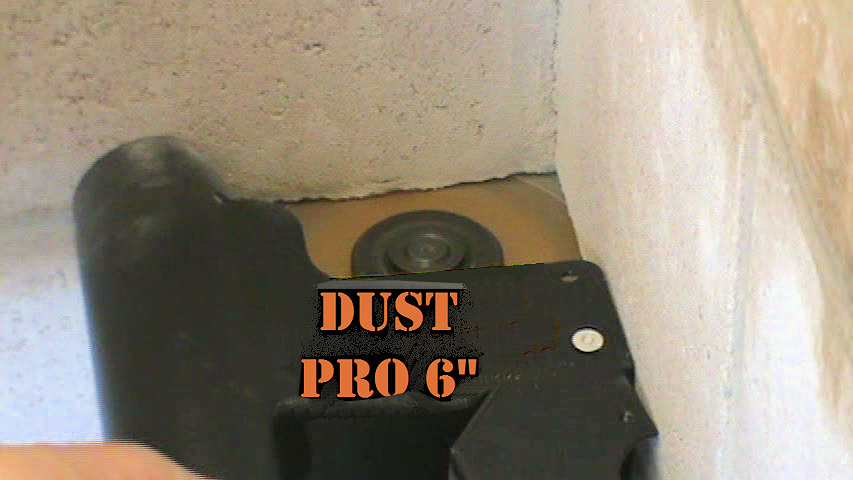

  • CORNER COVER:  opens to cut a wall's inside corner for improved productivity


  • 2" BARREL & HOUSING - prevents chunks of debris from jamming inside the guard and at the hose connection


  • Hose Cuff:  Thread-On x Smooth-End Connectors.Hose Cuffs - various sizes available to fit dust extractors / vacuums.





Good to Compare

Top 9 Check List:  USA Dust Guard vs. Imported Guards



DUST GUARDS MADE IN USA Blade Visibility Material - Made Of Weight * Dust Port
Diameter
*
Blade Capacity Cuts an Inside Wall Corner Universal - Fits Many Brands
Diameter Cutting Depth
USA Dust Guard:  4" - 6" blades, 1-5/8" depth-of-cut. Yes A+ Aircraft Aluminum 1.4 lbs. 2" 6" 1-5/8" Yes Yes
No Limited Metal
2.98 lbs.
1-1/4" 5" 1" No No
No Limited Iron
3.11 lbs.
1-1/4" 6" 1-7/8" No No
No Limited Plastic ? 1-1/4" 6" 1" No No
No Limited Metal 3.0 lbs. 1-1/4" 5" 1" No No
No A+ Iron
2.71 lbs.
2" 6" 1-5/8" Yes No

 * When tuck pointing, besides dust, chunks of mortar routinely break off.  When chunks enter dust shrouds with 1-1/4" dust ports, they clog the air passage and production has to stop to clear the jam.





USA 6" Dust Control Guard, 4" - 6" blade capacity.

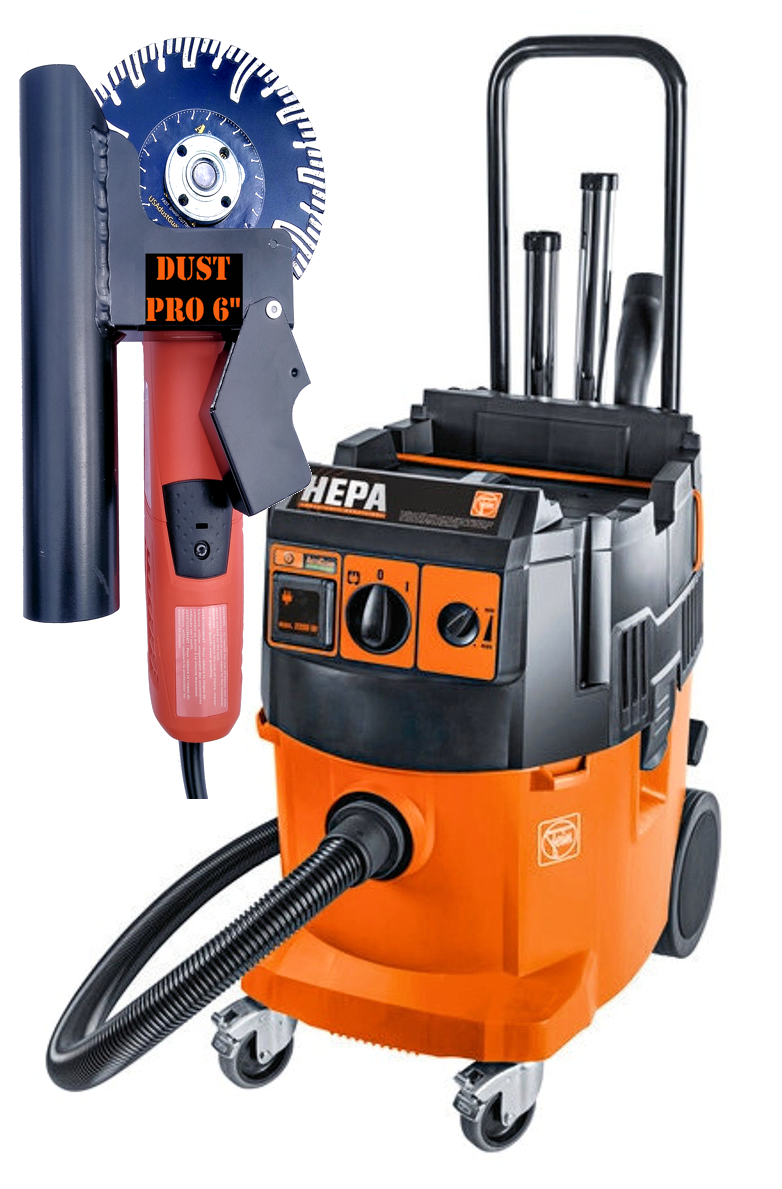

Free Grinder / Vac Packages

Dust Guard, 13A Makita Grinder, (10) Vac Collection Bags

Free --- with Vacuum & (10) Diamond Blade Purchase



Fully Certified HEPA Vacuums

Not Just a Vacuum or a Silica Dust Extractor
"USA" Designed Stay-Clean Filter:  Collect Volumes of Silica Dust
Without Suction Drop     Filter Stays-Clean     Without Using Electronics



OSHA Silica Dust Rule - Vacuum Compliant. USA Dust Guard TP Vac, #TP101 USA Dust Guard TP Vac, #TP131 USA Dust Guard TP Vac, #TP132 Package
Brochure

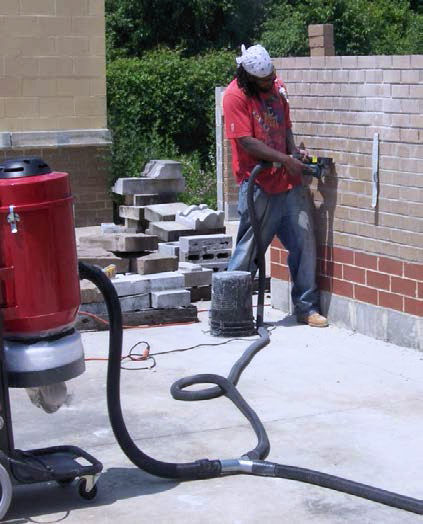

Tuck Pointing Packages

10-125
1-Motor
125 CFM 12 Gal
13-125
1
-Motor
125 CFM 15 Gal
13-250
2-Motor
250 CFM 15 Gal


Package Price:
With Purchase of any
(10) Diamond Blades

Following Prices Include
Vacuum, 6" USA Dust Guard, 13 Amp Makita Grinder, (10) Filter Bags

Diamond Blade Price List

Diamond Blade Price List.

Makita Angle Grinder, 4.5"

$590.00

$790.00

$1,390.00

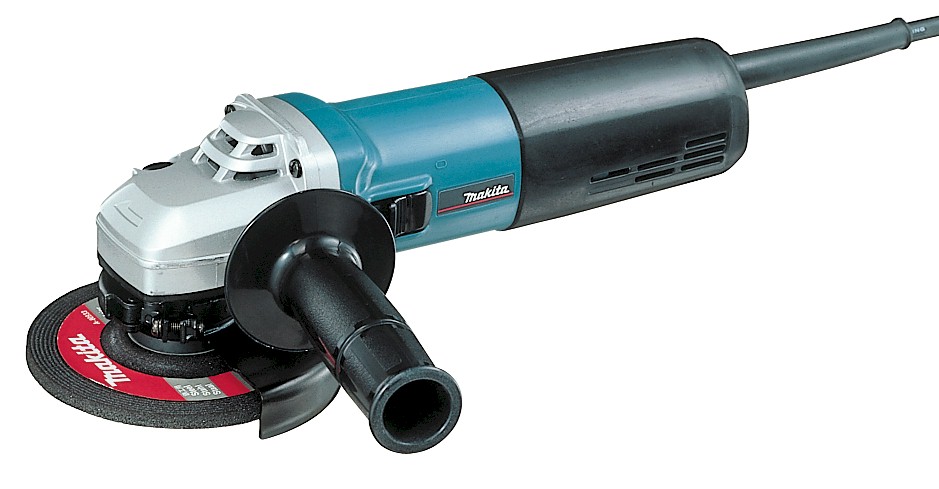

Makita Grinder #9564CV
2800 - 11000 RPM, 13.0 Amp, 4.0 lbs.

See below for Diamond Blade Selection



VACUUM INFORMATION
Perfect Size, Weight & Collection Yield for use on Scaffold.

---  FILTER INFORMATION  ---



OSHA Silica Dust Compliant "Self-Clean / Stay-Clean" Filter
5-Stage “Fail Safe” Filter protects the certified HEPA filter (right) from contamination of incoming debris and the accidental discharge or bypass of dangerous dust from the vacuum.

HEPA Filter Stays Clean — Incredible, Long Filter Life!
--- Collect Volumes of Silica with No Electronics
Self-cleaning USA designed filter constantly sheds, prevents suction drop, protects the HEPA filter from the incoming debris plus the protector filter is washable!



"Fail Safe" Filter System for Scaffold Vacuums



Air Pulse Filter Collection Bags
Vacuums can be used with filter bags (10 included in the package) which are the first filter in the "Fail-Safe" 5-Stage Filter System.  When used, everything stays clean including the Protector Filter (see photo, right.)

Collection of 50 lbs of Mortar in 15 Gallon Tank - Air Pulse Bags keeps the Tank & Dust Dumper Clean!



---  VACUUM SPECIFICATIONS  ---

Models: 10-125 13-125 13-250
Suction Power: 125 CFM, 105" H20, 1000 Watt Motor 250 CFM, 100" H2
800 Watt Motors x 2
2-Motor Vac and a 13 Amp Grinder
Operates Without Tripping a 20 Amp Circuit
Dimensions, Weight: 16" x 16" x 25"
23 lbs.
14.5" x 18.5" x 27"
25 lbs.
14.5" x 18.5" x 32"
35 lbs.
Tank Size, Collection Yield: 12 Gal Poly, Blow Mold
35 lbs. Silica Dust Yield
15 Gal Poly, Rotational Mold
50 lbs. Silica Dust Yield

WELL EQUIPPED
&
- DESIGNED -

  • 12/3 x 50' Power Cord w/ 15 Amp Ground Plug
  • Stay-Clean Filter System
  • Wattage of Motor(s)

All Work Together to Maintain CFM
&
Prevent Excessive Power Consumption
(i.e. Tripped Breakers)

  • 12 gauge x 50' Power Cord with 15 Amp Ground Plug eliminates an extension cord

  • 120V outlet with on/off activation of vacuum’s motor using a power tool (1-motor models)

  • Barb Hose Inlet: fully secures the hose, accepts both 1.5" and 2" hoses (up to 25')

  • Flexible Hose: 10' x 1.5" for 1-motor models, 2" for 2-motor mode

  • Connector: 2" ID soft vinyl cuff for attaching the 6" Dust Guard

  • Four (4) rubber, swivel casters provide superior mobility even with a full tank of dust

  • Steel Clamps: secures the motor head to the tank during handling and transporting.





Diamond Blade Selection

Tuck Point / Vacuum Packages
--- Purchase any (10) diamonds per Vacuum Purchase ---
---  The following are our Best Sellers  ---

Diamond Supreme Laser Welded Segment Blade Turbo Rim + Wave Core for Extra Versatile Cutting and Performance. Black Sandwich Tuck Pointing Blade Diamond Crack Chasing "V" Blade Diamond Glitter Bits, 3 sizes.  Grinds hard mortar.
Concrete, Hard Mortar Concrete, Mortar, Brick Tuck Pointing Crack Chasing Glitter Bits

Our Signature Blade

Chip-Free Cutting Sandwich & Solid V-Blades Detail Grinding
  • General Purpose to XXX-Hard Concrete, Mortar
  • Heavy Aggregate with Reinforced Rebar
  • XXX-Life
  • Extremely Smooth Cutting.
  • Smooth, Chip Free Cutting of XXX-Hard Material
  • XXX-Life.



  • Your choice of any type of tuck pointing blade, sandwich or solid
  • Blades for soft mortar to extremely hard.
  • Follows cracks in concrete
  • Re-Shapes Straight Joints
  • Re-Dresses Existing V-Shaped Joints
  • 1/4" to 3/4" Widths.
  • Finishes what a diamond blade can't
  • Head Joints, Window & Door Brick Returns
  • Grinds Hard Mortar, Flies through Soft Mortar
