Planetary Grinders   >   PG 820 Floor Machine.




Husqvarna Extractors - Self-Cleaning for Silica Dust Extraction

Surface Preparation Machines

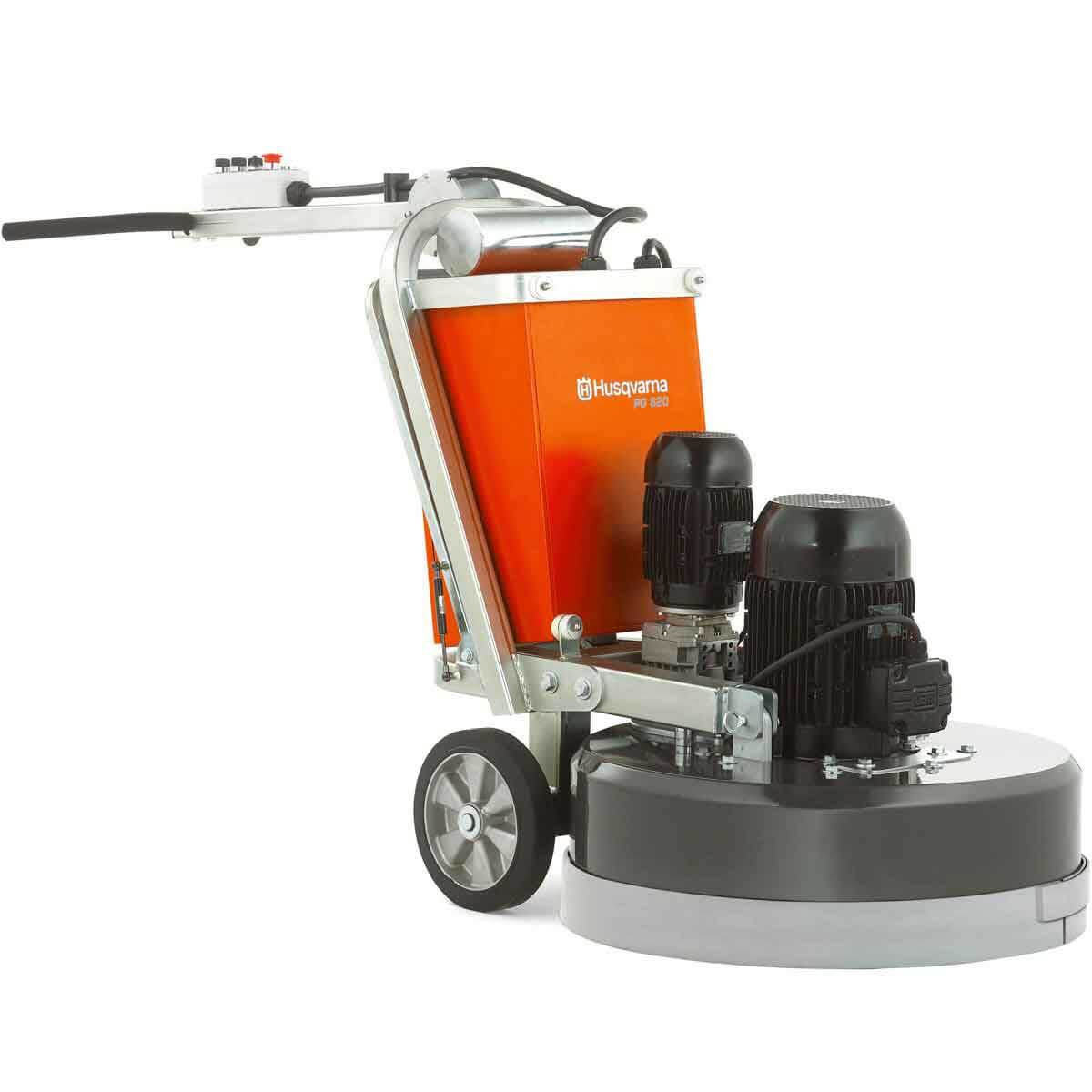

Husqvarna PG 820 Surface Prep Machine.





Husqvarna PG 820 Floor Machine

PG 820 Planetary Grinder
240 & 480 Volt, 32" Grinding Width



Husqvarna PG 820 Planetary Grinder, 32"

Largest in the Husqvarna Range of Surface Preparation & Finishing Machines



$23,295.00            240 Volt Machine, Item No.  965195612

$23,295.00            480 Volt Machine, Item No.  965195613


Overview:
  • Equipped with Dual Drive Technology™ the PG 820 is among the market’s most powerful and efficient machines
  • Included are three Redi Lock Diamond Holder Disc & Dust Skirt
  • Applications range from concrete floor preparation and repair to grinding and polishing of concrete floors, as well as the repair and polishing of terrazzo and other natural stone
  • High power machinery capable of delivering extremely high production rates, increasing profit and saving valuable time
  • Low tool maintenance cost per square foot
  • Dual Drive Technology fully independent control of both planetary and satellite grinding heads in regards to speed and direction of rotation for higher production rates
  • Triple-headed grinder delivers greater downward pressure and power to the grinding heads
  • Long machinery service life due to the 5-way sealing mechanism, the spring steel head system and all zinc plated steel parts
  • Gear-driven planetary head; premium quality belt for powering grinding heads.





Features & Benefits

Best in class
Outstanding productivity and reliability.

High Production Rates
High power machinery capable of delivering high production rates, increasing profit and saving valuable time.

Redi Lock® Diamond Tooling
Redi Lock® is an instant and hassle-free system for changing diamond tooling.  Robust system design ensures maximum protection and life of your diamond tools.


Dual Drive Technology
Dual Drive Technology
– fully independent control of both planetary and satellite grinding heads in regards to speed and direction of rotation.



High Production Rates
High power machinery with Dual Drive Technology
capable of delivering high production rates, increasing profit and saving valuable time.

Strong Durable Design
Robust steel frame and strong single-piece aluminum cover.



Long Service Intervals
With 5-way sealing, spring steel head system and all zinc plated steel parts, service is not needed as often.



Gear-Driven Planetary Head
Gear-driven planetary head, premium quality belt for powering grinding heads.



Stable operation over undulating surfaces
The triple-headed grinder delivers more downward pressure and power to the grinding heads.

Efficient dust management
Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.







 Technical Specifications

PG 820 - 240 Volt PG 680 - 480 Volt
Power, hp 17 17
Voltage 220 - 240 380 - 480
Plug Type L15-50 L16-30
Rated Current, Amps 43 32
UL & CSA Approved --- Yes
Power Supply 3-Phase 3-Phase
Grinding Width, inches 32 32
Grinding Disc, inches 10.5 10.5
Grinding Disc Segment Capacity 18 18
Grinding Pressure, lbs. 737 737
Grinding Disc Speed, RPM 250 - 1,100 250 - 1,100
Direction of Rotation (as viewed from operator's position) FWD / REV FWD / REV
Dimensions (L x W x H), inches 88 x 33 x 80 88 x 33 x 80
Dust Port Size, inches 3 3
Weight, lbs. 970 970
Recommended Generator Size (grinder only), kW 25 25
Recommended Generator Size( when paired with a vacuum), kW 45 45
Recommended Dust Extractor Size, CFM 400+ 400+
