Sealant Removal  |  Abrasives   >   Diamond Blades   >   DiamondX Metal Cut-Off Blades




DiamondX --- Diamond Tools for Demanding Metal-Working Applications.

 Results --- Extremely long blade life:  Outlasts abrasives 30, 50, even 100 to 1!

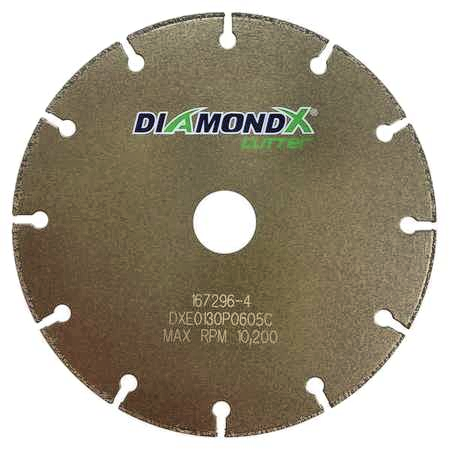

DiamondX - Diamond blade for cutting metal.



Applications - cuts:

  • Hard & Mild Steel

  • Hard Alloy Platings

  • Ductile Iron

  • Rail Track

  • Bar & Tubing

  • Wood, Plastic, Fiberglass, PVC

  • Weld Removal

  • Ceramic, Masonry, Concrete





Tired of Wearing Out & Smelling Abrasives?

  ----  DiamondX is the Answer  ----



For a Better, Faster & Safer Way to Cut Metal

  ----  DiamondX is the Answer  ----











Benefits, Features:

  • ABRASIVES - Have Limitations & Safety Hazards

    • Sparks, Debris, Dust

    • Unpleasant Odor - abrasives are made from hazardous compounds

    • Fast wearing + they lose their cutting depth

    • Vibration, Breakage

    • Respiratory, Eye, Skin, Smell Irritation.

  • DIAMONDX - Uses a Steel Core

    • Precision made - vibration is virtually eliminated

    • Maintains its size throughout the blade's entire life

      • Increases accuracy

      • Dramatically increases productivity

    • Not susceptible to breakage

    • Improves operator comfort and safety

    • Very versatile - designed to cut metal but will also cut most other materials and at the same time.


  • CUTTING SPEED - DiamondX will always beat abrasives which improves productivity

  • MOST IMPORTANT BENEFIT - SAFETY:

    • Major Reduction In:

      • Sparks

      • Debris and dust - only from the material being cut, not from DiamondX

      • Odor - "no notice of odor  when used in a family room to remove a wood burning fireplace"

    • Minimal to no vibration or breakage

  • COST EFFICIENCY -

    • Outlasts abrasives 30, 50 even 100:1 depending on the application

    • Maintains its size for longer hours of increased production

    • Very, very versatile.





DiamondX - Significant less sparks, debris and odor.





DiamondX Video.     Video

Click on the picture to see a 2 minutes video of DiamondX in action.







Pricing, Ordering:



Select the right DiamondX Cutter for your power tool.

DiamondX - Diamond blade for cutting metal.



Versatility and Applications for DiamondX are many:

  • DiamondX is offered in a variety of sizes

  • Providing exceptionally versatility - specifically designed to cut ferrous and non-ferrous metals;  also cuts:

    • tile

    • wood

    • plastics

    • concrete

    • masonry

    • ceramics

    • polymers

    • fiberglass

    • hard alloy platings

    • composite materials, etc.



Part No Size RPM Price 5 Pack

Type 1 Cutter Blades, Small Diameter - Grinders, Circular Saws

DXE0130P0405A 4" x .050 x 5/8" 19,000 $21.25
$85.00
DXE0130P4505C 4.5" x .050 x 7/8" 13,600 $24.00
$96.00
DXE0130P0505C 5" x .050 x 7/8" 12,225 $34.75
$139.00
DXE0130P0605C 6" x .050 x 7/8" 10,200 $42.75
$171.00
DXE0130P0706U 7" x .060 x U/A 8,600 $52.60
$210.00
DXE0130P0906C 9" x .060 x 7/8" 6,600 $72.50
$290.00

Electric, Low Horsepower Chop Saws
- Will outlast [70] 14" abrasive cut-off blades

DXC0120P1413E 14" x .134 x 1"/20MM 4,300 $172.50
----

High Speed Gas Cut-Off Saws, High Power Chop Saws
- Will outlast [70] 14" abrasive cut-off blades

DXH0120P1415E 14" x .155 x 1"/20MM 5,400 $247.50
----

Type 1 Cutter Blades, Large Diameter - Higher Horse Power Saws

DXE0120P1615E 16" x .155 x 1" 24 Grit $491.23
----
DXE0120P1815E 18" x .155 x 1" 24 Grit $555.00
----
DXE0120P2017E 20" x .170 x 1" 24 Grit $712.50
----
DXE0120P2418E 24" x .185 x 1" 24 Grit $1,267.53
----
DXE0120P2618E 26" x .185 x 1" 24 Grit $1,612.55
----
DXE0120P2820E 28" x .200 x 1" 24 Grit $2,047.50
----
DXE0120P3020E 30" x .200 x 1" 24 Grit $2,272.48
----
